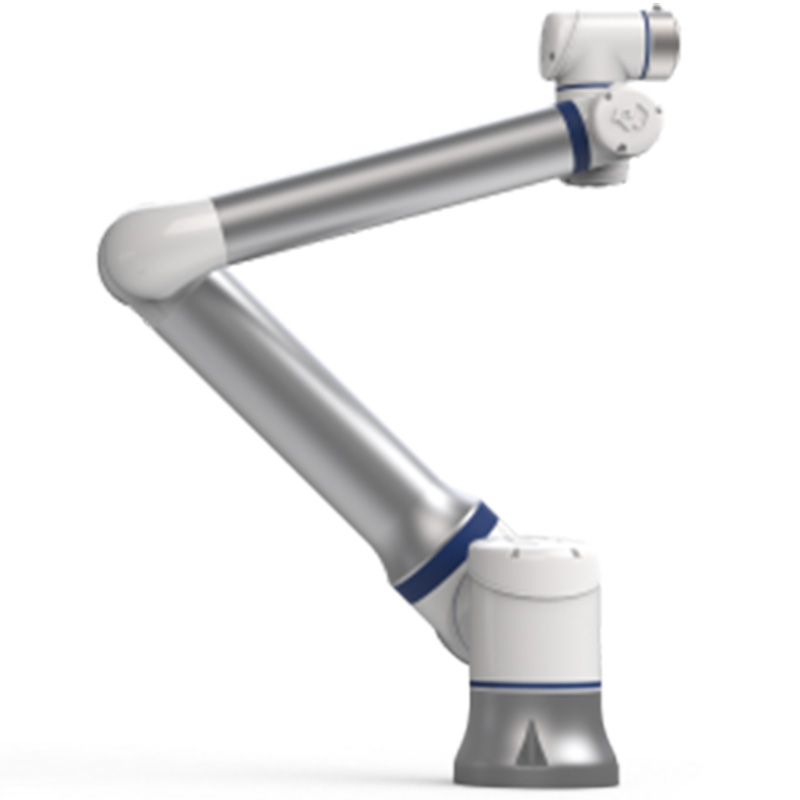

New CS series Elite Collaborative Robot 12kg

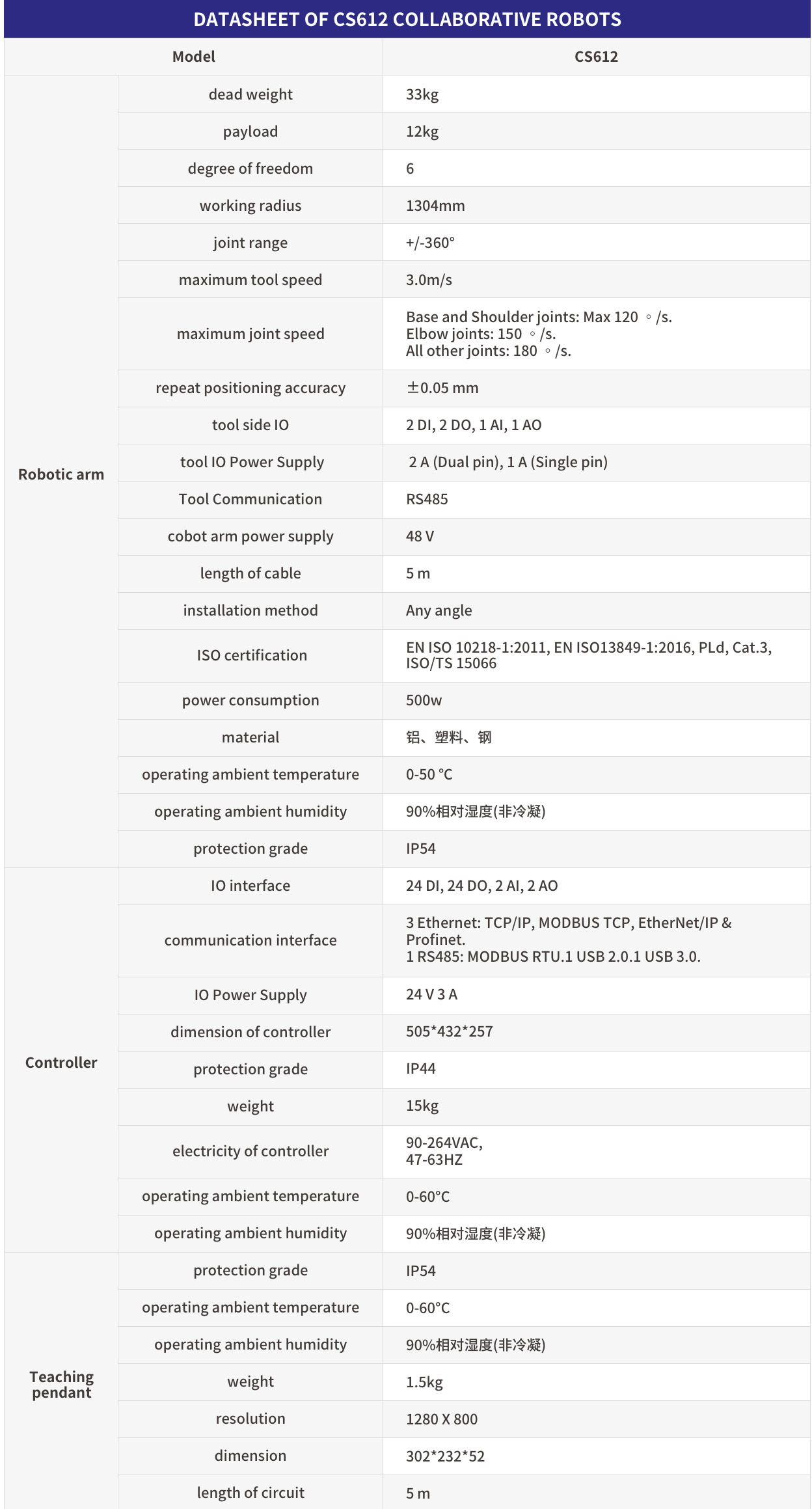

Cobot CS612 Parameters:

Six degrees of freedom, weight 33kg, load 12kg
Working radius 1304mm
Repeat positioning accuracy ±0.05mm
Maximum speed 3.0 m/s
Typical power 500W
Protection grade IP54


  • Item No.:

    CS612
  • Payment:

    FOB/CIF
  • Product origin:

    China
  • Color:

    Grey
  • Shipping port:

    Shen Zhen
  • Lead Time:

    7
  • Product details
New CS Series Collaborative Robots

The two-letter composition of the CS series (Cobot Superior) represents Elite’s future layout of collaborative robot technology, where C is the abbreviation of “Cobot”, and “S” means: Safe, Simple, Advanced, Superior, Sustainable, Scalable and Scalable. These labels are not only the direction that Elite continues to pursue and optimize in collaborative robot technology, but also the attributes that Elite believes that the future of the collaborative robot category must have after the evolution. Incorporating the latest technological achievements to speed up the development of a series of applications, the new generation of CS collaborative robots will become an important step for Elite to accumulate in the future.

cobot

Elite CS series collaborative robot adopts a new lightweight widescreen teach pendant, the user interface has been redesigned, the operation is intuitive, and it supports touch screen control. Based on the understanding of the user’s usage habits, Elite optimized the programming process and simplified the programming steps. It only needs a few clicks on the teach pendant to complete the programming, thereby reducing the user’s learning burden, getting started faster, and helping users Speed up the project development cycle with integrators. Users can fully experience the simple and modern appearance of the CS series, as well as the eye-catching and intuitive icons in the toolbar, making navigation more convenient and smoother to use.

cobot

Safe
18 safety function design, speed, position, power, momentum, etc., refer to ISO13849-1 Cat3 Pld, TS/ISO 15066 design; wrist mechanical design without pinch points;

Simple
Efficient flat, workflow graphical interface; modular program tree programming method; more sensitive drag-and-drop teaching; rich, dynamic and friendly Python script programming; integrated motherboard design, easier to replace joint design (6-10 Minutes), higher maintenance efficiency; one-click software upgrade;

Scalable
Modular software framework, greater scalability; open bottom motion interface; provide stronger third-party plug-in computing power (independent motherboard computing resources), multi-bus communication (Profinet, EthernetIP, ModbusRTU/TCP), status monitoring capabilities (TCP /IP, robot status)

Superior advanced
High-speed system bus frequency (500Hz), more IO ports (control box 24 DI, 24 DO, 2 AI, 2 AO), stronger power drive capability (controller 24V continuous power supply capability 3A, tool end 24V continuous power supply Capability 1.5A, peak 3A), more powerful computing capabilities (independent motherboard computing resources) and stronger communication capabilities (1 Gigabit Ethernet, 2 Fast Ethernet).

Sustainable
Platform-level hardware design, software definition and expansion functions, continuous free upgrades, protection of investment; modular joint reuse, higher operation and maintenance efficiency

elite cobot

Which indicators are fully upgraded?
Elite’s new CS series collaborative robots are based on a brand-new infrastructure and are fully upgraded on the hardware side including the operating interface and programming methods, as well as the teach pendant and the robot body, demonstrating the flexibility of the new generation of collaborative robots And openness, as well as Elit’s latest achievements in man-machine collaborative automation technology. The birth of the CS series aims to help integrators and users reduce the difficulty of using collaborative robots by creating platform-level collaborative robot products, helping integrators and users reduce the difficulty of using collaborative robots, and laying out various applications based on collaborative robots that may occur in the next 3-5 years .

CS612 can automatically handle tasks weighing more than 12 kilograms without loss of accuracy. It is the largest payload robot in the Elit robot series. The working radius reaches 1305mm, so it can perform tasks such as packaging and palletizing in facilities with large distances between different operating areas.
