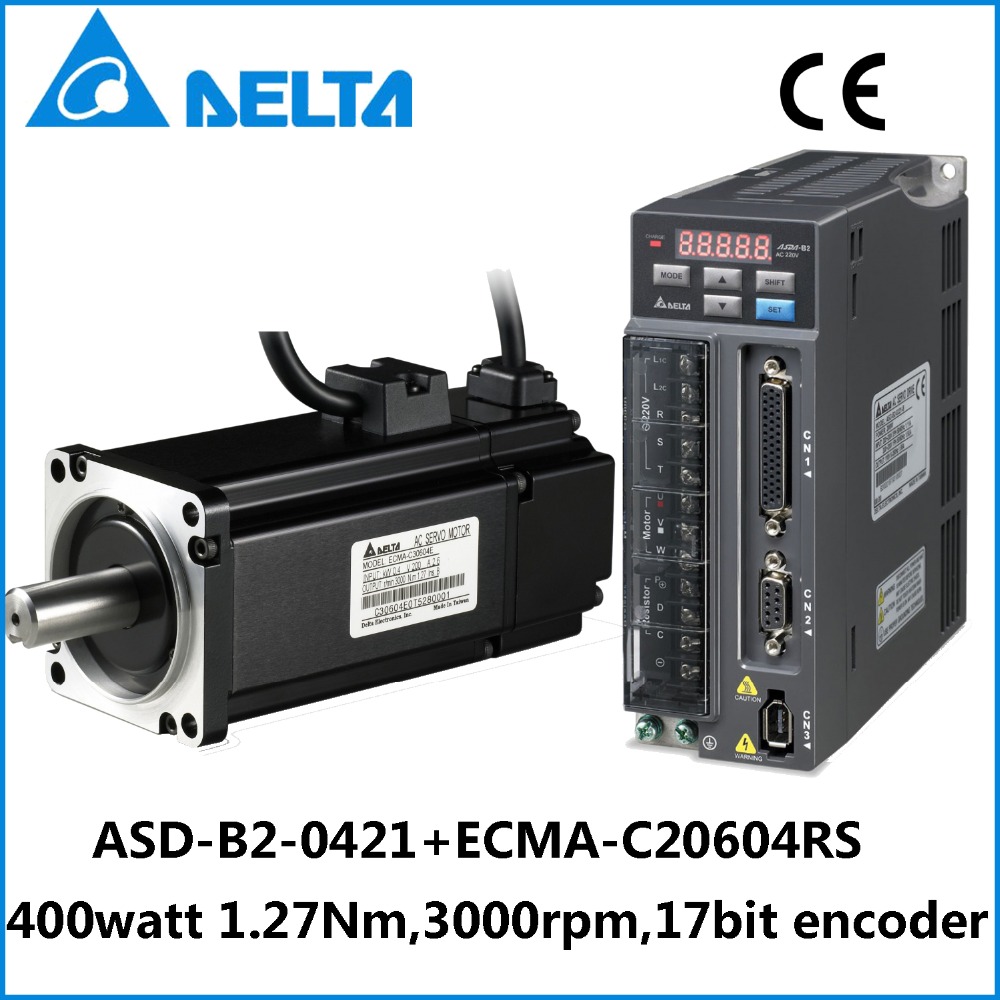

Delta B2 400watt AC Servo motor&driver with 17bit Encoder
The Delta is a servo system for CNC machining / motion control. Lead time is 10–25 days; pricing is quoted per configuration. Certifications: CE documentation on request.
- Model
- Delta
- Category
- CNC & Motion Control
- Lead time
- 10–25 days
What This Platform Is For
TaiWan famous brand servos drives A2 and B2 series Delta B2 400watt AC Servo motor&driver with 17bit encoder is supplied by TROY from Shenzhen with OEM options, documentation and export packing.
Commercial Terms
| Quotation | Priced per configuration — reply within 48 hours |
|---|---|
| Lead time | 10–25 days |
| MOQ | 1 unit |
| Origin | China |
| Port of loading | Shenzhen, China |
| Incoterm | FOB Shenzhen / CIF on request |
| Payment | 30% deposit, 70% before shipment |
| Warranty | 24 months standard, 36 months optional |
Product Details
Application notes, construction drawings and video from the TROY engineering file — the same documentation shipped with the quotation.
Spec. table of Delta Ac Servo Motor
| Model | ECMA-C20602 | ECMA-C20604 | ECMA-C20807 |
| Rated Power | 200w | 400w | 750w |
| Rated Torque | 0.64Nm | 1.27Nm | 2.39Nm |
| Max. Torque | 1.92Nm | 3.82Nm | 7.16Nm |
| Rated speed | 3000rpm | ||
| Max. Speed | 5000rpm | ||
| Rated current | 1.55A | 2.6A | 6.1A |
| Inertia | 0.177 X10^-4kgm^2 | 0.68 X10^-4kgm^2 | 1.13 X10^-4kgm^2 |
| Mechnical constant | 0.8ms | 0.49ms | 0.47ms |
| Weight | 1.2kg | 2.1kg | 3.0kg |
About the Motion Control Product
Motion control is a system decision: controller, drive, motor and encoder have to be matched. TROY supplies CNC controllers, servo drives and stepper systems as matched sets with wiring diagrams and parameter files.
Part of the CNC & Motion Control line, alongside ADT-CNC9620, INV-AM600.
Integration
Retrofits usually hinge on the existing motor and encoder. Send the machine model and axis count and we confirm compatibility before anything ships.
Typical duty: CNC machining, Motion control, Retrofits, Automation.
What to Send Us
To quote this motion control product we need the machine model, axis count, existing motor and encoder type, and the fieldbus in use. Send them once and the answer comes back as a priced proposal, not a brochure.
Ordering and Delivery
Price is quoted against your specification — send the requirement and we reply with a band. Lead time is 10–25 days for a standard configuration, confirmed at order. Minimum order is 1 unit. Terms are FOB Shenzhen unless CIF is required; payment is 30% with the order and the balance before shipment. Each unit ships with its test record and a 24-month warranty, extendable to 36 months.
Manual and Catalogue Downloads
Original PDFs published on this product line — open or save directly, no form.
- TROY Delta Robots CatalogCatalogue · PDF 2.1 MB · 11 pages
- TR series of 2 Axis of Delta Robot CatalogCatalogue · PDF 5.1 MB · 11 pages · Chinese edition
Full Technical Data
| Model | Delta |
|---|---|
| Category | CNC & Motion Control |
| Lead time | 10–25 days |
Values are nominal at 20 °C. Download the datasheet for cad models, torque curves and controller I/O maps.
Where It Runs
Sized and commissioned by TROY engineers.
Sized and commissioned by TROY engineers.
Sized and commissioned by TROY engineers.
Sized and commissioned by TROY engineers.
Buyer Questions
What are the key specifications of the Delta?
Model Delta. A full datasheet is available on request.
What is the lead time and MOQ for the Delta?
Lead time is 10–25 days; MOQ is 1 unit.
How is the Delta priced?
Pricing is quoted per configuration, including tooling and freight where applicable.
Get a Priced Proposal for Delta
Include the part, target rate and destination port. An engineer — not a chatbot — replies within 48 hours.
