Item No.:
TRP-S1Payment:
FOB / CIFProduct origin:
ChinaShipping port:
ShenZhenLead Time:
7Min order:
10

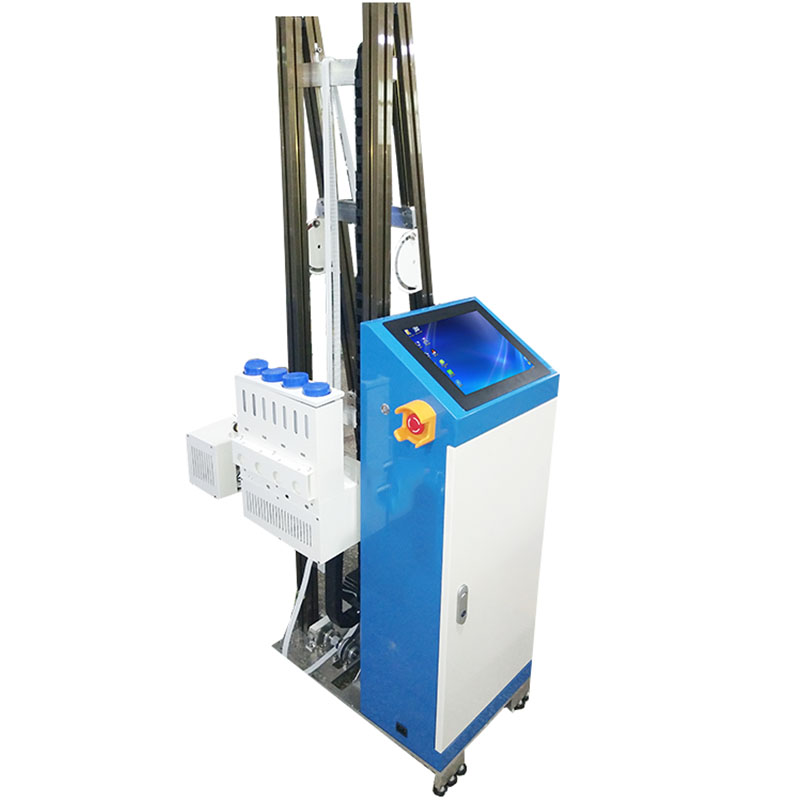

TRP-S1 Wall Printer Specifications |
|||
Equipment model |
TRP-S1 (folded industrial) |
|
|
Printing software |
Genuine professional printing software |
||
Using ink |
Special environmental protection organic water-based ink (waterproof, anti stripping) |
||
Control mode |
Wired / wireless printing |
||
Transportation |
(foldable) |
||
Power consumption |
No load 20W, maximum 25ow |
||
Surface tracking |
Hyperbolic banner sensor, up and down bidirectional induction |
||
Ink supply system |
Positive pressure system single color single supply, 4-color ink bin one body |
||
Print size |
2.5Height × width, more than 2 meters can be seamless splicing |
||
Construction noise |
Standby < 20dBA, drawing < 70dba |
||
Supporting pictures |
Photos taken by mobile phone / camera and Internet |
||
Power requirements |
Household electricity: 220 VAC or 380 VAC |
|
|
Applicable media |
White Wall, LATEX PAINT WALL, Shell powder wall, ceramic tile, glass KT board |
||
Format of national film |
includePSD.CDR, JPG, JPEG, PNG, BMP, tiff, EPS, AI and PDF |
||
Color drawing technology |
Micro piezoelectricity spray technology, variable ink drop, high tolerance error emerging technology, automatic memory recovery technology for construction interruption |
||
Print Resolution |
360x720dpi/720x1080dpi/720x1440dpi/1080x1440dpi/1440x2880dpi |
||
Operating environment |
-20 ° c-50 ° C (- 4f-122f), 10% - 70% relative humidity, non condensing state |
||
Storage environment |
-21c-5o ° C (- 22f-140 ° f), 10% - 70% relative humidity, non condensing state |
||
operating platform |
Windows xP/7/8/9/10 |
||
Certification qualification |
Green environmental protection certification, national standard test qualified (GB 18582-2001, gbt9756-2001), CE certification |
||
print mode |
PASS |
M2 / h (M '/ h) |
|
Fast mode |
A |
15 |
|
Production mode |
B |
10 |
|
Quality model |
C |
7 |
HD mode |
D |
5 |
|
External dimension |
Machine scale mm); length 70ox width 300X height 2600 |
Package size (mm): length 800X width 460x height 2700 |
|
Machine weight |
Machine 60kg (fuselage 30kg + 3 guide rails 30kg) |
Packing weight 115KG in wooden case |
|
Key components |
|||
Nozzle specification |
Epson 10 generation high precision printing nozzle 2 |
electric machinery |
3Imported intelligent servo motor + reducer |
Main board |
8Core high speed CPU,
4GB memory, high speed USB |
Wall detection |
2Nano distance detectors |
level |
Imported precision level |
Power failure alarm |
Real time power failure alarm system |
UPS power supply |
Super uninterruptible power supply with 3 hours of power failure |
Laser positioning |
Precise infrared laser positioning system |
Shaft guide |
High strength precision railway track, 4 sections, 1.5m, 6m in total |
Shaft guide |
Imported linear drive module |
Ink supply technology |
Positive pressure system ink supply, need to draw ink |
Gift Gallery |
Free 2T Library |
Machine language |
Chinese / English (other languages can be customized) |
||
Note: the above parameters are design parameters. In case of any difference, the actual use efficiency of the equipment shall prevail. |
