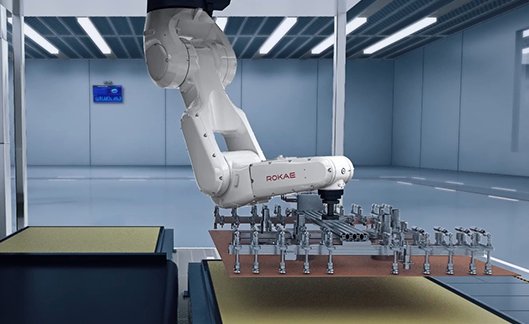

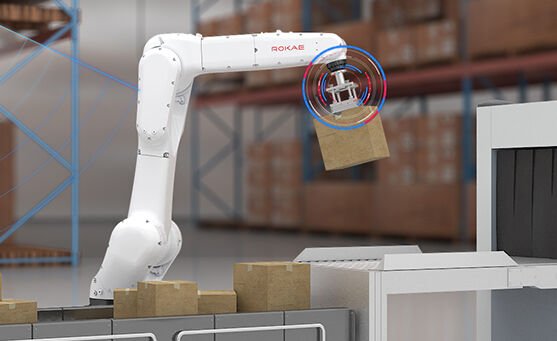

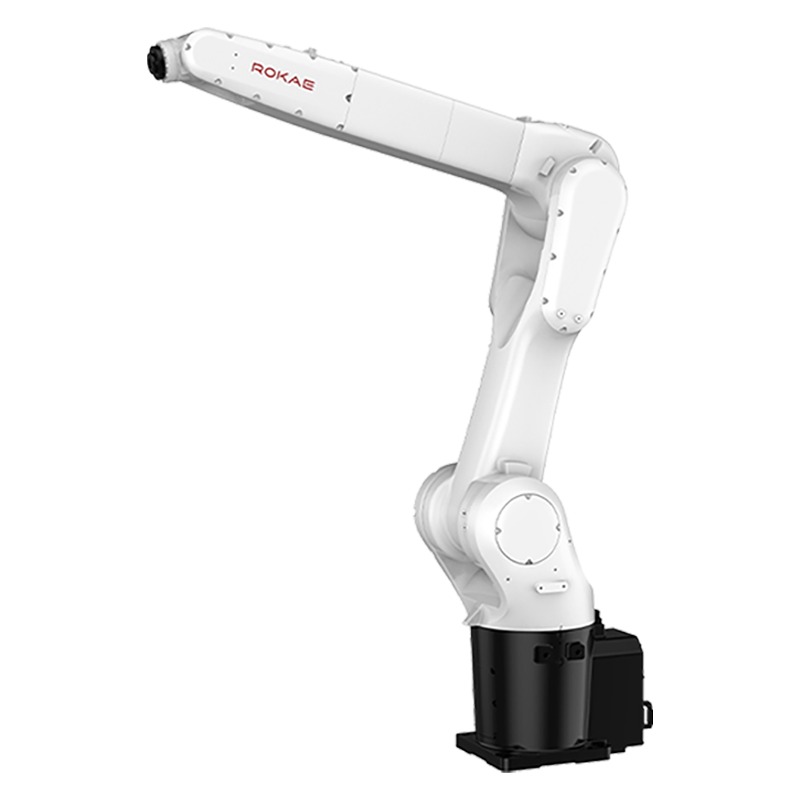

ROKAE NB12 Series 6-axis industrial robot: 10 kg payload, 1602 mm reach, repeatability ±0.03 mm, IP rating IP67, AC servo drive, 6 DOF.
Applications: loading/unloading, deburring, gluing, assembly, inspection, sorting, handling, palletizing.
Brand:
TROYItem No.:
NB12Payment:
T/T, L/CProduct origin:
ChinaColor:
whiteShipping port:
ShenZhenLead Time:
30
TEL: +86-4000988557;
Teams: gfreex@hotmail.com;
WeChat: Troysupply_com;
QQ ID: 8936906.
| Payload | 10 kg |
| Weight | About 117 kg |
| Reach | 1602 mm |
| DOF | 6 |
| IP Rating | IP67 |
| Drive Mode | AC servo |
| Repeatability | ±0.03 mm |
| OperatingTemperature | 0℃~+45℃ |
| StorageTemperature | -10℃ to +55℃ |
| Noise Level | ≤75 dB(A) |
| AIR | 1*φ8+2*φ6, 8bar |
| Signal | 24 channels(30V, 0.5A) |
| MountingMethod | Floor, Ceiling |
| Axis | Range of Motion | Maximum Speed |
| Axis 1 | -170° to +170° | 245°/s |
| Axis 2 | -105° to +145° | 245°/s |
| Axis 3 | -210° to +70° | 290°/s |
| Axis 4 | -200° to +200° | 435°/s |
| Axis 5 | -135° to +135° | 450°/s |
| Axis 6 | -360° to +360° | 705°/s |
Leave a message
ROKAE NB4 Series 6-axis industrial robot: 4 kg payload, 580 mm reach, repeatability ±0.02 mm, IP rating IP67, AC servo drive, 6 DOF. Applications: loading/unloading, deburring, gluing, assembly, inspection, sorting, handling, palletizing.
ROKAE XB7 Series 6-axis industrial robot: 7 kg payload, 906 mm reach, repeatability ±0.03 mm, IP rating IP67, AC servo drive, 6 DOF. Applications: loading/unloading, deburring, gluing, assembly, inspection, sorting, handling, palletizing.
ROKAE NB12H Series 6-axis industrial robot: 10 kg payload, 1648 mm reach, repeatability ±0.02 mm, IP rating IP65(Wrist IP67), AC servo drive, 6 DOF. Applications: loading/unloading, deburring, gluing, assembly, inspection, sorting, handling, palletizing.
ROKAE NB25 Series 6-axis industrial robot: 20 kg payload, 2013 mm reach, repeatability ±0.05 mm, IP rating IP65(Wrist IP67), AC servo drive, 6 DOF. Applications: loading/unloading, deburring, gluing, assembly, inspection, sorting, handling, palletizing.
ROKAE NB25H Series 6-axis industrial robot: 12 kg payload, 2258 mm reach, repeatability ±0.03 mm, IP rating IP65(Wrist IP67), AC servo drive, 6 DOF. Applications: loading/unloading, deburring, gluing, assembly, inspection, sorting, handling, palletizing.
ROKAE NB80 Series 6-axis industrial robot: 80 kg payload, 2200 mm reach, repeatability ±0.06 mm, IP rating IP65(Wrist IP67), AC servo drive, 6 DOF. Applications: loading/unloading, deburring, gluing, assembly, inspection, sorting, handling, palletizing.
ROKAE NB220 Series 6-axis industrial robot: 150 kg payload, 3201 mm reach, repeatability ±0.08 mm, IP rating IP65(Wrist IP67), AC servo drive, 6 DOF. Applications: loading/unloading, deburring, gluing, assembly, inspection, sorting, handling, palletizing.
ADTECH 4 axis SCARA robot arm with high performance and excellent precision.
Industrial robot manufacturer in China with cheap price ADTECH FR5215 system 5500mm arm length 4 axis hoisting scara robot with AVS vision system. ADTECH is professional in 4-axis Scara robot R&D, producing and service. For reduce products people cost. More and more robot is used on production line.ADTECH scara robot can replace NACHI,TOSHIBA,etc. Japan brand, It is application for PCBA assembly,screwing loading,packing,etc electrical field.
OEM Scara Robots are designed for the factory with electric components assembling such as Samsung, Foxconn, LG and Canon etc.
Features Easy operation Best configuration with high performance Long arm length suitable for wide places Max payload 10kgs Fast speed with 0.43S cycle time High precision up to ±0.015mm
TR600B four axis SCARA industrial robot The robot is a multi-joint four-axis robot with complete independent property rights. It adopts a high-performance controller to control the robot to achieve high-speed point motion, spatial linear interpolation motion, spatial arc interpolation and other functions. It is suitable for transportation, Various industrial occasions such as loading and unloading, spot welding, gluing, etc.
Metal processing industry: blanking on punching machines, CNC loading and unloading, workpiece grinding, deburring; Electronic products industry: assembly, IC chip testing and handling, spot welding, PCBA soldering, glue application, screwing, plug-in, workpiece polishing; Automobile and motorcycle parts industry: handling, gluing, spot welding; LCD/LED and glass industry: handling of glass plates, assembly of LCM modules, handling of silicon wafers and display screens; Laser industry: spot welding, cutting; Home appliance industry: assembly, handling and screwing of home appliance products; Research areas: student teaching, school research and development.
TR800B four axis SCARA industrial Robot: The robot is a multi-joint four-axis robot with complete independent property rights of LBD. It uses a high-performance controller to control the robot to achieve high-speed point motion, spatial linear interpolation motion, spatial arc interpolation and other functions. It is suitable for handling, loading and unloading. , Spot welding, gluing and other industrial occasions.
The SCARA multi-joint manipulator belongs to the company's high-precision, high-speed, and high-performance robots. This product is mainly aimed at the application of robot lock screws in the 3C industry. This product is developed based on the previously developed SCARA robot body with 600 arm lengths. A special non-standard robot for locking screws with visual positioning function.
Yaskawa Scara Robot SOC series: The MOTOMAN-SOC series is a SCARA robot specially built for high-speed operations. It is suitable for various scenarios such as assembly, transportation, packing, sorting, and inspection of small parts.
