TROY Intelligent
Products
Home /Industrial Robot /

Welding Robot

/Best 6 axis welding robot in China 1850mm working radius warranty longer than abb kuka yaskawa

Best 6 axis welding robot in China 1850mm working radius warranty longer than abb kuka yaskawa

MIG/TIG welding robot can be worked as radius on 1850mm, suitable for chairs or furnitures welding !
  • Item No.:

    TR1006A-185M
  • Payment:

    FOB CIF EXW
  • Product origin:

    China
  • Color:

    Orange
  • Shipping port:

    ShenZhen ports
  • Lead Time:

    20 days
  • Product details

Product introduction:

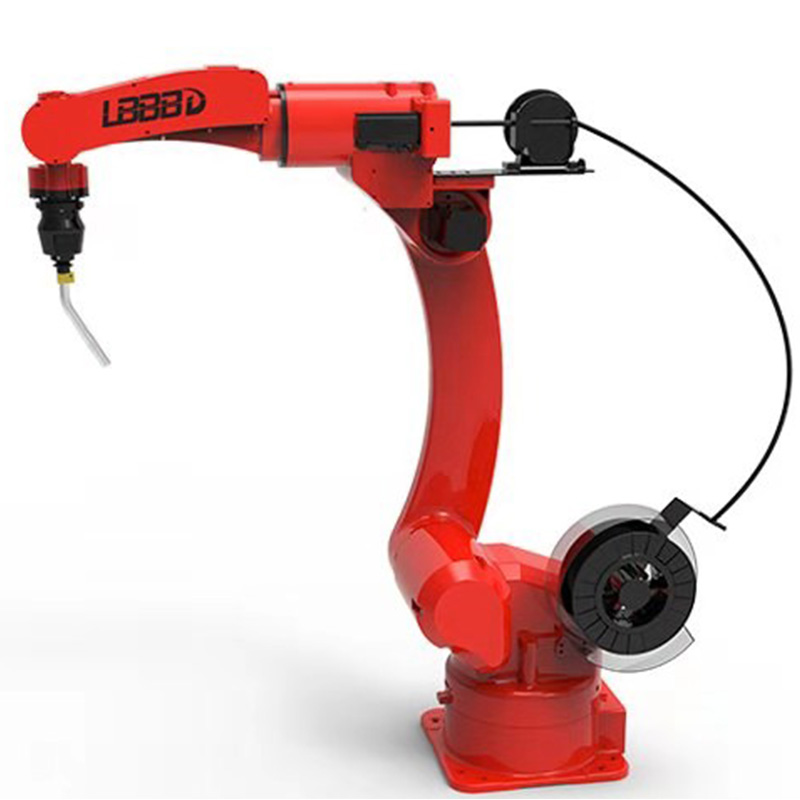

TR series welding industrial robots are compact in size, small in size and light in weight. They are dedicated arc welding robots that can achieve stable welding, obtain high-precision welding paths, shorten welding cycles, and extend the life of pipe fittings and cables. At the same time, the TR series welding robot can flexibly perform welding operations in a narrow space, and can easily choose floor installation, hanging installation, and inverted installation.

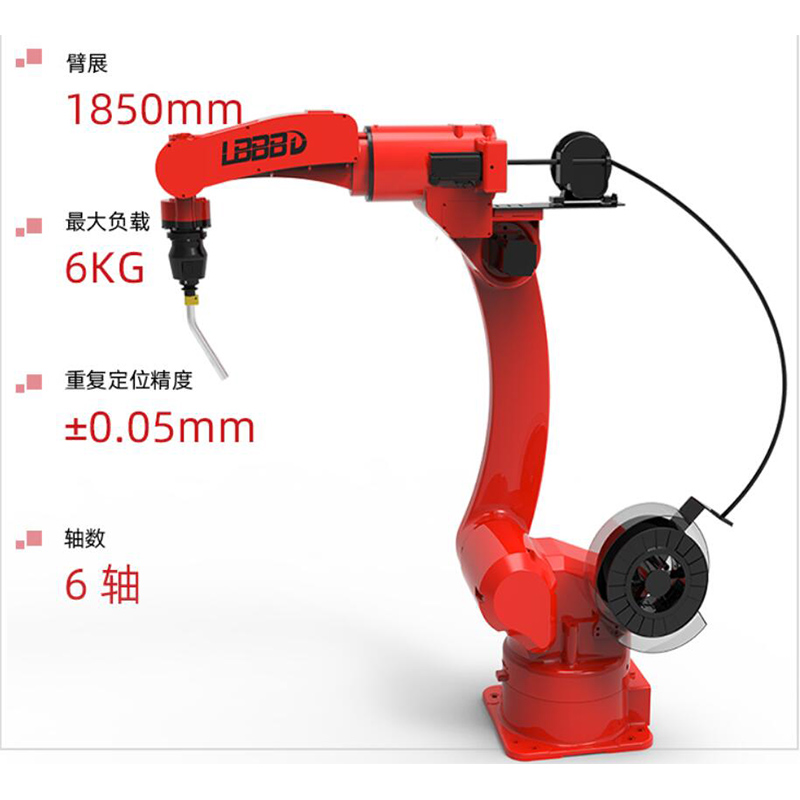

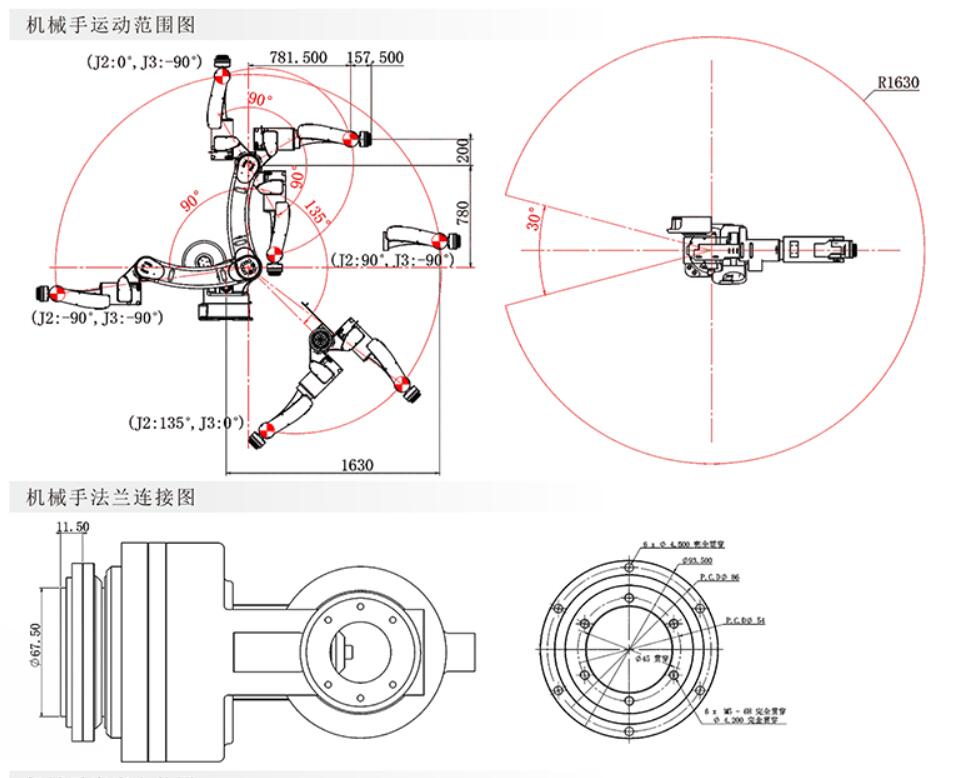

Robot features: wrist load is 6Kg, maximum radius is 1850mm.

Features:
Large working space
Light weight
Fast running speed
High repeat positioning accuracy
Strong welding stability
