/Industrial 4 axis SCARA robot 3kg payload 400mm working radius

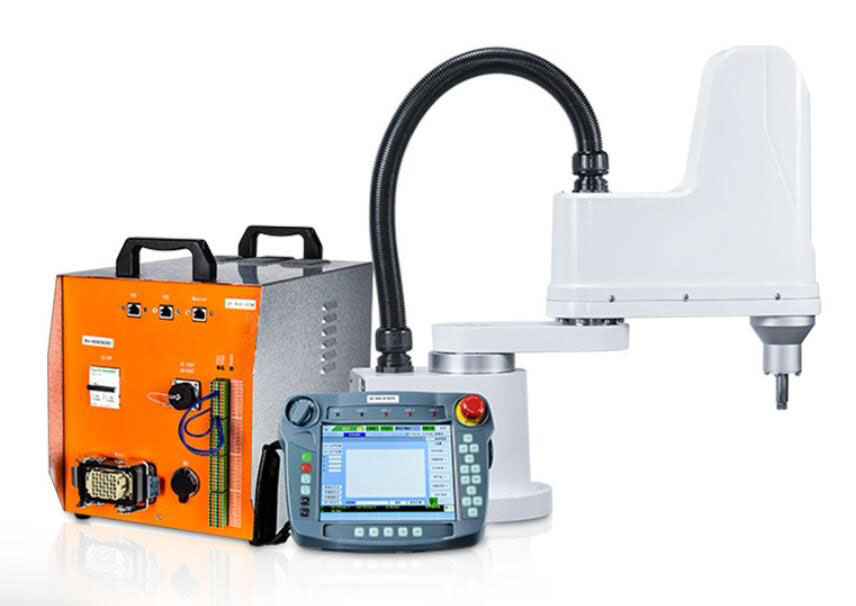

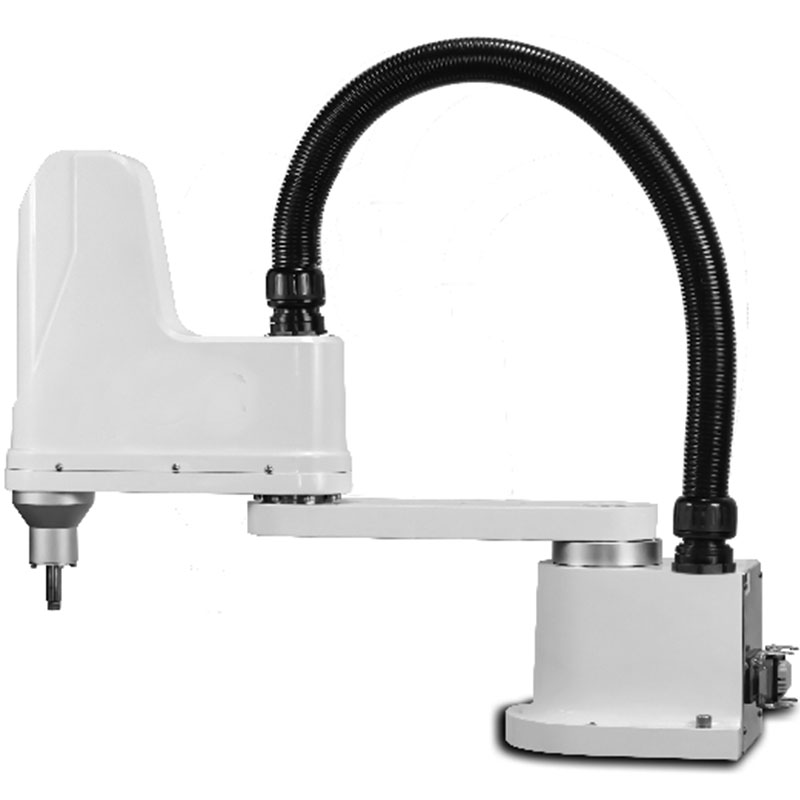

Industrial 4 axis SCARA robot 3kg payload 400mm working radius

The SCARA multi-joint manipulator belongs to the company's high-precision, high-speed, and high-performance robots. This product is mainly aimed at the application of robot lock screws in the 3C industry. This product is developed based on the previously developed SCARA robot body with 600 arm lengths. A special non-standard robot for locking screws with visual positioning function.
  • Item No.:

    TRT-S400
  • Payment:

    FOB
  • Product origin:

    China
  • Color:

    White.
  • Shipping port:

    Shen Zhen
  • Lead Time:

    15
  • Min order:

    5
  • Product details

Product Advantages:

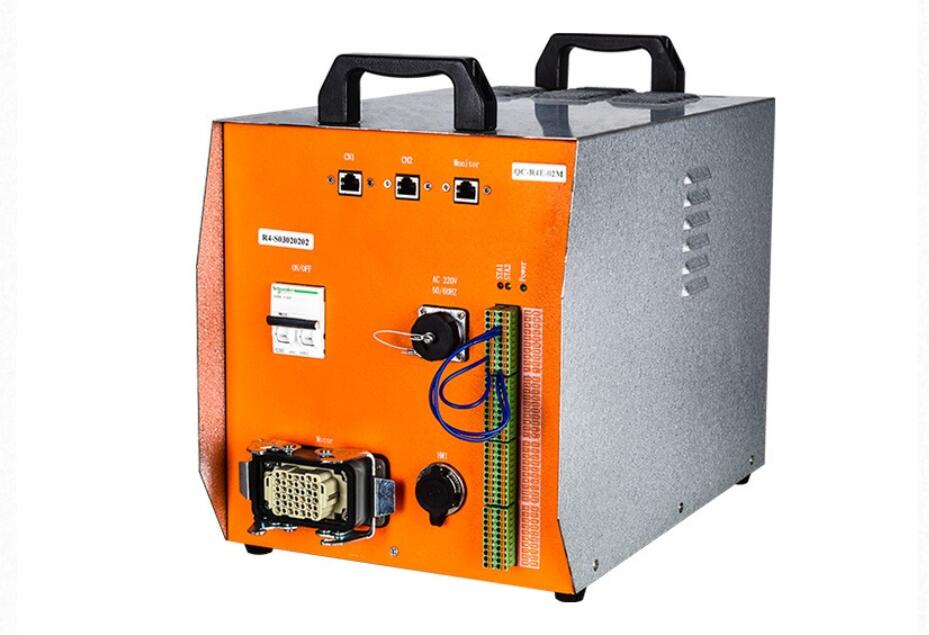

1. High configuration accessories: Japanese Tamagawa encoder, Han's harmonic reducer, Huacheng industrial control card + manual screen

2. The specially developed multi-joint manipulator program makes the setting easier and the operation more convenient;

3. Fast moving speed, high positioning accuracy, flexible use under the space occupied by the equipment;

4. Mass production, strict production and testing procedures, strong consistency and quality assurance;

5. Free warranty within one year, no worries after purchase and use.


Product Specifications:

Model

TRT-S400

TRT-S500

TRT-S600

Degree of freedom

4

4

4

Arm span

400

500

600

Size (MM)

L

450

600

650

W

600

600

600

H

600

600

600

Load (KG)

Rated

2kg

2kg

2kg

maximum

3kg

3kg

3kg

power supply

Voltage (v)

220

220

220

Frequency (HZ)

50

50

50

Power (KW)

1

1

1

Stroke (mm)

X

-125°~125°

-125°~125°

-125°~125°

Y

-140°~140°

-140°~140°

-140°~140°

Z

~150~0

~150~0

~150~0

U

-360°~360°

-360°~360°

-360°~360°

Environmental conditions

Temperature ()

10-50

10-50

10-50

Humidity (%RH)

40~50

40~50

40~50

Repeat positioning accuracy (mm)

X

0.02

0.02

0.02

Y

0.02

0.02

0.02

Z

0.03

0.03

0.03

U

0.01°

0.01°

0.01°

Noise (db)

<60db

<60db

<60db

Gross, Weight (kg)

20kg

22kg

22.5kg
