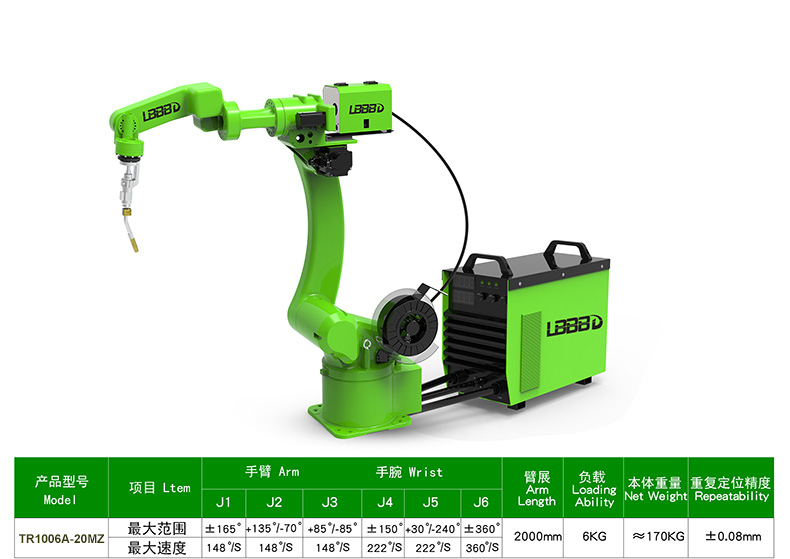

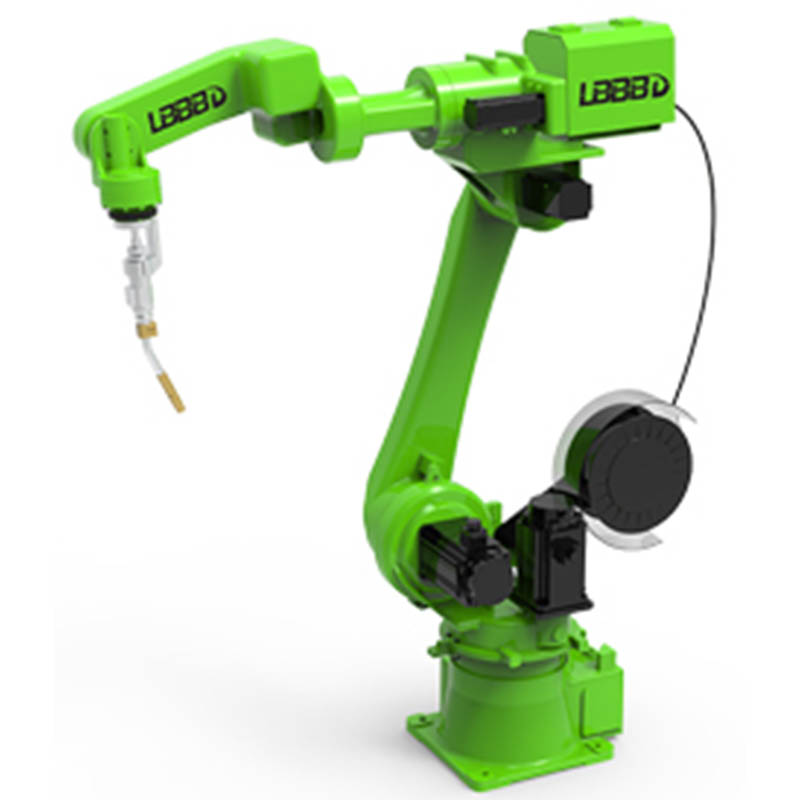

China top brand of 2000mm working radius mig welding robot

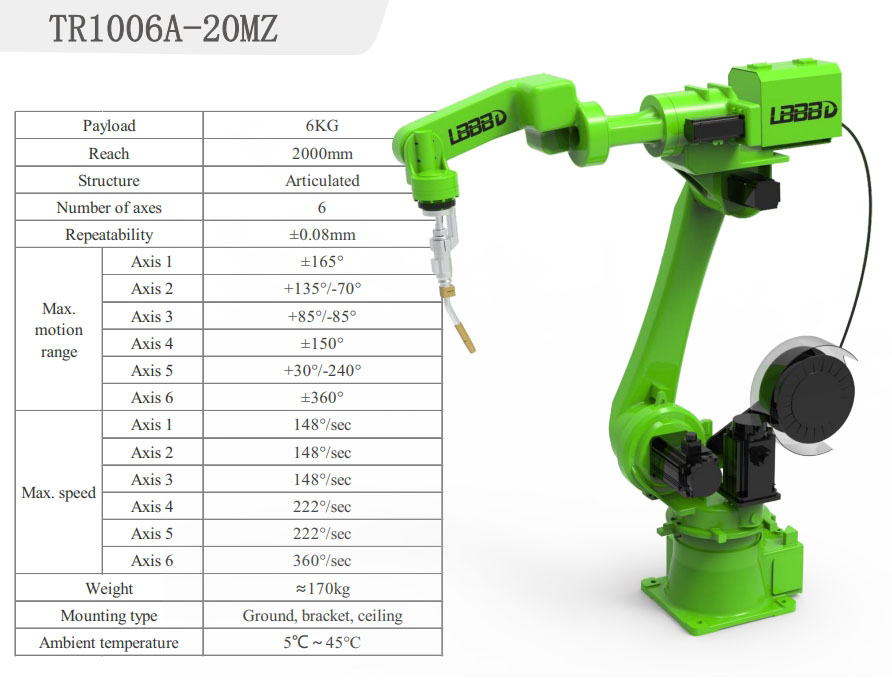

【Model】TR1006A-20MZ
【Action type】Multi-joint type
【Rated load】6kg

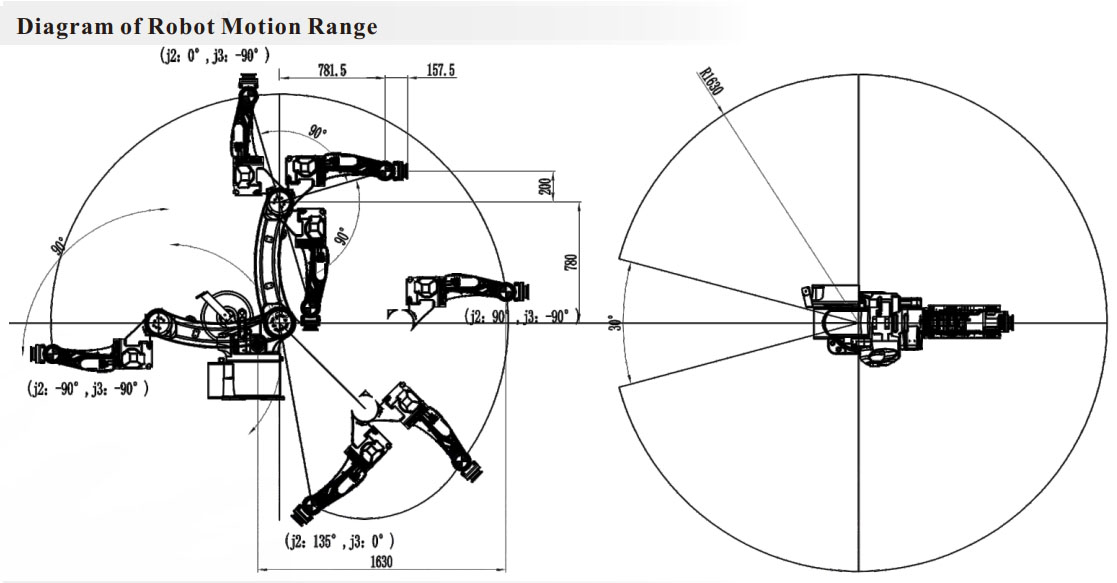

【Motion radius】2000mm
【Weight】170kg
【Number of axes】6 axes
  • Item No.:

    TR1006A-20MZ
  • Payment:

    EXW, FOB, CIF.
  • Product origin:

    China
  • Color:

    Green
  • Shipping port:

    ShenZhen
  • Lead Time:

    15
  • Product details

mig welding robot

MIG Welding Robot Features:


The wingspan is nearly 2 meters. The highly compact design offers the flexibility to choose floor or inverted installation.

Large working space, fast running speed and high repeatability, it is suitable for welding applications and has a wide range of applications.

Equipped with a safety emergency stop board independent of the control system, using a safety relay circuit, providing double-circuit emergency stop externally to ensure the reliability of emergency stop.

The main body cable adopts high-flexible robot special cable.

Built-in three-phase transformer, 380V and 220V are isolated, and the power supply is more stable. Built-in three-phase filter can effectively improve EMC and EMI performance.

The body provides dual-circuit air pipes to meet the needs of welding.

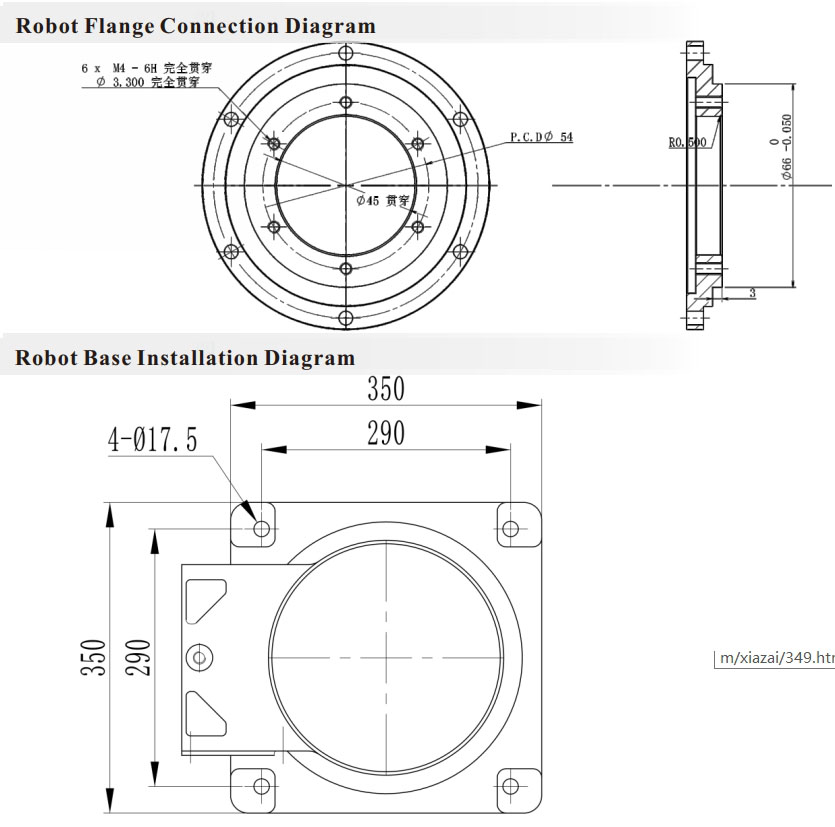

The inner diameter of the middle hole of the 6-axis is 44mm, which can meet the installation requirements of water-cooled guns and bellows guns.

Built-in high-flex welding cable.

mig welding robot

mig welding robot

mig welding robot

mig welding robot
