ADTECH Scara Robot ADT-6520 Corresponding To EPSON LS6

ADTECH 4 axis SCARA robot arm with high performance and excellent precision.
  • Item No.:

    AR6520
  • Payment:

    FOB
  • Product origin:

    China
  • Shipping port:

    ShenZhen ports
  • Lead Time:

    15 days
  • Product details

Industrial 4.0, New area we will face.


ADTECH is a professional 4-axis Scara industrial robot arm supplier since 2008. we have professional R&D engineers and modernization production line for robotics industrial production.

In the new area, Industrial robot will reduce your factory labor cost and leave some repeated and inconvenient work to the robots. More and more robot is used on production line at this time. ADTECH scara robot can perfectly compete with NACHI,TOSHIBA and some other famous brands , It is applied for 3C assembly,screwing, loading,packing and some other applications.


20170804103157_59624

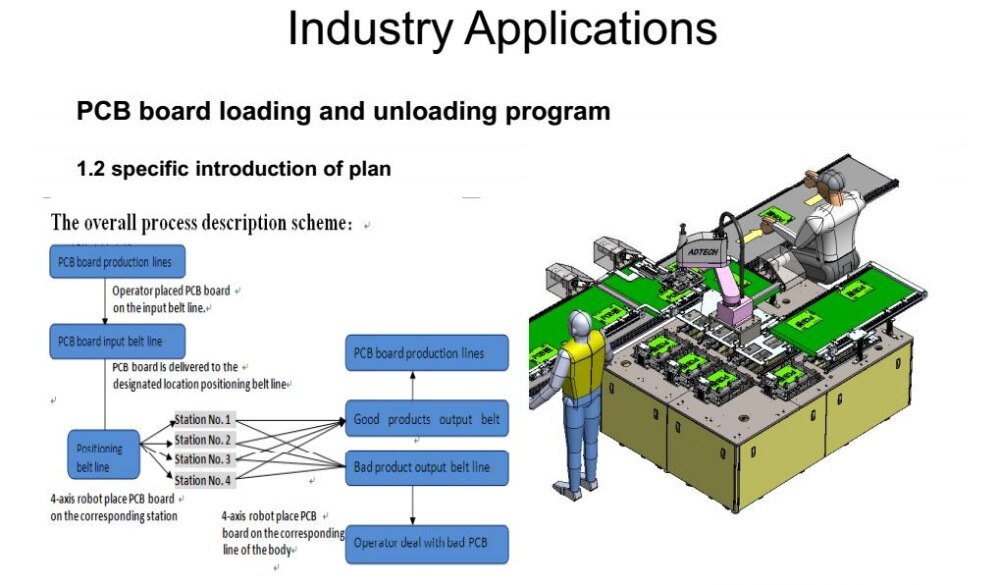

ADTECH is professional in 4-axis Scara robot R&D, producing and service. For reduce products people cost. More and more robot is used on production line.ADTECH scara robot can replace NACHI,TOSHIBA,etc. Japan brand, It is application for PCBA assembly,screwing loading,packing,etc electrical field.

AR series robot compact structure, flexible, fast, high transmission precision, low noise;

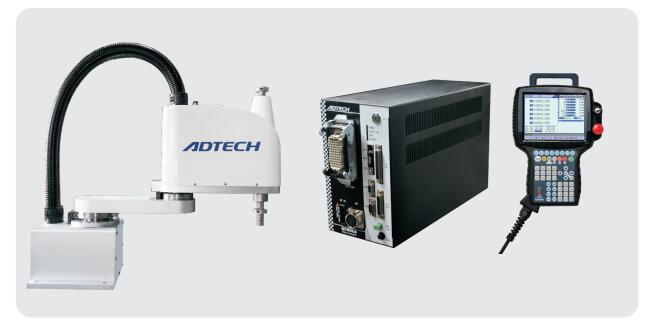

Adtech drive control with integrated controller RC400, supports a variety of communication port, network, USB and so on.


With multi-axis linear interpolation, 3D space circular interpolation, follow the track, smooth acceleration and deceleration, continuous trajectory speed adaptive function, spline teach, vibration suppression, and other advanced features that make AR series SCARA robot meet all kinds of applications occasions.

20170804103737_12326

Product characteristics:

Run fast

High repeat positioning accuracy

Large load

Little noise

Light weight

Good rigidity

Applications


Sorting,Stacking,Plug-in,Loading and unloading,Transport,Gumming,Labeling,Assembly and so on


Technical Parameters

Model: ADT-AR6520

Type: Scara robot

Number axis: four axis

Arm length600mm

Axis specification:

X axis Arm length: 300mm

Rotation range: ±130°

Y axis Arm length: 300mm

Rotation range: ±140°

Z axis Itinerary: 200mm

R axis Rotation range: ±360°

Highest speed

X axis: 375°/S

Y axis: 600°/S

X, Y-axis synthesis: 7.1m/s

Z axis: 1.1m/s

R axis: 1500°/s

Standard Cycle Time: 0.6s

Repeat positioning accuracy

X, Y axis: ±0.015mm

Z axis: ±0.01mm

R axis: ±0.005°

Rated / max load: 5Kg/10kg

R axis allows load moment of inertia (Rated / max): 0.05 kg·m2 / 0.2kg·m2

User signal line: 0.2sq × 16 lines, 8 outputs, 6 inputs

Users pipe: Ф6×2

Limit protection: 1, the software limit

2, the mechanical limit (X, Y, Z axis)

Weight: 24.3kg


20170804103223_77048


Our partners such as Foxcom phone assembly production, GE car production line etc.


ADTECH, the No.1 SCARA robot arm manufacturer which is from China.
