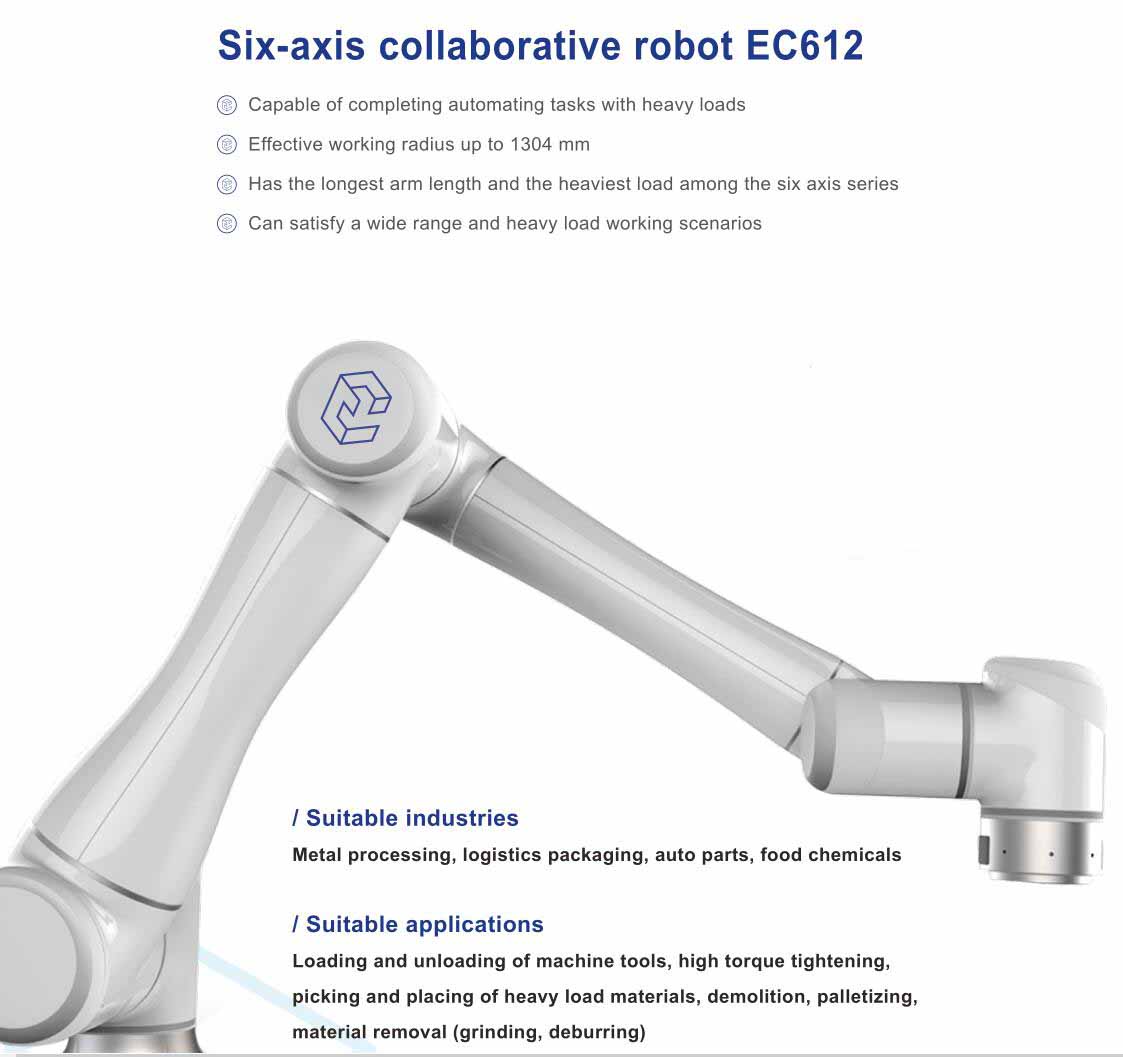

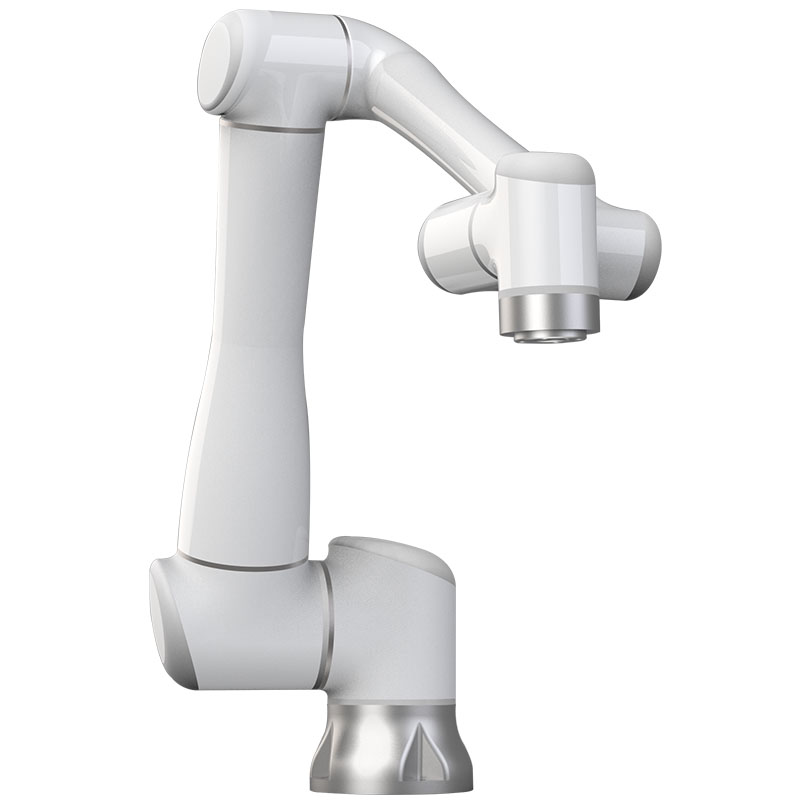

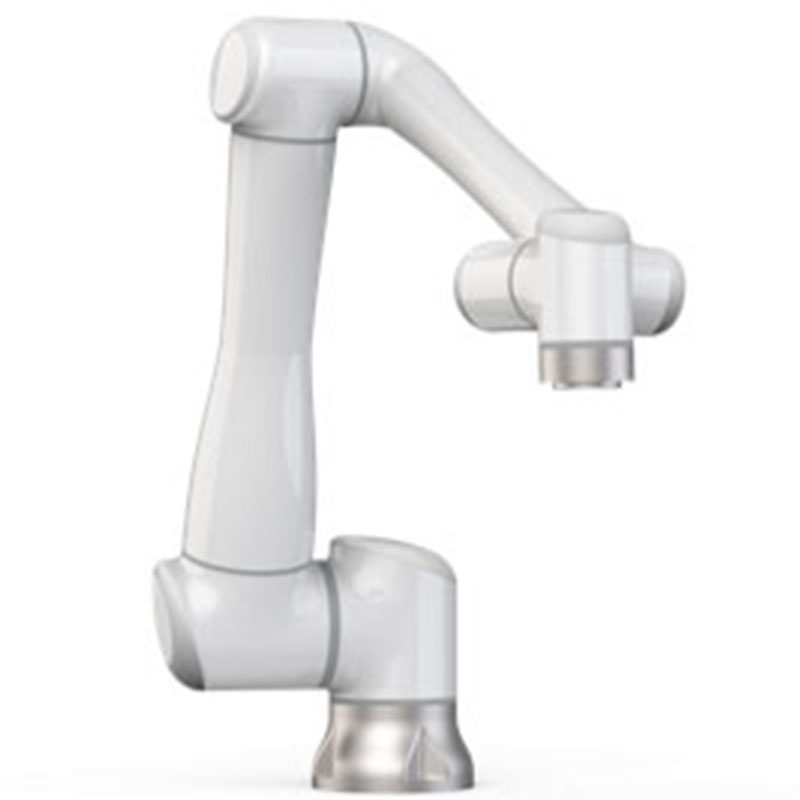

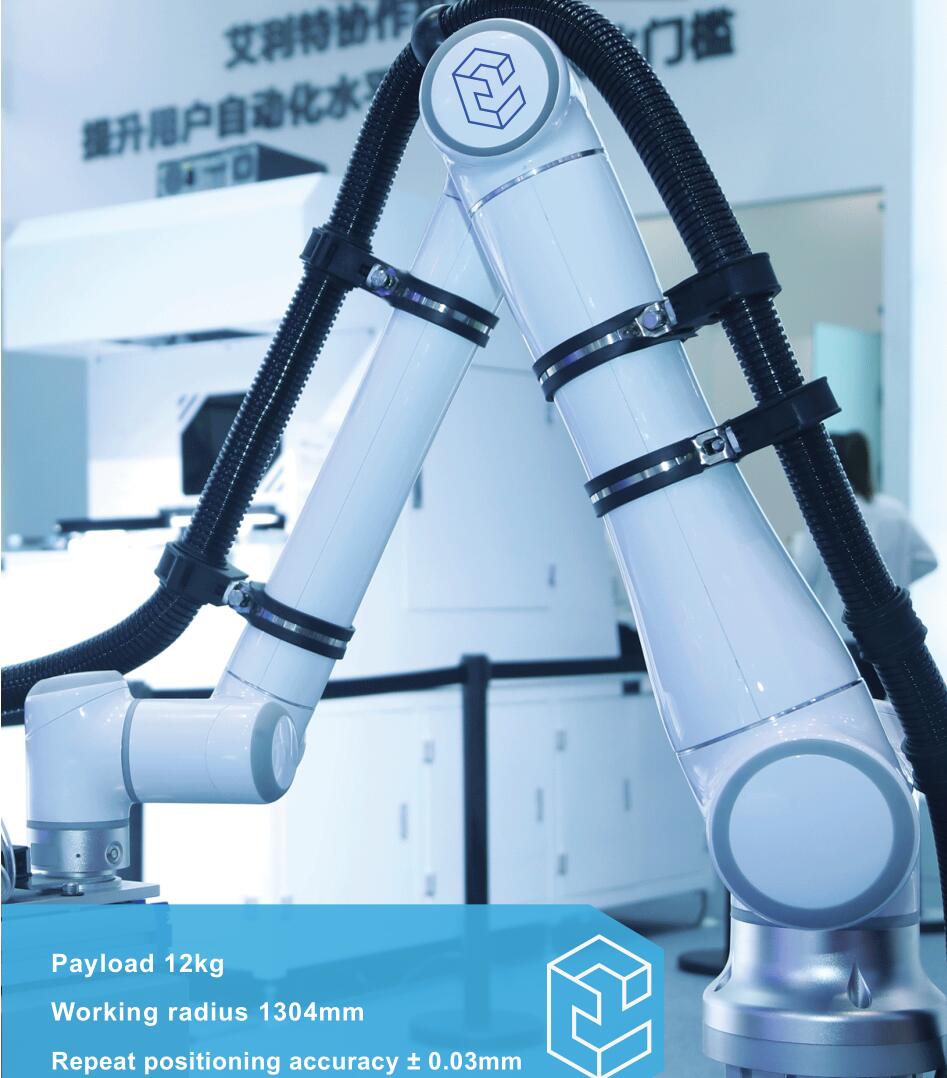

China best collaborative robot with 12kg payload similar UR Robot

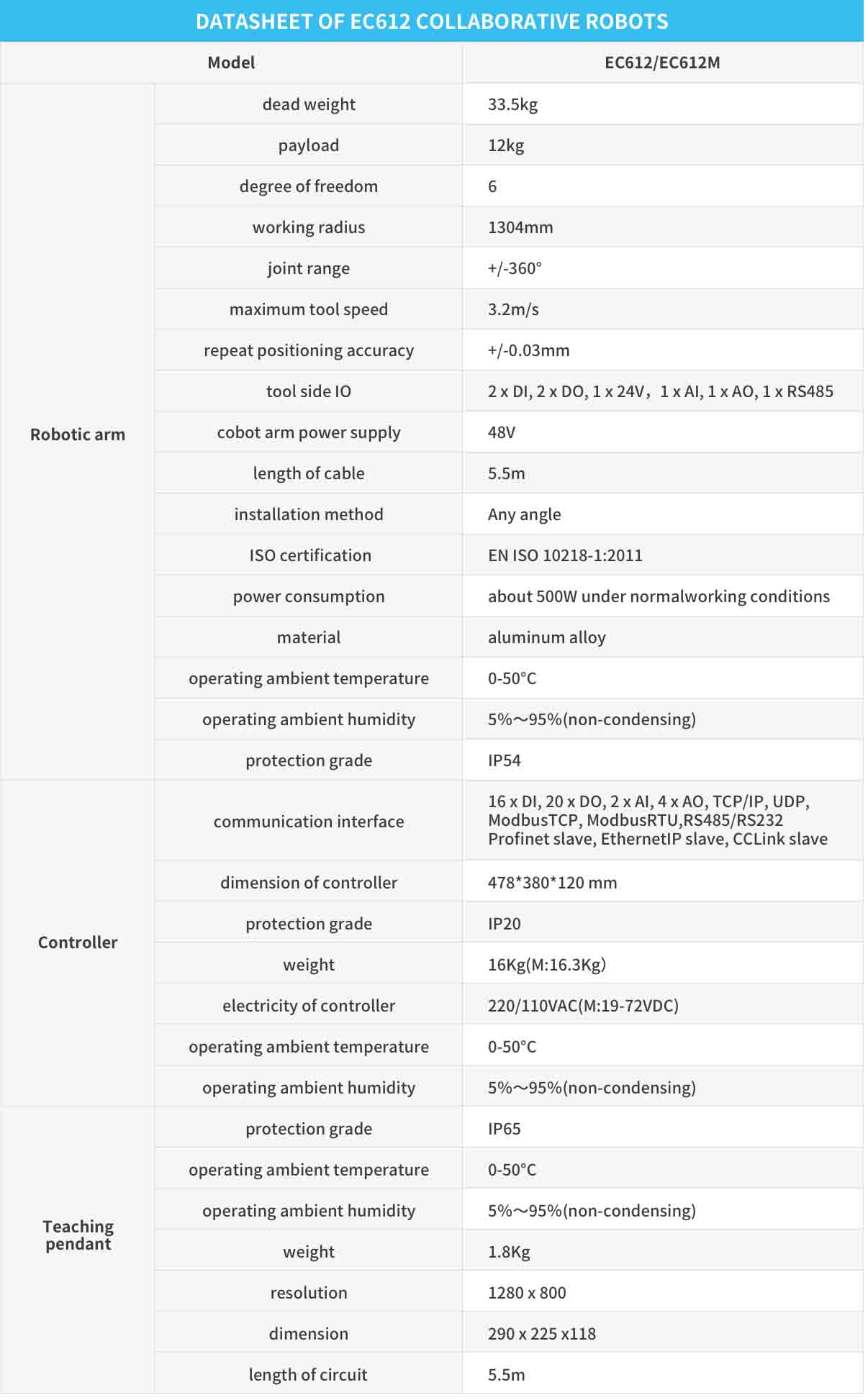

Six degrees of freedom, weight 33.5kg, load 12kg
Working radius 1304mm
Repeat positioning accuracy ±0.03mm
Maximum speed 3.2 m/s
Typical power 500W
Protection grade IP54

  • Item No.:

    TR-EC612
  • Payment:

    FOB
  • Product origin:

    China
  • Color:

    white
  • Shipping port:

    ShenZhen ports
  • Lead Time:

    7
  • Product details


Safety: Our collaborative industrial robots can directly work side by side with humans without using safety fences for isolation, with high reliability and safety

Lightweight: Lightweight and flexible collaborative robot with lighter weight and stronger load, with a weight of only 31kg and a load of 12kg
Appearance: the most beautiful collaborative robot, the overall industrial design of the fuselage is transparent and flexible, and the screw hidden design presents a simple and elegant streamlined shape
High efficiency: the maximum speed can reach 3.2 m/s, the operation efficiency is high, the trajectory is smooth, and the action is continuous
Easy to use: can be easily carried, easy to transport, easy to disassemble, support 48V battery power supply
Intelligence: Equipped with the machine vision Elite Vision system, the robot not only has "appearance", but also has "IQ"
Collision detection: to achieve safe human-computer interaction, real-time detection of whether there is a collision between the robot and the staff, and the corresponding control strategy to ensure that the collision will not harm the staff
Drag teaching: super sensitive drag teaching function, and can fully reproduce the drag track, what you see is what you get

Collaborative Robot 12kg Payload
