Item No.:
400watt AC servo motPayment:
FOBProduct origin:
ChinaShipping port:
ShenZhen ports
TEL: +86-4000988557;
Teams: gfreex@hotmail.com;
WeChat: Troysupply_com;
QQ ID: 8936906.
Feature:
650Hz speed loop response frequency
3 times overload capacity
Low noise and vibration
Very high cost-effective
Build in vibration suppression
Spec. table
| Model | 60ST-M01330A |
| Rated power | 400w |
| Encoder | 2500 ppr optical encoder |
| Rated line Voltage | 220V |
| Rated line current | 1.2A |
| Rated speed | 3000rpm |
| Rated torque | 1.3Nm |
| Peak torque | 1.91Nm |
| BEMF | 30.9 V/1000rpm |
| Torque constant | 0.53Nm/A |
| Rotor inertia | 0.175 X10^-4 kg.m^2 |
| Winding resistor | 6.18 ohm |
| Winding inductance | 29.3mH |
| Electric constant | 4.74 ms |
| Weight | 1.16kg |
| Protection grade | IP64 |
| Insulation grade | Class F |
| Brake |
Optional |
Leave a message

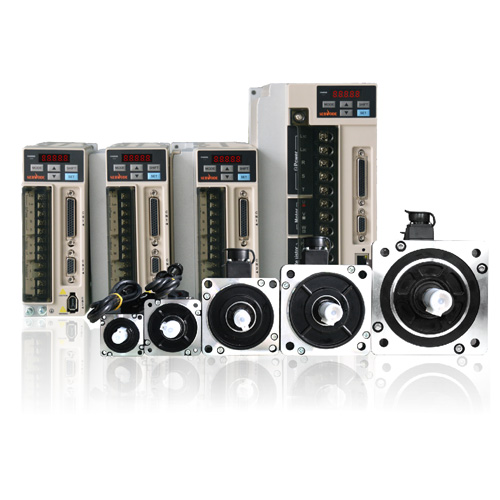

TaiWan famous brand servos drives A2 and B2 series
QS7AA010M is a new generation of general-purpose servo motor driver, which is optimized and improved on the basis of QS6 series servo driver. more stable and more convenient. More mature and stable, rich and complete information. The servo drivers add to 485 new communication functions, more convenient and reliable connection with the host computer or controller software.
QS7AA020M AC Servo Driver is a new generation of general-purpose servo motor driver, which is optimized and improved on the basis of QS6 series servo driver. more stable and more convenient. More mature and stable, rich and complete information. The servo drivers add to 485 new communication functions, more convenient and reliable connection with the host computer or controller software.
ADTECH QS7 series AC servo drives and motors are suitable for retrofit CNC machines and Linear modules !
M800 series product feature： *50% reduction in volume and wiring time *30% energy savings *3.2kHz response speed
M820 series product feature： *50% reduction in volume and wiring time *30% energy savings *3.2kHz response speed
TROY AMR Robot opens the SDK to all users, provides rich API interfaces, has strong extensibility, and has certain development capabilities As far as customers are concerned, customized development can be realized according to the application needs of the scene, which meets the diversified needs of the market for mobile robot chassis.
It mainly includes two parts: intelligent mobile platform and automatic killing system. The automatic killing system is under the core control system of the robot. You can use voice to control the killing power, killing range, killing path, killing time, etc.
Metal processing industry: blanking on punching machines, CNC loading and unloading, workpiece grinding, deburring; Electronic products industry: assembly, IC chip testing and handling, spot welding, PCBA soldering, glue application, screwing, plug-in, workpiece polishing; Automobile and motorcycle parts industry: handling, gluing, spot welding; LCD/LED and glass industry: handling of glass plates, assembly of LCM modules, handling of silicon wafers and display screens; Laser industry: spot welding, cutting; Home appliance industry: assembly, handling and screwing of home appliance products; Research areas: student teaching, school research and development.
