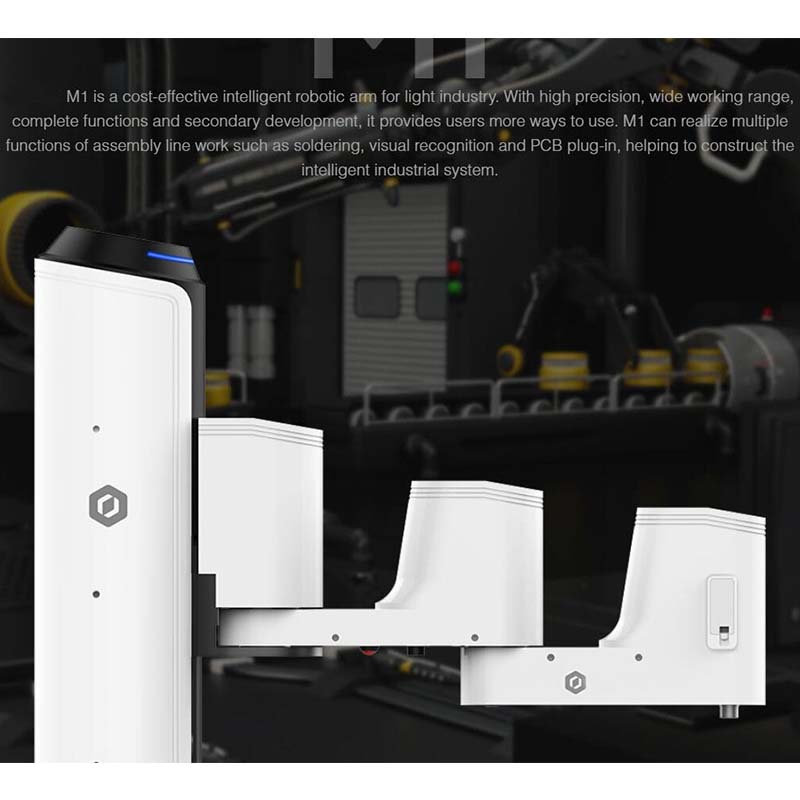

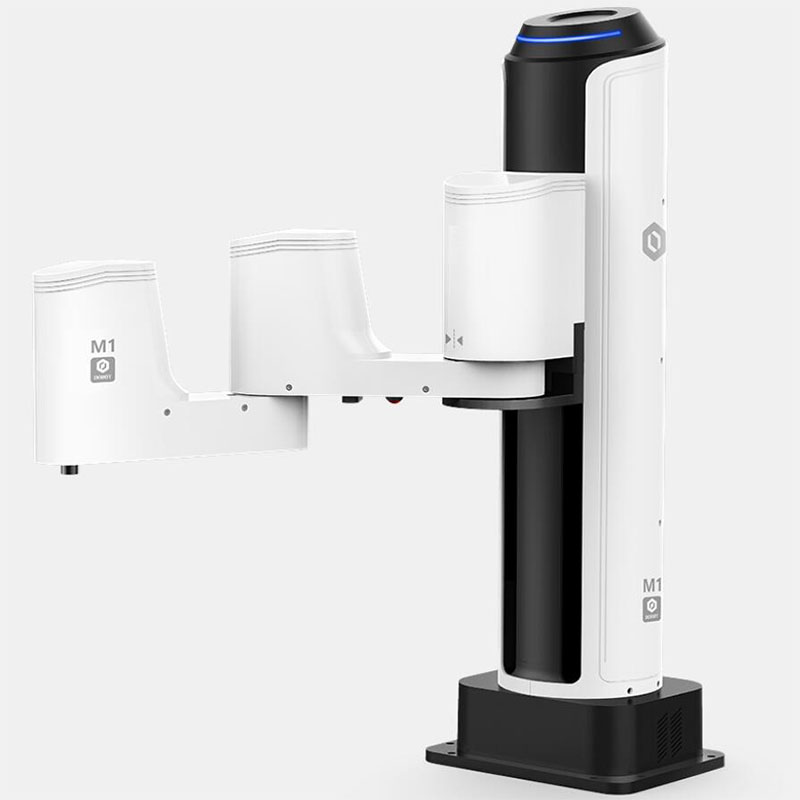

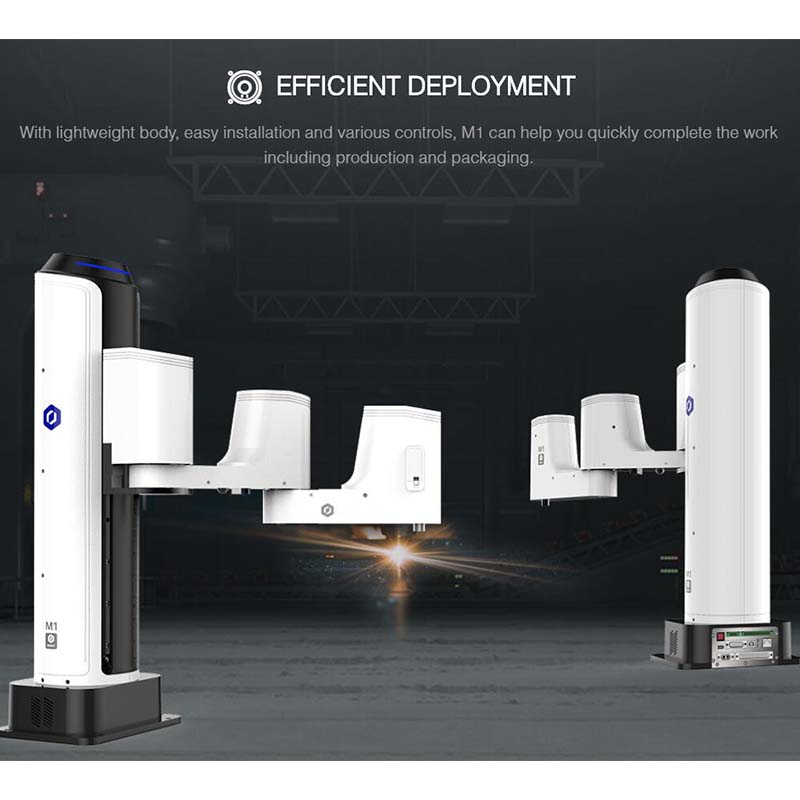

Best Scara Cobot TR-M1 400mm collaborative scara robot

Working Radius: 400mm

Payload: 1.5kg

Repeat accuracy: 0.02mm

Drag teaching system

Anti-collision function

  • Item No.:

    TR-M1
  • Payment:

    CIF/FOB
  • Product origin:

    China
  • Color:

    White
  • Shipping port:

    ShenZhen
  • Lead Time:

    15
  • Product details


SPECIFICATIONS

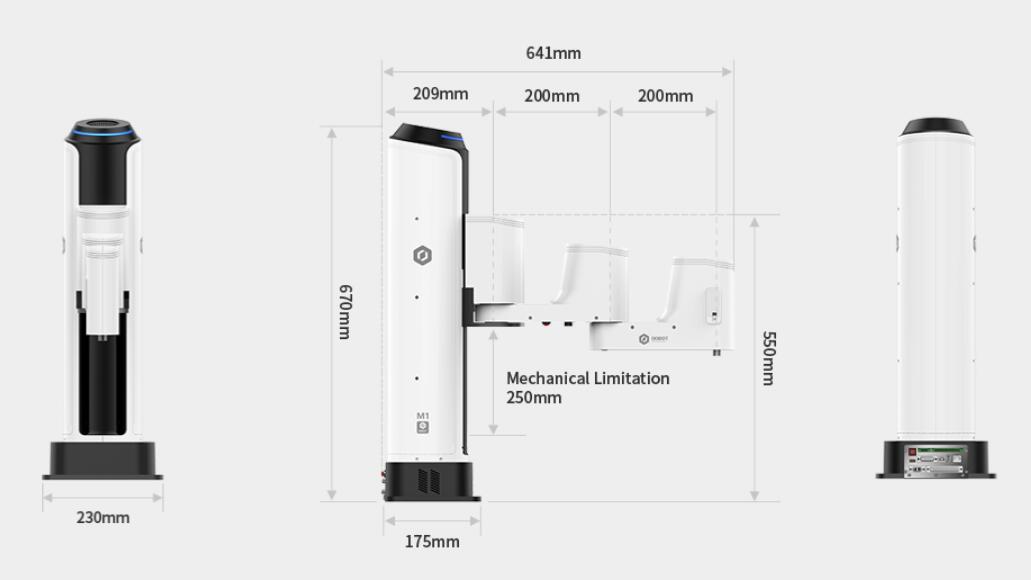

Reach 400 mm
Payload 1.5 kg
Maximum magnitude :
Type Mechanical limitation Software limitation
Rear arm -90°- 90° -85°- 85°
Forearm -140°-140° -135°- 135°
Z-axis screw 0mm- 250mm 10mm- 235mm
End-effector rotation unlimited -360°- 360°
Maximum speed :
Joint speed of Forearm and Rear Arm 180°/s
Resultant speed of the Forearm and Rear Arm 2000 mm/s
Speed of Zaxis 1000 mm/s

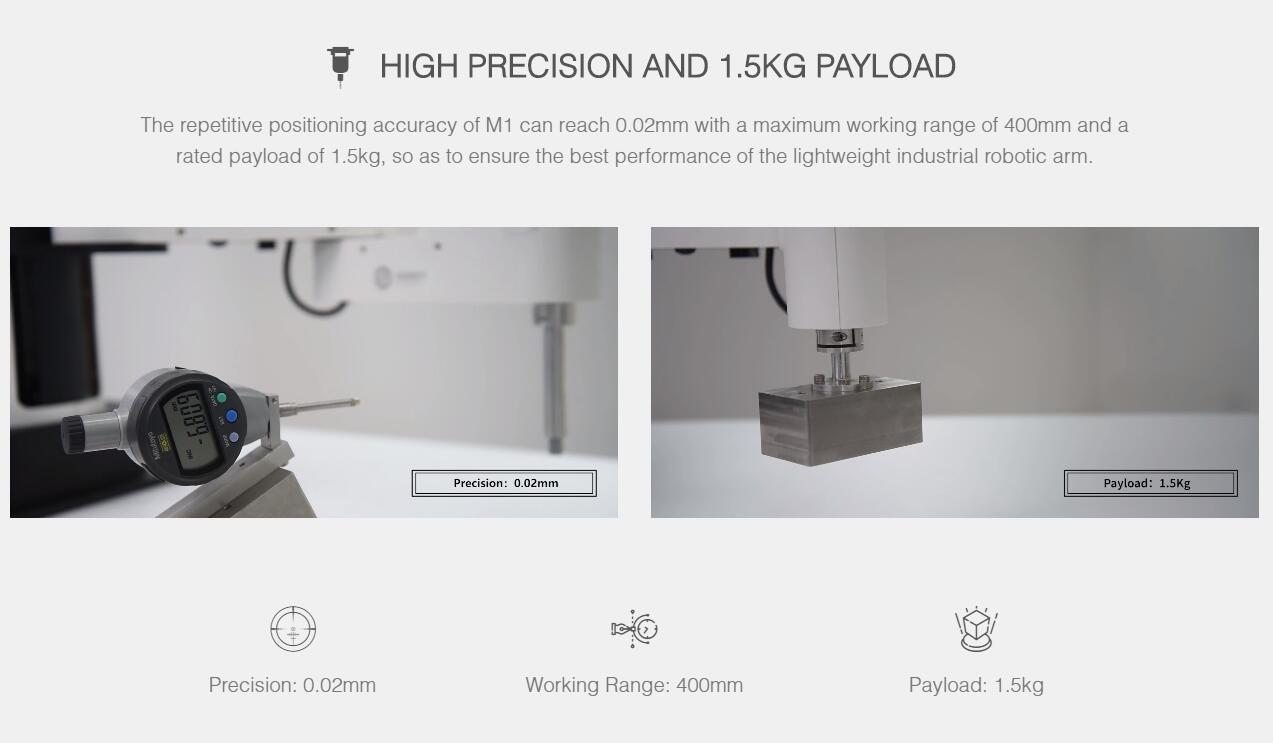

Repeatability : 0.02 mm
Collaborative function : support sensor-free collision detection and teaching and playback
Input Requirements of Power Adapter : 100 -240 V, 50/60 Hz
Communication interface : Ethernet, RS-232C
I/O : 22 digital outputs, 24 digital inputs, 6 ADC inputs
Software : M1 Studio
System : Linux
