/China best of Unmanned Forklift agv

China best of Unmanned Forklift agv

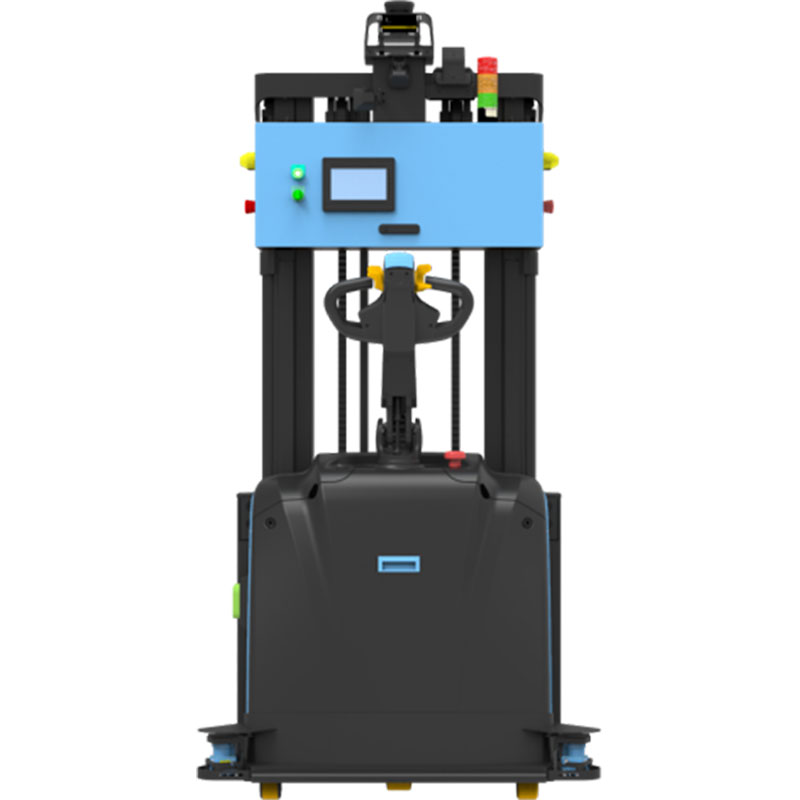

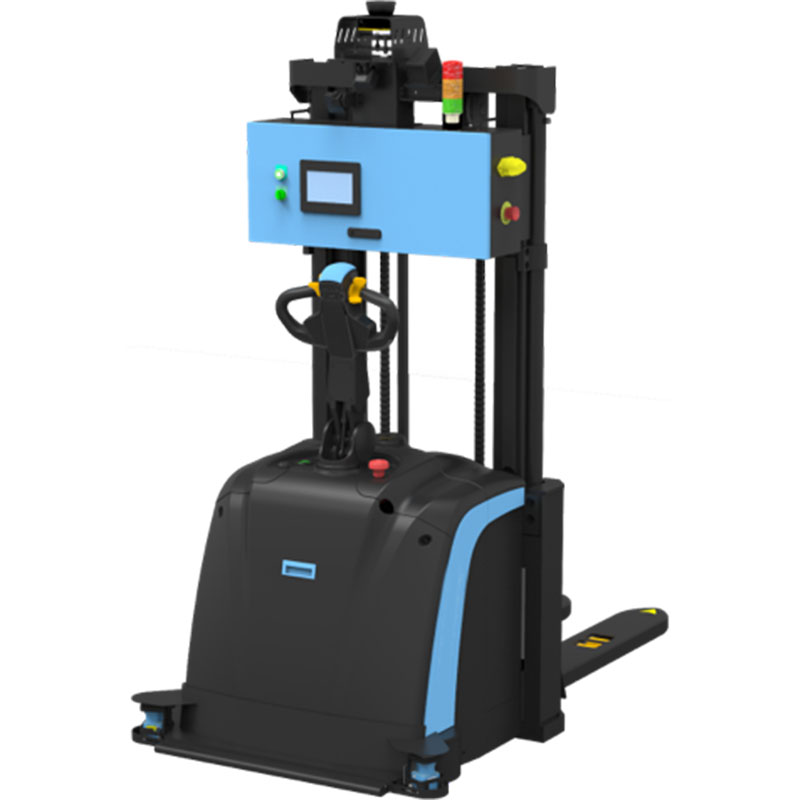

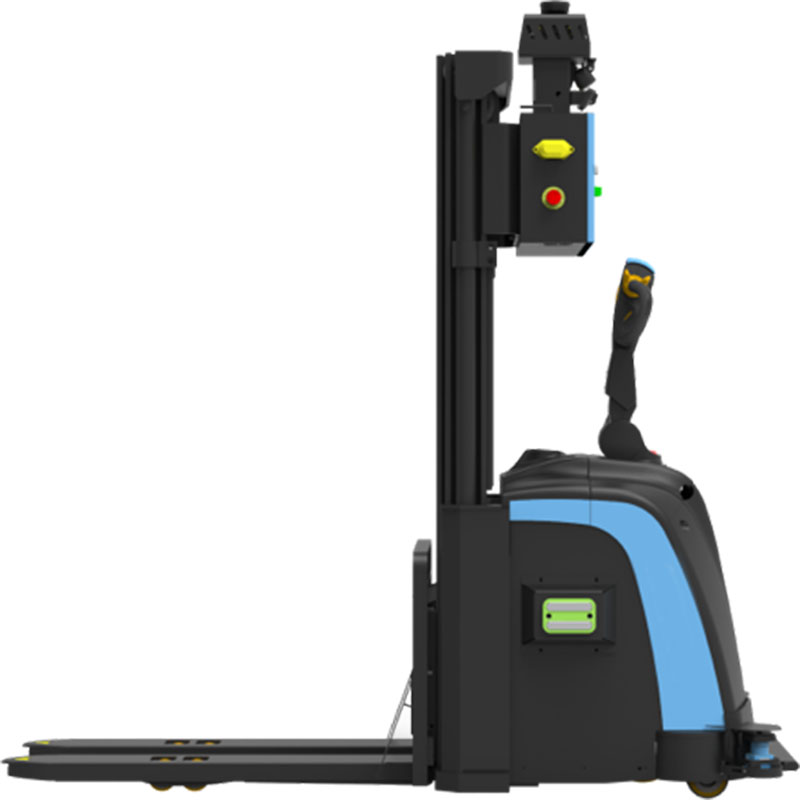

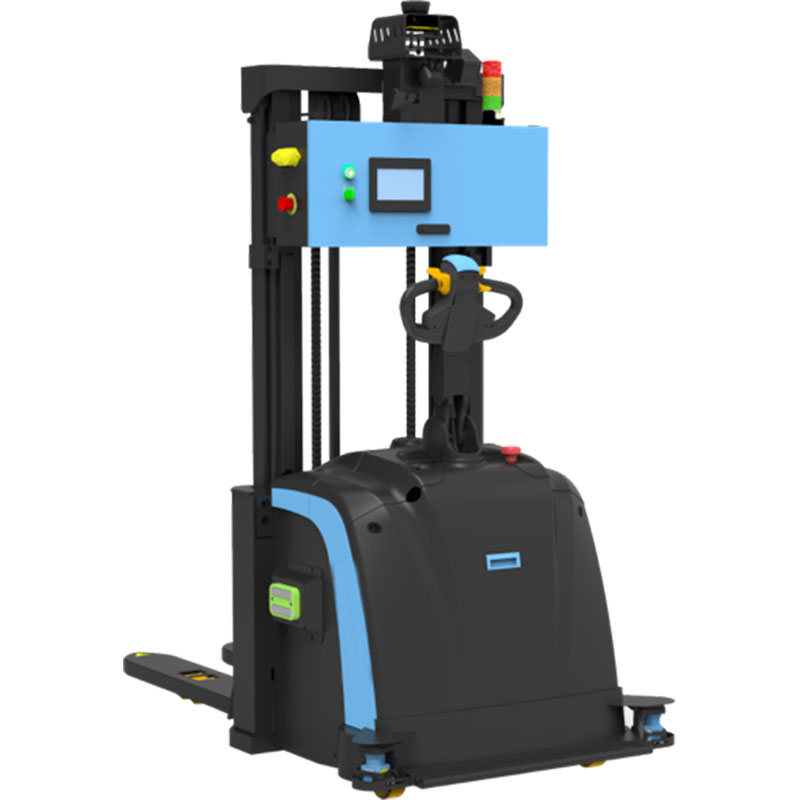

SRC-based laser SLAM stacker automatic forklift TR-FL200, equipped with SRC series core controller, can identify pallets, fork goods accurately, and operate efficiently; and adopts laser SLAM navigation, no reflector, easy to deploy; fuselage 360 °Comprehensive protection + 3D obstacle avoidance to improve the safety of robot operations; the lifting height can be customized, supporting a maximum lift of 6M, which is a "stacking weapon" in the factory; the maximum load is up to 2000kg, suitable for large factories or warehouses. Load handling, stacking and palletizing scenarios
  • Item No.:

    TR-FL200
  • Payment:

    EXW, FOB, CIF.
  • Product origin:

    China
  • Color:

    blue and black
  • Shipping port:

    Shang Hai
  • Lead Time:

    20
  • Product details


Laser SLAM Stacker Automatic Forklift

automatic forklift

Core advantages
High precision
Pallet identification, accurate fork goods.

True Laser SLAM
Laser SLAM navigation, no reflector, easy to deploy.

Comprehensive protection
Obstacle avoidance laser + distance sensor + 3D camera + anti-collision bar + plane 360° comprehensive protection.

Self-charging
Support stand-alone automatic charging.

Strong applicability
It can climb slopes, pass over hurdles, pass through elevators, can be transported, and can be stacked.

Flexible scheduling
Seamless access to the scheduling system.

Heavy loads
Support 2000KG load.

Higher lifts
Lifting height can be customized, up to 6M.

automatic forklift

Technical parameters





Product model

TR-FL200



Product name

Laser SLAM stacker automatic forklift



Dynamic form

Electric



Driving mode

Automatic navigation, walking driving



Navigation type

Laser SLAM



Tray type

3-stringer pallet



Rated load capacity

2000kg



Load centre distance

600mm



Wheelbase

1293mm



Dead weight (with battery)

1230kg



Navigation position accuracy [1]

±10mm



Navigation angle accuracy [1]

±0.5°



Fork in-position accuracy [1]

±10mm



Standard lifting height

3000mm



Gantry height

3580mm



Fork surface ground clearance (at the lowest position)

85±5mm



Navigation laser scanning height

2177.5mm

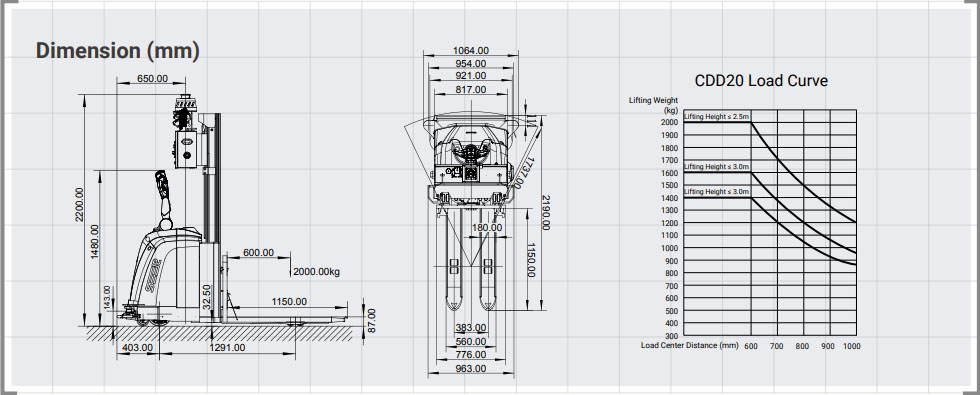

Vehicle size: length * width * height

2190*1064*2200mm



Fork size: length * width * height

1150*180*55mm



Fork outer width

570/680mm



Right-angle stacking channel width, pallet 1000×1200 (1200 placed across forks)

2900mm



Right-angle stacking channel width, pallet 800×1200 (1200 placed along the fork)

2800mm



Map area (Single)

≤ 400000m²



Minimum turning radius

1737mm



Performance parameters





Driving speed: full load/no load

1.2/1.5m/s



Lifting speed: full load/no load

90/120mm/s



Descent speed: full load/no load

120/110mm/s



Gantry movement speed: full load/no load

/



Passability (slope/step/gap)[2]

< 5%/20mm/30mm



Drive motor power (S2, 60 min)

1.5kW



Lifting motor power (S3, 15%)

3kW



Steering motor power (S2, 10 min)

0.165kW



Service braking mode

Electromagnetic brake



Drive control mode

Servo control



Wheel parameters





Tyre type: drive wheel/support wheel

Polyurethane/Polyurethane



Tire size: driving wheel

230x75mm



Tire size: bearing wheel

80x80mm



Tire size: Balance wheel

115x55mm



Wheel number: driving wheel (×= driving wheel)/ bearing wheel

1X-2/4



Wheel base: bearing side

690mm



Wheel base: driving side

383mm



Battery parameters





Battery specifications

24/180 (Lithium Iron Phosphate)V/Ah



Battery weight

90kg



Comprehensive battery life

10h



Charging time (10%-80%)

2h



Charging method

Manual/Automatic



Battery cycle number

> 2000



Certifications





ISO 3691-4

×



EMC/ESD



UN38.3



RoHS



REACH



Function configurations





Wi-Fi roaming function



3D obstacle avoidance [3]



Remote emergency stop [4]



Pallet recognition[3]



Cage stack [3]



High shelf pallet recognition[3]



Pallet damage detection [3]



Pallet stacking and unstacking [5]



The HMI screen



Fork tooth distance sensor



Cargo weight detection



Safety configurations





E-stop button



Sound and light indicator



Braking distance: 1m/s / 1.5m/s

≤30cm / ≤50cm



Vehicle hardware fault detection



360° laser protection



Bumper strip



High safety protection of fork teeth



Others





Network

4G / 5G / Wi-Fi 802.11 a/b/g/n/ac



Ground flatness

±5mm/m²



Scenario requirements

Only suitable for indoor, light intensity ≤40 klx (IEC 61496-3), ground without water and oil and other scenes



Ambient temperature and humidity range

TEMP: 0-50 / RH: 10-90%, no compression, no condensation



IP rating

IP20



Noise near driver's ear according to EN12053

≤70dB(A)

automatic forklift
