Fiber Laser Obstacle Remover Description:

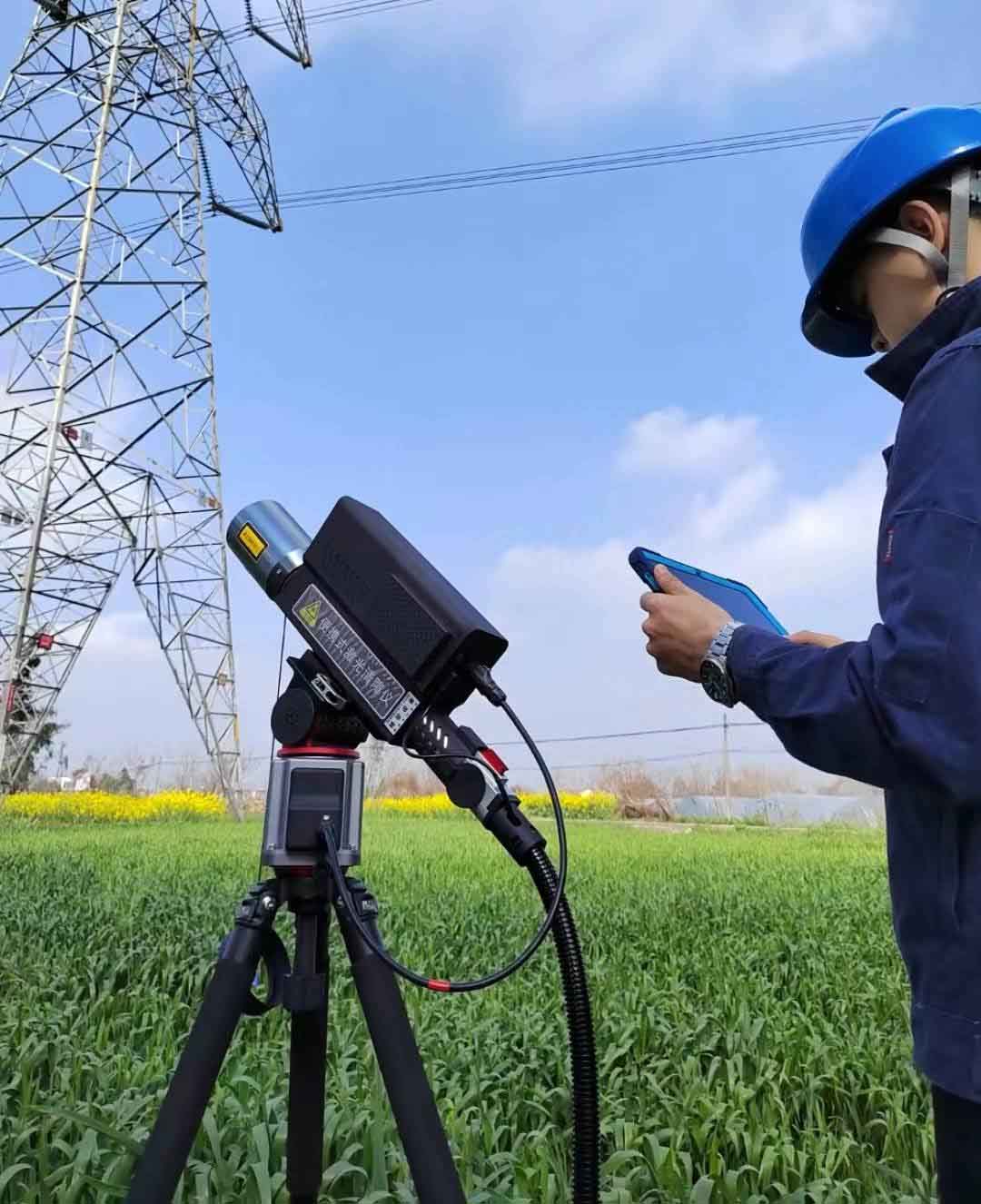

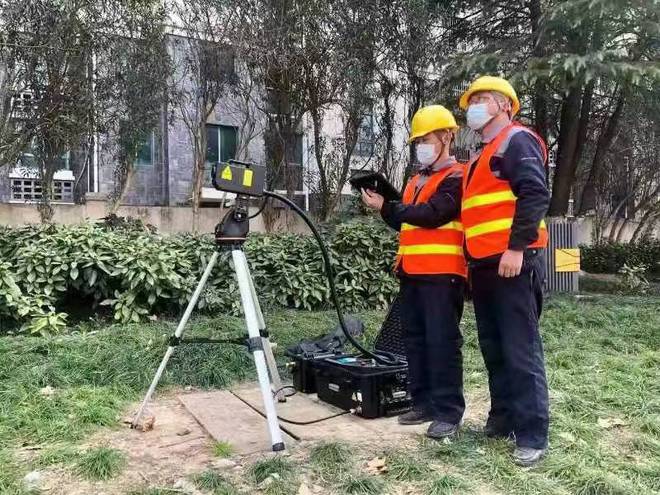

TR-1500S-D is suitable for all kinds of use environments. In places with harsh environments such as railways, mountainous areas, and terraces, the high laser power is suitable for clearing large tree obstacles and obstacles that are difficult to clear.

1. High PTZ accuracy: The PTZ is flexible and gapless; the steering accuracy is 0.0012°
2. Stable output: 0-1500W power is optional

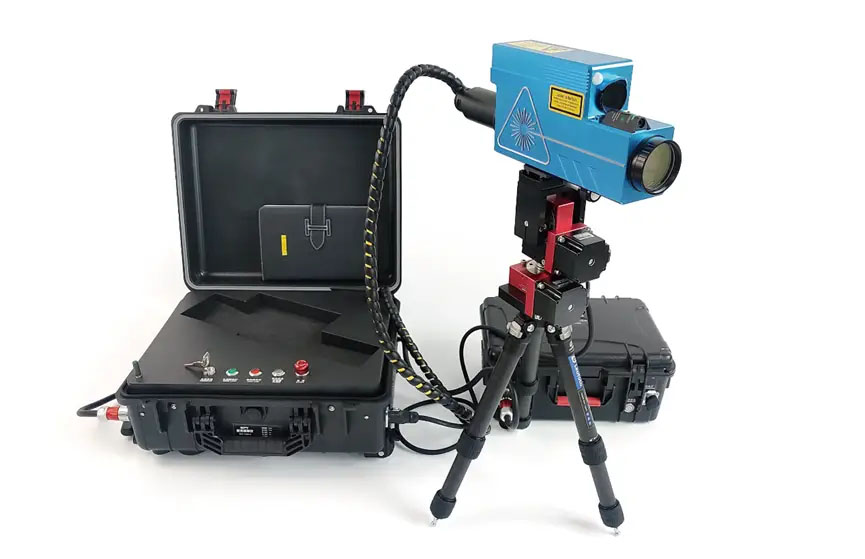

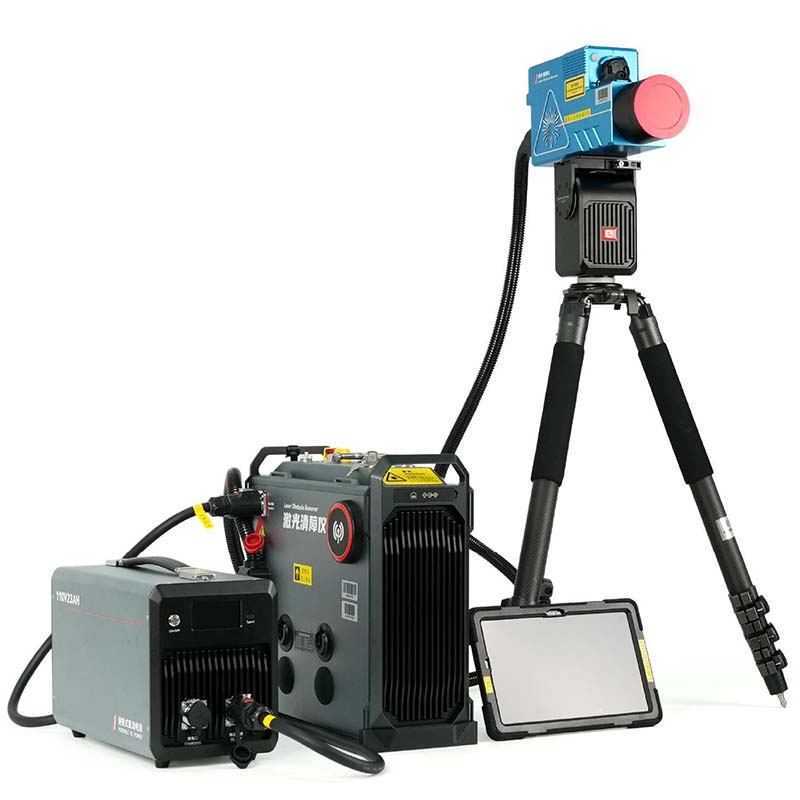

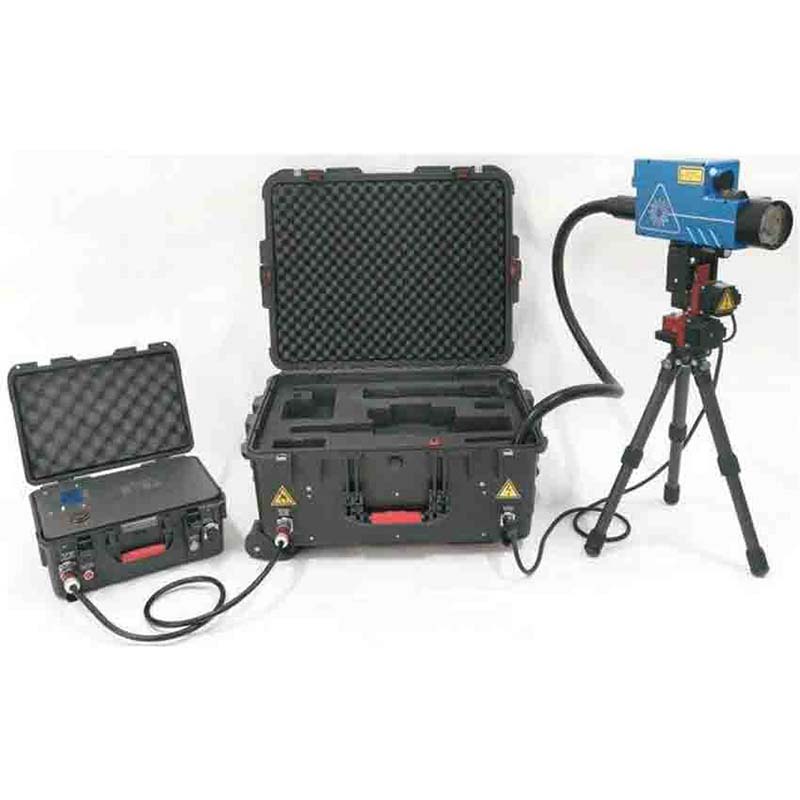

3. The whole machine is easy to carry: It consists of a host chassis and a battery box, with a high degree of integration and easy to carry
4. Accurate aiming: The laser and the center of sight are completely overlapped, and it also has green light auxiliary positioning
5. Smooth cutting surface: automatic adjustment, smaller spot; better cutting effect, shorter cutting time

Fiber Laser Obstacle Remover parameters:

Model: TR-1500S-D
Laser power (W): 1500W
Laser output wavelength (nm): 1080±5
Action distance (m): 10-650 (m)
Power adjustment range: 10%~100%
Laser lens mode: dynamic focus
Sight (optional): 66x optical zoom, 10x digital zoom
Aiming accuracy: The center of the laser irradiation point and the crosshair are accurate and without deviation
Built-in distance measurement: With built-in distance measurement function
Indicator light: Green light indication
Safety protection function (optional): tipping protection, infrared safety sensor, electronic fence
Power supply (optional): lithium battery/generator/external power supply
Battery capacity: 110V34AH
Pan-tilt steering angle: Pan: 360°Pitch: -90°~90°
Setup time (minutes): ≤2

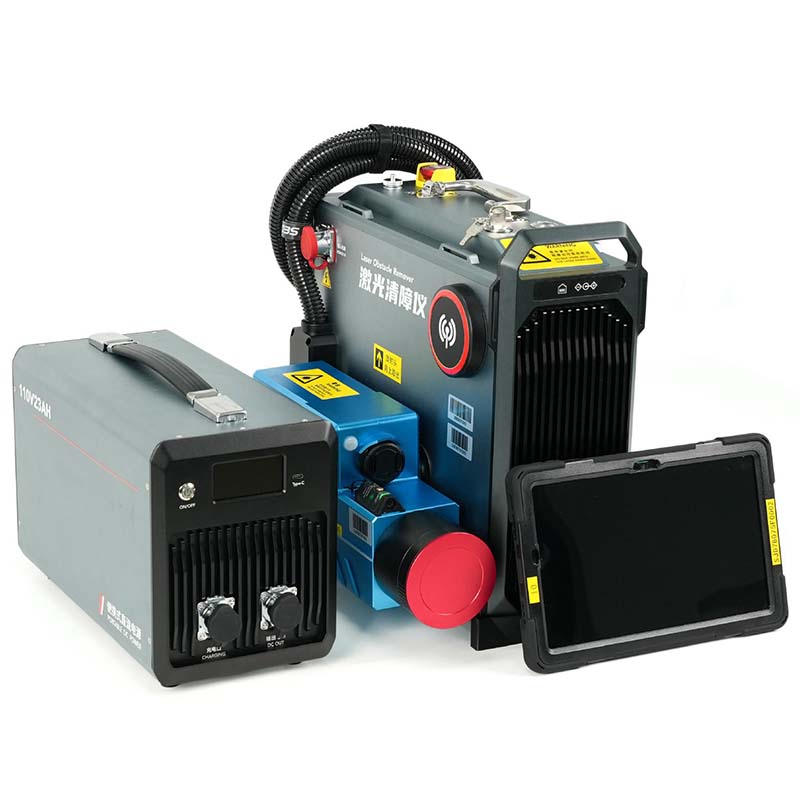

Structural form: Host/battery separation
Carrying method: Handheld/backpack
Night vision function: With night vision function
Total weight of the device (kg): Main unit: 27kg (including transmitter) Battery: 21kg
Main unit box size (mm): 450*245*460
Battery size (mm): 360*170*275

Fault analysis and troubleshooting:

1. Press the start button, the device does not start
Check whether the right-turn release emergency stop switch is turned on, whether the key switch is turned on, whether the pan-tilt base touches the limit, and whether the pan-tilt and laser are in standby mode.

2. The laser does not emit light, and the display shows "temperature abnormality"
This is because the laser temperature exceeds the allowable range and the laser automatically shuts down. Shut down for a few minutes and then restart. If the alarm still sounds, please check whether the cooling fan of the main chassis is blocked or not started.

3. The laser does not emit light, but the power display is normal
Observe the indicator lights on both sides of the power display. When the red light of the laser on the right is on and the power indicator on the left is not on, it means that the laser temperature is too high and is in a protection state. Shut down for a few minutes and then turn it on again. The machine works. Wait until the heat of the laser is small before turning on the laser.

4. Press the keyboard button and the pan-tilt does not respond
Check whether the device is turned on, the antenna is plugged in, the power switch of the remote control is turned on, and the battery of the remote control is charged.

5. The remote control display screen does not display
Check whether the remote control switch is turned on, whether the data cable is plugged in or loose, and whether the remote control battery is dead.

6. How to clean the equipment
To ensure the normal use of the system, the equipment must be cleaned and maintained daily. This machine is a precision equipment and requires extra care during maintenance. After each work, use powder-free rubber gloves, lint-free cleaning cloth and cotton swabs, anhydrous ethanol, i.e. alcohol (optical grade, purity greater than 99.5%), compressed air (oil-free, water-free) and other tools to wipe the fiber aiming laser head housing, pan/tilt, display, etc. clean before putting them back into the main box. Please refer to the product manual for details.

Note: If the problem persists, please contact our company or local office. When you need to report the fault to our company, please be sure to record and inform the equipment model and equipment code on the machine nameplate.
