/ADTECH ADT-8940A1 4 axis motion control card supplier

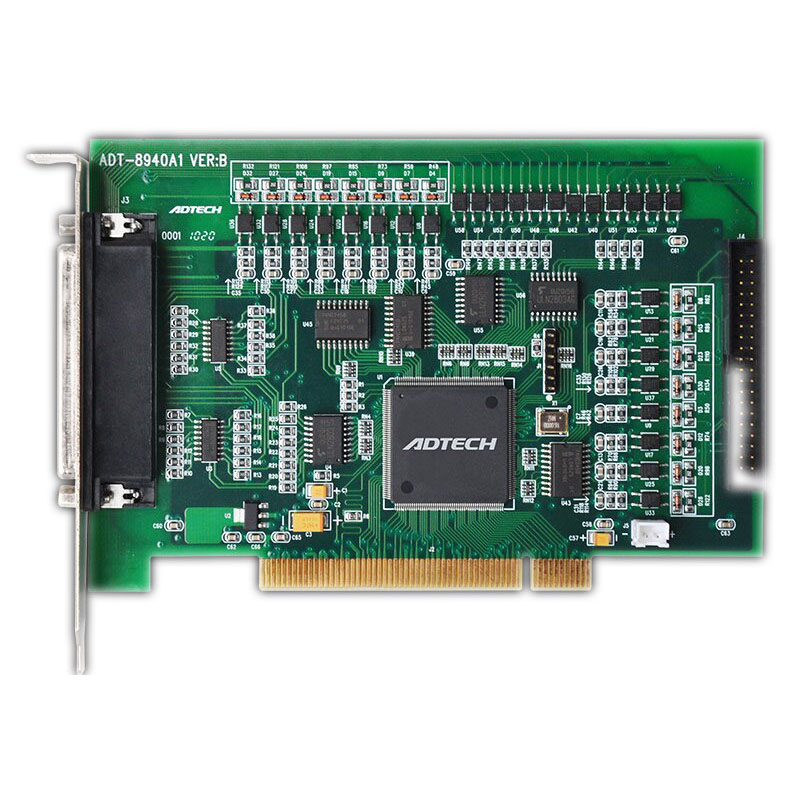

ADTECH ADT-8940A1 4 axis motion control card supplier

ADT-8940A1 is high cost effective pci-bus motion control cards. It support linear, arc. interpolation.40 channel input and 16 channel digtial output port. It can be application for cutting machine, engraving machine,laser equipments.

  • Item No.:

    ADT-8940A1
  • Payment:

    FOB
  • Product origin:

    China
  • Shipping port:

    ShenZhen ports
  • Lead Time:

    5 days
  • Min order:

    10
  • Product details

ADT-8940A1 4 Axis Motion Control Card PCI-bus


Features:

  • 32-bit PCI bus, PNP;
  • Pulse output mode: pulse + direction, pulse + pulse;
  • Maximum pulse output frequency is 2MHz;
  • Random 2-4 axes linear interpolation;
  • Constant velocity or trapezoid acceleration/deceleration;
  • 4-axis servo/stepper motor control; each axis can control independently;
  • All the 4 axes have position(coder) feedback input; 32-bit counting; maximum frequency is 2MHz,maximum counting range: -2,147,483,648~+2,147,483,647;
  • Hardware termination emergency;
  • 40-channel optical coupling isolation digital input, 16-channel digital output ,every axis contains 2 positive and negative limit signals;
  • Read the logical position, real position, driving speed, acceleration and driving state in real-time in the motion process;
  • Each axis has 2 STOP signals, which are used to search for home , deceleration and Z-phase of coder;
  • Each axis has 8 input signal,include 2 positive/negative limit signals,2 stop signals,1 servo in-position signal, 1 servo alarm signal and 1 general input signal. two limit signals can be used as general input signals by setting them as invalid;
  • Time delay, can set timelag time and get timelag state;
  • Receive signals from servo motor drive, e.g. coder Z-phase signal, in-position signal, alarm signal, etc;
  • Up to 16 motion cards can be used in one system,control 64 axes;
  • Support operating systems: DOS, WINDOWS95/98/NT/2000/XP, WINCE;
  • Supports developing software with C, VC++, VB, BC++, C++builder, LabVIEW and Delphi


General Features:

  • Operating temperature: 0~60°C
  • Storage temperature: -20~80°C
  • Humidity: 5~95% (no condensation

ADT-8940A1-spare parts_


Accessories:

Model

Description

Quantity

ADT-9137

Wiring board, 37 pins

1

ADT-9162

Wiring board, 62 pins

1

D37GG

Data line, 37 pins,

1

D62GG

Data line, 62 pins

1

DB37

Flat cable

1

CD

SDK (software development kit)

1


User manual

1

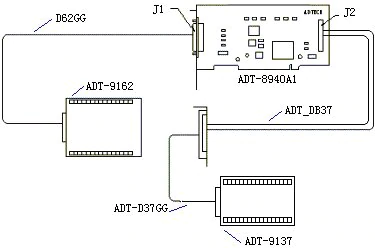

Wiring Diagram:

Main card dimension: 160*107mm

Terminal block/wiring board dimension: 9137-125*87.6mm 9162-136*72mm


Application Industries:

  • 1. Biological,medical equipment
  • 2. Semiconductor automatic processing and testing equipment
  • 3. Packaging Equipment
  • 4. Advertising equipment: Drawing word machine,slot machine
  • 5. PCB processing equipment, SMT machine, PCB drilling machine
ADT-8940A1-spare parts
