Item No.:
TR-1500V20Payment:
CIF/FOBProduct origin:
ChinaColor:
WhiteShipping port:
ShangHaiLead Time:
28
Model specification |
TR-1500 |
Cell size |
156×(52/78/156)mm |
Cell thickness |
0.16-0.3mm |
Number of grid lines |
5 grid, 6 grid |
Coincidence deviation of ribbon and grid line |
≤±0.1mm |
Maximum string length |
2000mm |
Ribbon specifications |
Thickness 0.15-0.3, width 1.0-1.2mm (customized according to customer requirements) |
Flux method |
Spraying |
Welding method |
Infrared heating |
Fragmentation rate |
≤2‰ (positive A grade film) |
Power consumption |
13KW |
Input voltage |
AC380V(3phase 5lines),50-60Hz |
Enter the compressed air pressure |
0.6-0.8MPa |
Enter the compressed air flow |
350L/min |
size |
6255×1310×2110mm |
Net amount |
2000kg |
1.3 Equipment technical characteristics
1.3.1. Welding speed: ≤1200 pcs/hour
1.3.2. Breakage rate: ≤2‰ Class A battery
1.3.3, welding method: infrared welding
1.3.4 Number of welding heads: 1
1.3.5. Cell grid lines (optional): □5 □6
1.3.6. Cell specifications (optional): □156×156mm □156×52/78/156mm. For non-standard cells, see the attached drawings for dimensions (compatible with single crystal 1/4 dicing welding).
1) Satisfying the front and rear welding of the monocrystalline cell chamfering respectively
2) Satisfying the simultaneous welding of the front and rear of the monocrystalline chamfer
3) Satisfy monolithic crystal chamfering one side forward, one side backward, without chamfer welding in the middle
4) Satisfying monolithic crystal welding at right angles.
1.3.7. Cell spacing: 1.0-5.0mm (arbitrarily set according to cell size)
Battery string spacing: 10-40mm
Battery string length: ≤2000 mm
1.3.8. The width of the welding ribbon used: 5 grid: □1.0mm □1.1mm □1.2mm
6 grid: □1.0mm □1.1mm □1.2mm
1.3.9. Industrial cameras: appearance inspection.
1.3.10. Power supply for single machine: 3Φ380V/50Hz/13kVA
1.3.11. The orientation of the battery piece: the negative electrode faces upward.
1.3.12. Transmission belt specification: flat belt.
1.3.13. Electrical system: PLC+servo control system.
1.3.14. Man-machine interface: touch screen, easy to operate.
1.3.15. Guide groove plate: (0.1mm wider than the width of the welding strip)
5 grid: □1.1mm □1.2mm □1.3mm
6 grid: □1.1mm □1.2mm □1.3mm
1.3.16, welding tension ≥ 2.5N (1.6 welding strip).
1.3.17. The total air intake index of the equipment: particle size ≤40μm, humidity 35~85%RH, temperature -5~70°.
1.3.18. Unloading module: ■With □Without.
1.3.19. The guide slot plate of the equipment is 5-wire, and other institutions are 5-wire, 6-wire compatible, if other accessories are required, additional fees will be charged.
1.4 Equipment main configuration table:
NO. |
Part Name |
Origin or brand |
Model |
1 |
PLC |
Inovance |
AM600 |
2 |
servo motor |
Inovance |
100W |
3 |
57 stepper motor |
Resay |
|
4 |
servo motor |
Inovance |
400W |
5 |
Infrared tube |
custom made |
2000W |
6 |
Industrial PC |
ASEM/DELTA |
|
7 |
industrial camera |
DaHua |
|
8 |
guide |
HIWIN |
|
9 |
cylinder |
AirTAC |
|

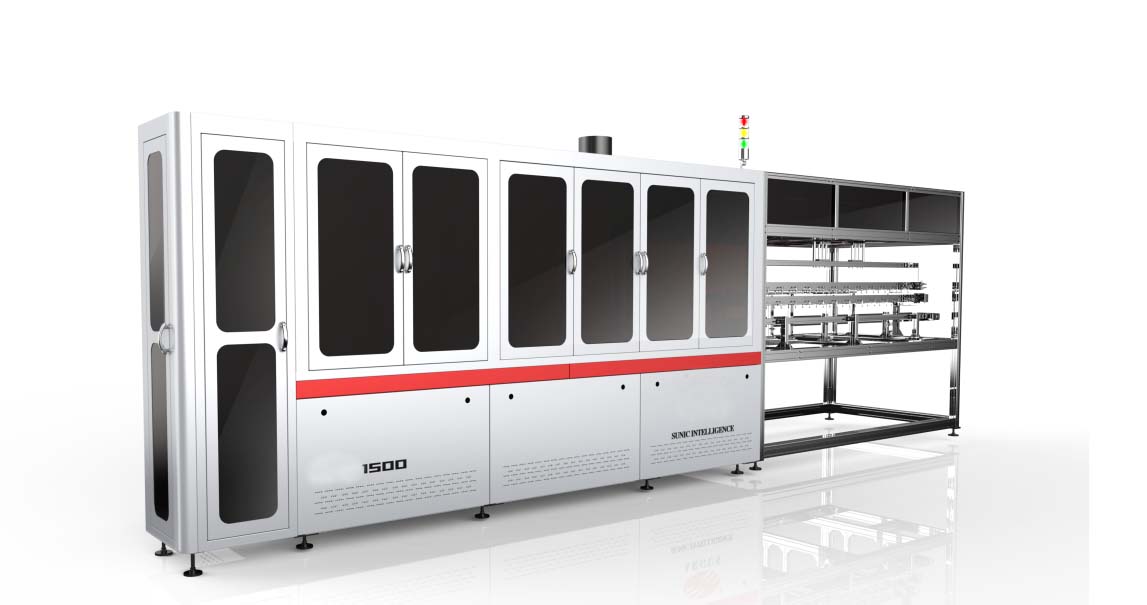

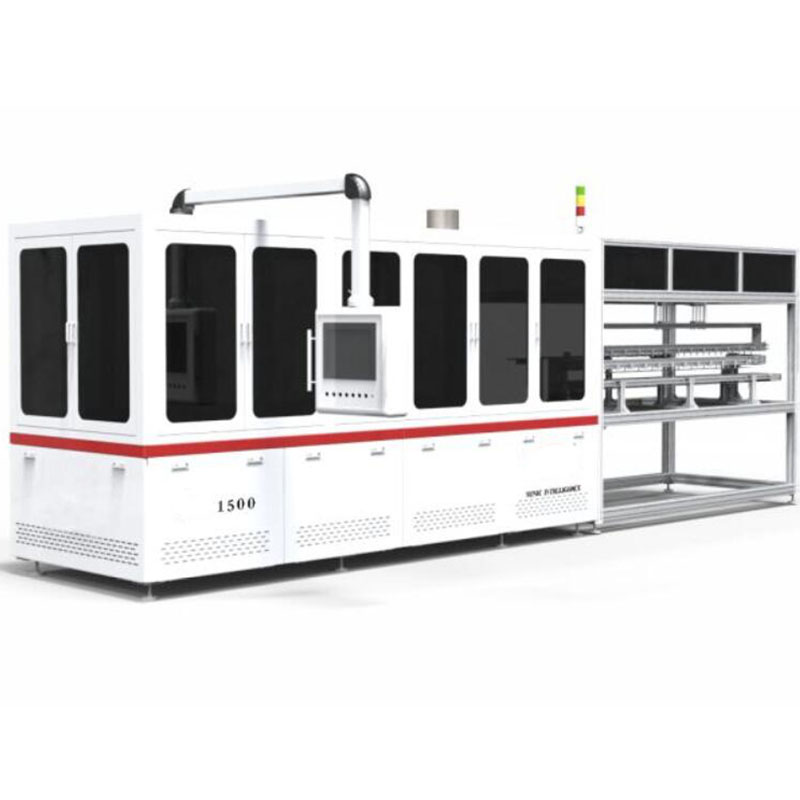

1.5 Device picture
