/ADTECH QS7AA010M AC servo driver DI

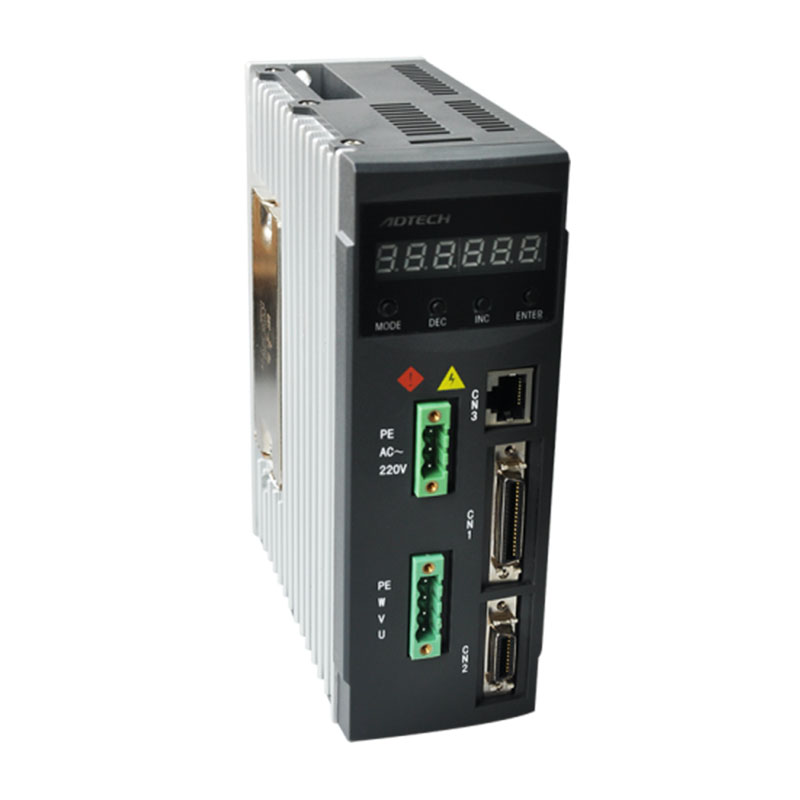

ADTECH QS7AA010M AC servo driver DI

QS7AA010M is a new generation of general-purpose servo motor driver, which is optimized and improved on the basis of QS6 series servo driver. more stable and more convenient. More mature and stable, rich and complete information. The servo drivers add to 485 new communication functions, more convenient and reliable connection with the host computer or controller software.

  • Item No.:

    QS7 Servo 100-400w
  • Product details

Feature:

  • Fully retain the advantages characteristics of QS6 series servo driver.
  • AC sine wave control, torque smoothly and without pulsation.
  • 2500 ppr incremental photoelectric encoder, high positioning accuracy, rotary positioning accuracy up 1/10000R.
  • Speed ratio up to 1:5000, from low speed to high speed torque characteristics are stable.
  • High-speed arithmetic processing FPGA, maximum motor speed up to 5000RPM.
  • A rich complete set of parameters that can be configured to run different operating modes, so meet different demand.
  • Position, speed, torque control mode, using widely.
  • Adopt intelligent space vector control algorithm (SVPWM), could produce greater torque and less noise.
  • Up to three times the overload design, with a load capacity greater.
  • Perfect protection: over current, overvoltage, overheating and encoder failure, etc.
  • Perfect condition monitoring functions, such as the position error, motor speed, feedback pulse, command pulse and so on.


Specifications

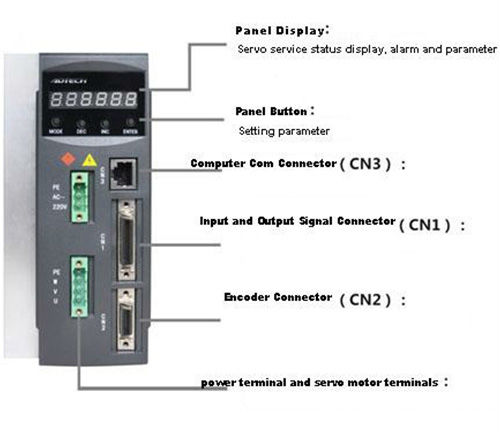

1.QS7 has FPGA software platform with high-performance
2.application with the best wiring design
3.stable and convenient

QS7AA010M is a new generation of universal servo drive products based on QS optimization and improvement, adhering to the QS series of excellent quality, more stable and more convenient. The QS7AA010M servo controllers are more mature and stable with rich and complete data. New adding 485 communication function makes to connect with the upper computer software or controller more convenient and reliable.

Feature

  • The characteristics of last generation QS servo drivers have been fully retained.
  • AC sine wave control, smooth torque, no impulse.
  • 2500 line incremental photoelectric encoder, high positional accuracy, rotation positional accuracy can reach 1/10000R.
  • Speed ration can be as large as 1:5000, has stable torque characteristics from low speed to high speed.
  • Adopting high speed FPGA processing, motor fastest rotation speed can be 5000RPM.
  • Rich and complete parameter setting can be configured with different ways of working and operating characteristics to adapt to different requirements.
  • Possess position, speed and torque control mode, has applications in a wide range.
  • Use intelligent Space Vector control (SVPWM), has much larger torque and much less noise than traditional SPWM.
  • Up to three times overload design, stronger load ability.
  • Perfect protection function: over current, overvoltage, over heat, encoder abnormal etc.
  • Perfect condition monitoring function, such as positional deviation, rotate speed, feedback impulse, command impulse etc.

QS7AA010M AC Servo Driver Paramenter:

Input Voltage

AC220V -15%~+10%

Driver Current

20A

Matching Motor

400W below motors

Using Temperature

Working environment temperature:45°C

Storage environment temperature:-40°C~55°C

Relative Humidity

40%~80% (none condensing)

Atmosphere

86-106kpa

Control Mode

Position control;JOG control;Speed control;Torque control ;Position and speed control;Inside pulse control;Electric tool carrier control

Pulse Command

Pulse+ Direction;CW + CCW Pulse;Two-phase AB orthogonal pulses

Control Precision

0.01%

Response Frequency

≤200Hz

Pulse Frequency

≤500kHz

Speed Ratio

1:5000

Regenerative Brake

Internally Installed

Electronic Gear

1/30000~30000/1

Overload Capacity

≤300%

Feedback Pulse

2500p/r, frequency division can be set arbitrary within 0-128

Display Function

Rotate speed, motor current, motor torque, current location,positional deviation, command impulse count, current pulse frequency, space rate, I/O diagnose, analog input values, etc

Protection Function

Over current, overvoltage, low voltage, overload, over heat, lack phase, over speed, ncoder abnormal, out of tolerance, mode abnormal alarm etc.


QS7AA020M AC Servo Motor Drives matching 100-750W motorQS7AA020M AC Servo Motor Drives matching 100-750W motorQS7AA020M AC Servo Motor Drives matching 100-750W motor<img


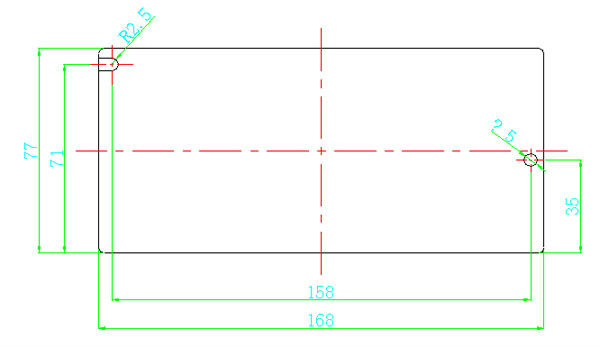

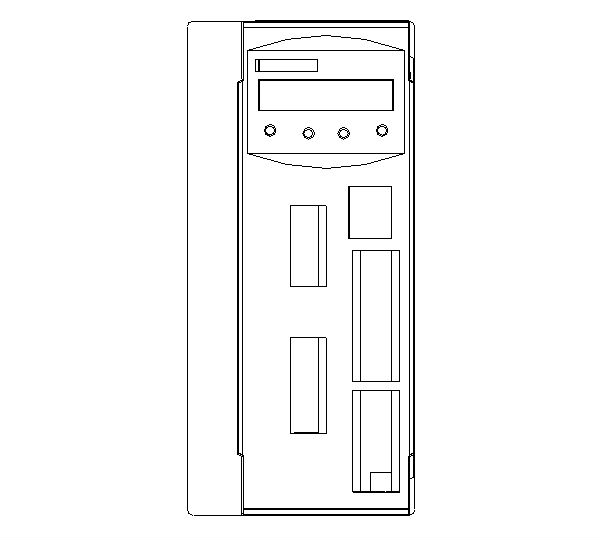

Parameters:

Input Voltage AC220V -15%~+10%
Driver Current 10A
Matching Motor ≤400W Low-inertia Motor
Using Temperature Work:45℃ Storage:-40℃~55℃
Relative Humidity 40%~80% with no condensation
Atmosphere 86-106kpa
Control Mode

①Position control ②JOG control ③Speed control ④Torque control ⑤Position and speed control

⑥Inside pulse control ⑦Electric tool carrier control

Pulse Command ①Pulse+ Direction ②CW + CCW Pulse ③ Two-phase AB orthogonal pulses
Control Precision 0.01%
Response Frequency ≤200Hz
Pulse Frequency ≤500kHz
Speed Ratio 1:5000
Regenerative Brake Internally Installed
Electronic Gear 1/30000~30000/1
Overload Capacity ≤300%
Feedback Pulse 2500p/r, Frequency division can be set arbitrary within 0-128
Display Function

Motor speed, motor current, motor torque, motor position, the position deviation,

the number of command pulses, the pulse frequency, the straight-line speed, input and output diagnostic

Protection Function

Over speed, over current, overvoltage, under voltage, overload, super bad,

encoder fault, the temperature is too high, the internal chip failure, module failure

Leave a message
If you have questions or suggestions, please leave us a message,we will reply you as soon as we can!
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related products
Delta B2 400watt AC Servo motor&driver with 17bit encoder

Delta B2 400watt AC Servo motor&driver with 17bit encoder

TaiWan famous brand servos drives A2 and B2 series

400watt AC servo motor&driver similar with Fuji

400watt AC servo motor&driver similar with Fuji

High Quality AC Servos for Robot build up or retrofiting CNC machines etc. OEM available to our customers, ac servo driver, ac servo controller

QS7AA020M AC servo driver DI

QS7AA020M AC servo driver DI

QS7AA020M AC Servo Driver is a new generation of general-purpose servo motor driver, which is optimized and improved on the basis of QS6 series servo driver. more stable and more convenient. More mature and stable, rich and complete information. The servo drivers add to 485 new communication functions, more convenient and reliable connection with the host computer or controller software.

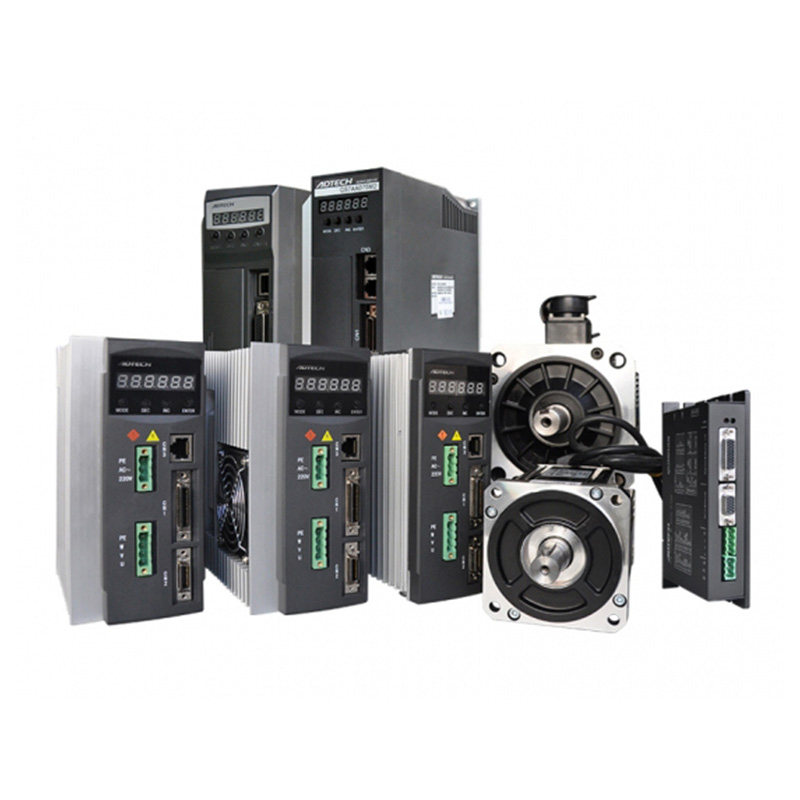

ADTECH QS7 servos AC Servo with 750W motor(3 meter cable)
