Hot sales of Unmanned Forklift agv

The unmanned forklift (AGV) adopts Japanese AGV technology. After years of localization exploration and testing, it now has excellent practicality and rich applicability. The characteristics of in-situ rotation, human-computer interaction friendliness, easy expansion, and easy integration have become the technical representatives of Uwangte AGV. The AGV scheduling system has the function of route control, route avoidance and automatic calls and task scheduling.
  • Item No.:

    TR-FL150
  • Payment:

    EXW, FOB, CIF.
  • Product origin:

    China
  • Color:

    Yellow
  • Shipping port:

    ShenZhen
  • Lead Time:

    25
  • Product details

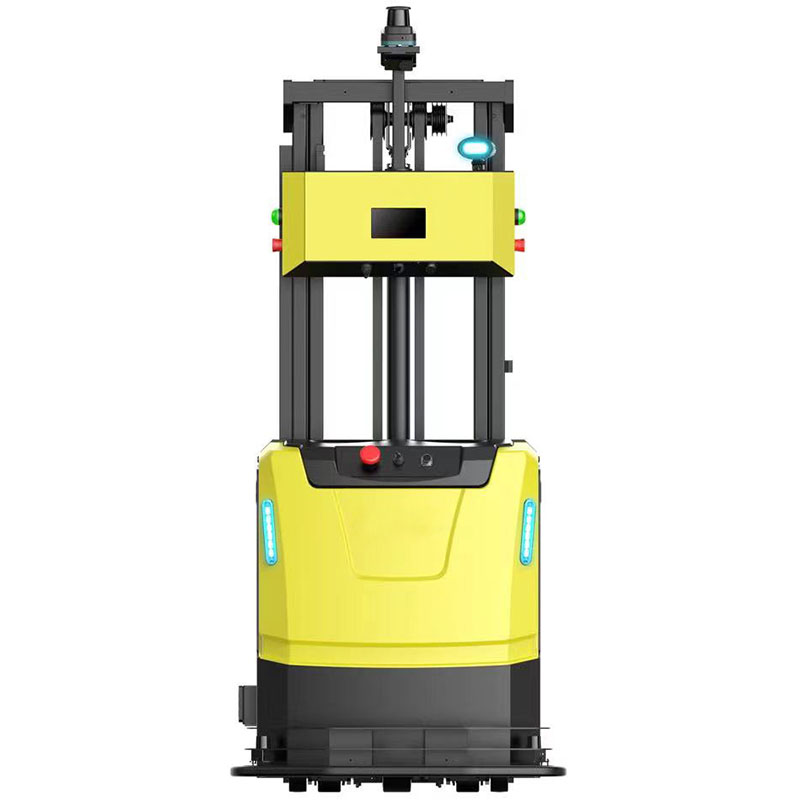

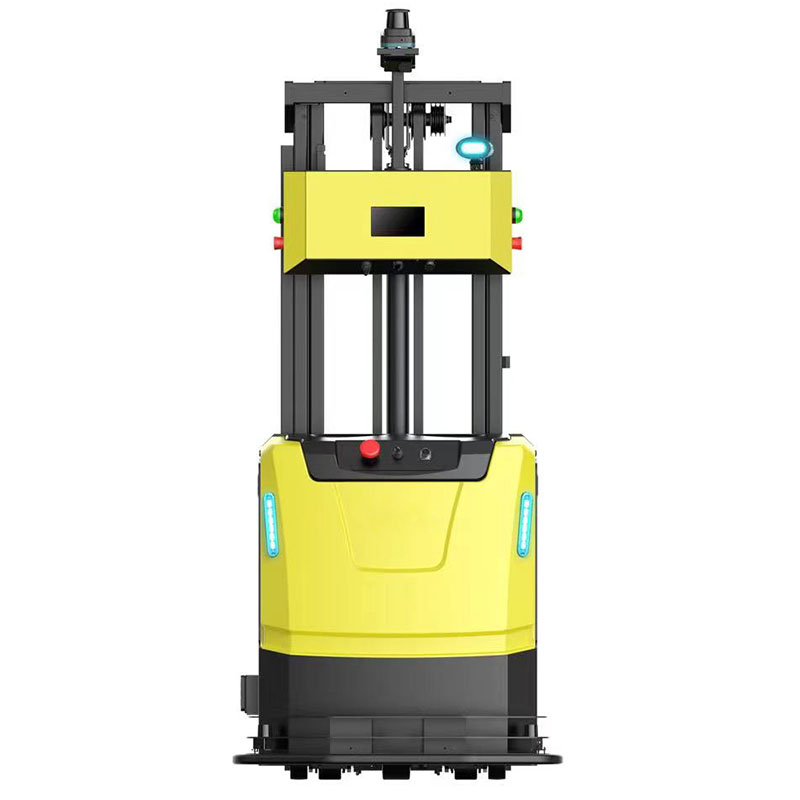

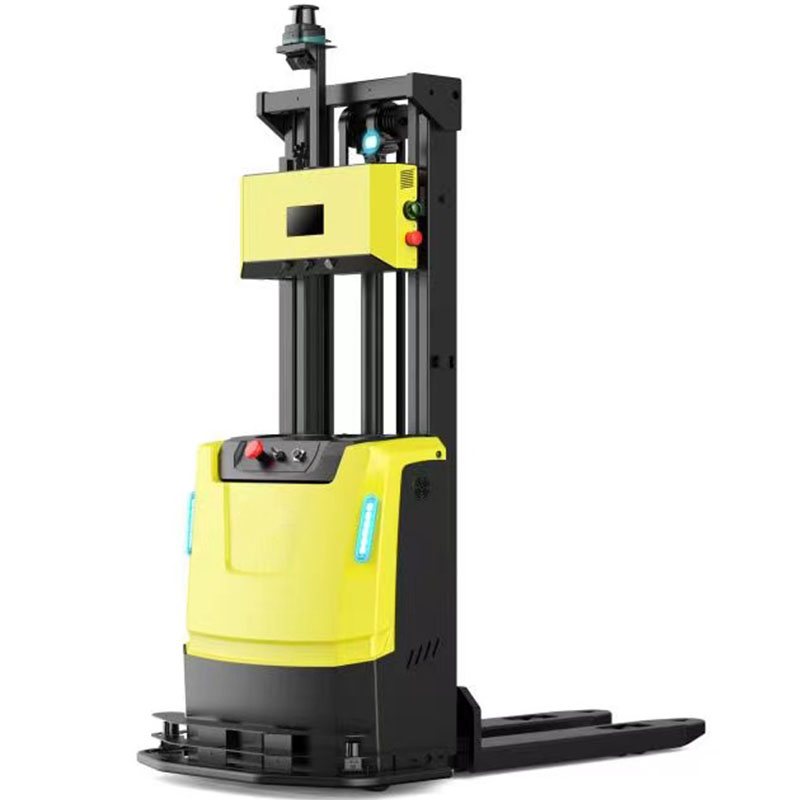

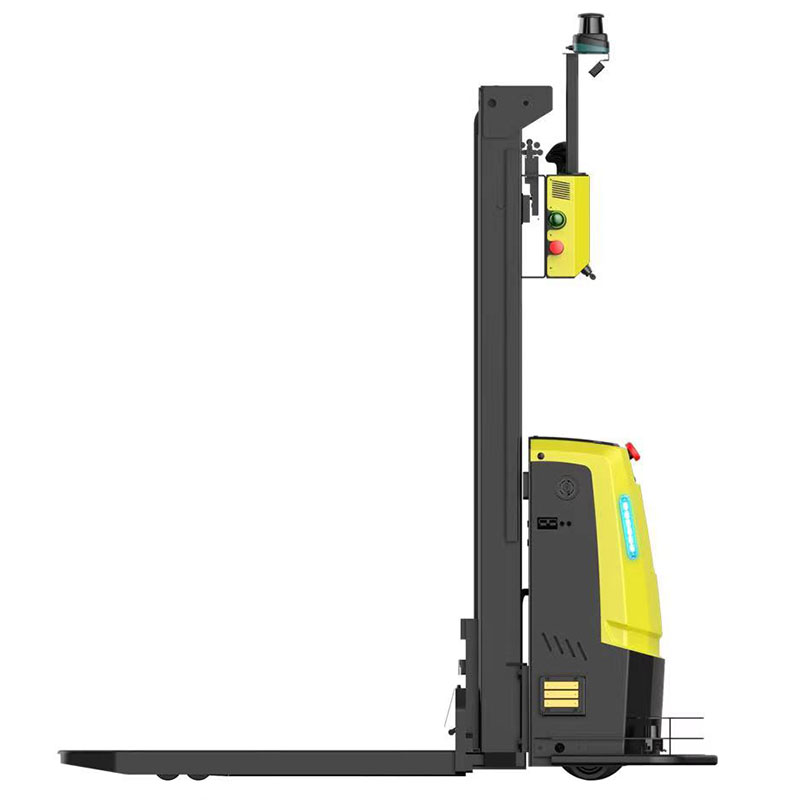

Smart unmanned forklift AGV for moden warehouse

※ Exquisite drive module design, no slippage, light and free operation;

※ In-situ rotation technology, one-way traction can easily realize two-way round-trip operation;

※ The magnetic navigation guidance technology is classic and stable, and draws a clear line from "derailment";

※ Embedded industrial-grade control system, the control structure is simple to be truly stable;

※ There are a variety of external communication methods, with wireless remote control, wired, wireless, bluetooth, wifi;

※ In-situ slewing technology, turn around and just go in place, no need to go around in circles;

※ Wide load selection, 5kg-5T class, can be widely used in electronic factories, SMT workshops, garment factories and other occasions;

※ The car body is equipped with operation buttons, which are easy to operate (press and go, and stop automatically when you arrive at the site), no professional training is required;

※ The running speed can reach 0.8m/s, which can meet the vast majority of workshop logistics needs;

※ The structure of the car body is strong and reasonable, and it can directly carry material frames, material racks and even bulk materials;

Provide user-friendly client APP, modify and set up without needing to teach suppliers, fool-like operation.

(Automated Guided Vehicle, AGV for short), also commonly referred to as AGV trolley, refers to a transport vehicle equipped with automatic guidance devices such as electromagnetic or optical, which can travel along a prescribed guide path, and has safety protection and various transfer functions. There is no need for a driver's truck in the application, and the rechargeable battery is used as the power source. Generally, its travel route and behavior can be controlled by a computer, or its travel route can be set up by using an electromagnetic path-following system. The electromagnetic path-following system is attached to the floor, and the unmanned vehicle relies on the information brought by the electromagnetic track. Make moves and actions.

Product Selection

TR-FL-F150-L

TR-FL-F200-L

TR-FL-F300-L


Basic Parameters

Overall Dimensions L X W X H (mm)

2170*930*2250

2222*1090*2250

2820*1450*2250

Communication Mode

802.11b/g/n/ac

5G

optional

Turning Radius (mm)

1790

1830

2350

Lifting Height (mm)

1500/3000/4500

Outer Width of Fork (mm)

680 (Customization is supported

)

Net Weight (kg)

780

1280

2500

Rated Load (kg)

1500

2000

3000

Minimum Clearance between Fork and Ground (mm)

87

Safety and Protection Features

Laser Obstacle Avoidance

Visual obstacle avoidance

Protection Strip Detection

Tray Placement Detection

Fork Detection

Emergency Stop Button

Alarm Indicator

Sound and Light Alarm

Motion Performance

Rated Operating Speed (m/s)

0~1.3

0~1.3

0~1.3

Rated Acceleration (m/s2)

0.5

0.5

0.5

Stop Position Accuracy (mm)

±10

±10

±10

Stop Angle Accuracy (°)

±1

±1

±1

Direction of Motion

Forward/Backward + Arc Turning

Minimum Passage Width for

Picking (mm)(1,100 X 1,100 pallets)

2600

2800

3200

Climbing Performance

5%

5%

5%

Battery

Performance

Capacity

24V/100Ah

24V/200Ah

24V/200Ah

Operating Time under Rated Working Conditions (h)

6~8

6~8

6~8

Charging Time (h)

Charging Time after

Full Discharge W 2

Charging Time after Full Discharge W 2

Charging Time after Full Discharge W 2

Others

Driving Mode

Steering Wheel Drive and Direction

Steering Wheel Drive and Direction

Steering Wheel Drive and Direction

Navigation Modes

SLAM

SLAM

SLAM

Autonomous Tray Recognition

O

O

O

Manual Operations

O

O

O

Because the AGV robot is a non-standard customized intelligent device, the load is 5kg-5T, and the appearance and size are different. Therefore, please contact us after a detailed evaluation and accurate quotation. The manufacturer's customized direct sales are specially explained here, please understand, thank you !
