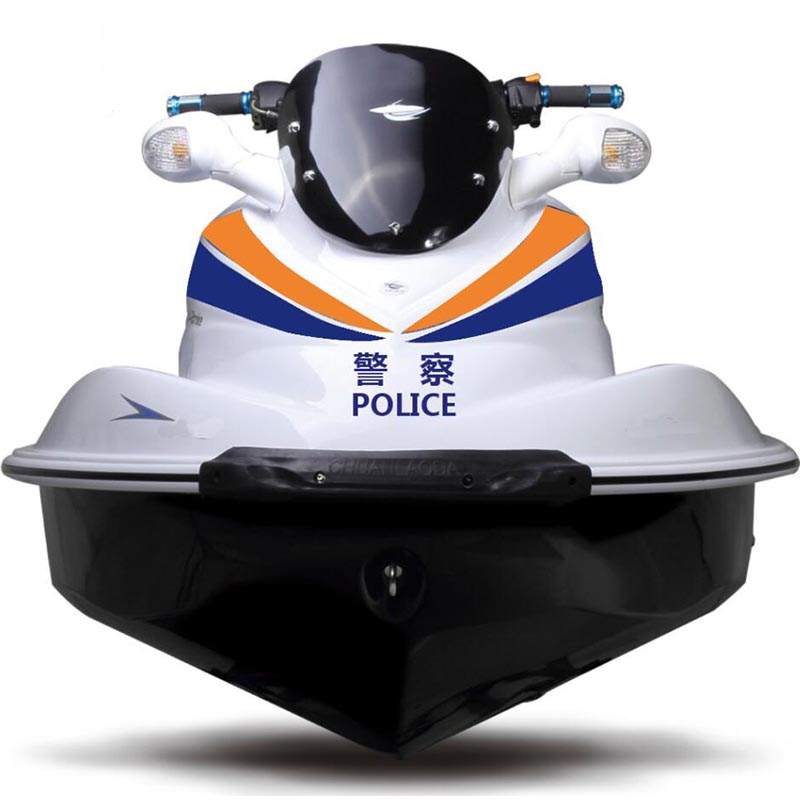

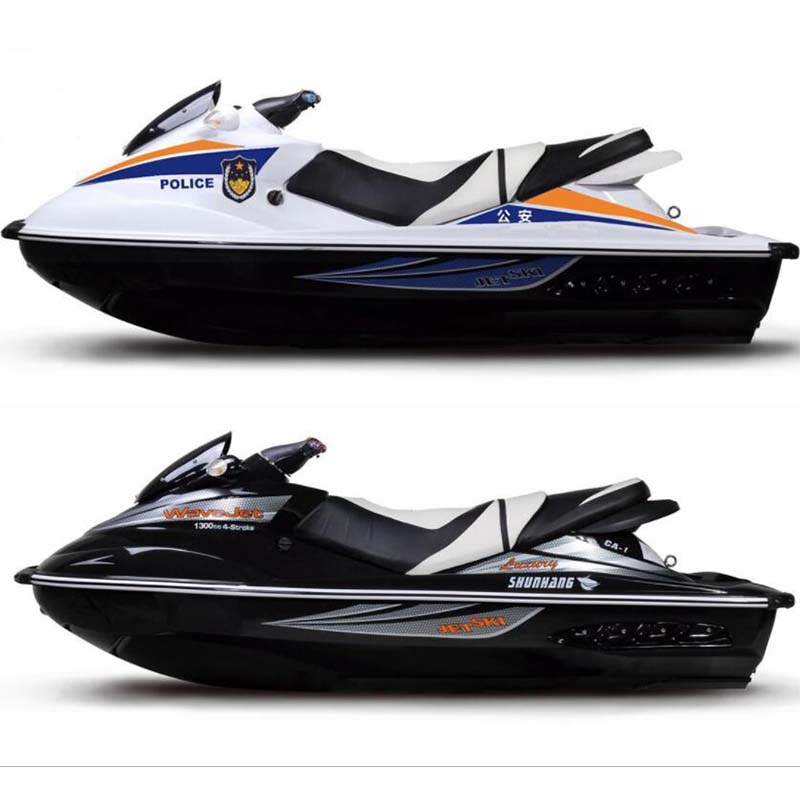

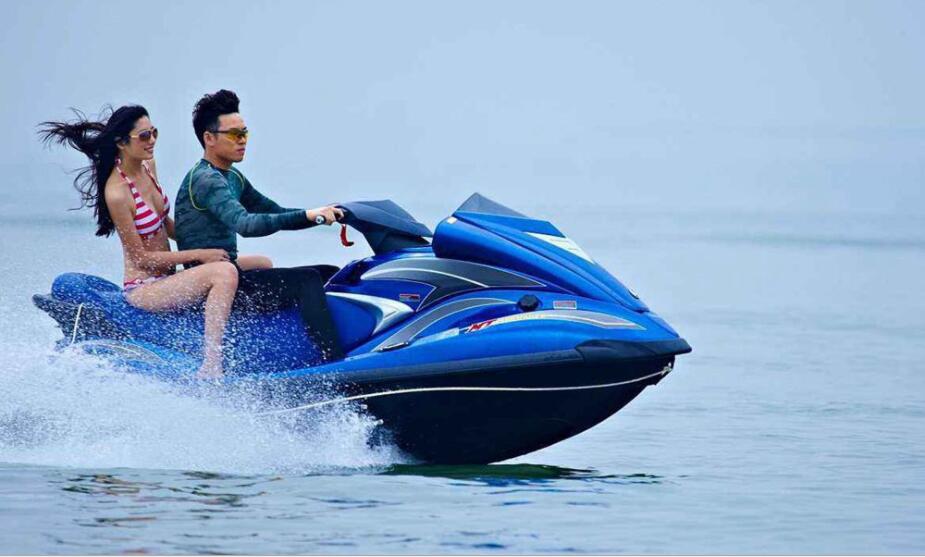

China best 1300cc high speed Motorboat

Engine:4 Stroke; Seats:3; Horsepower:> 300hp; Battery 12V, 36A
4 Cylinders; Color:Optional; Product Size:3100 * 1200 * 1100MM
Maximum load:200kg; net weight:300kg; engine displacement:1300CC
Maximum power:63KW(6000RPM); Single package size: 31X12X11 cm
Single gross weight:20.000 kg; Maximum power63KW(6000RPM)
Maximum torque11Nm(4000rpm); Lubrication system Dry oil
Cooling system Water cooling double loop; Start method Electric start ECU
Fuel tank capacity35L; Oil amount 3.5L; Starter motor380W

  • Item No.:

    TRM-OEM2
  • Payment:

    FOB/CIF
  • Product origin:

    China
  • Color:

    Black/White
  • Shipping port:

    ShenZhen
  • Lead Time:

    15
  • Min order:

    12
  • Product details


Specific technical parameters:

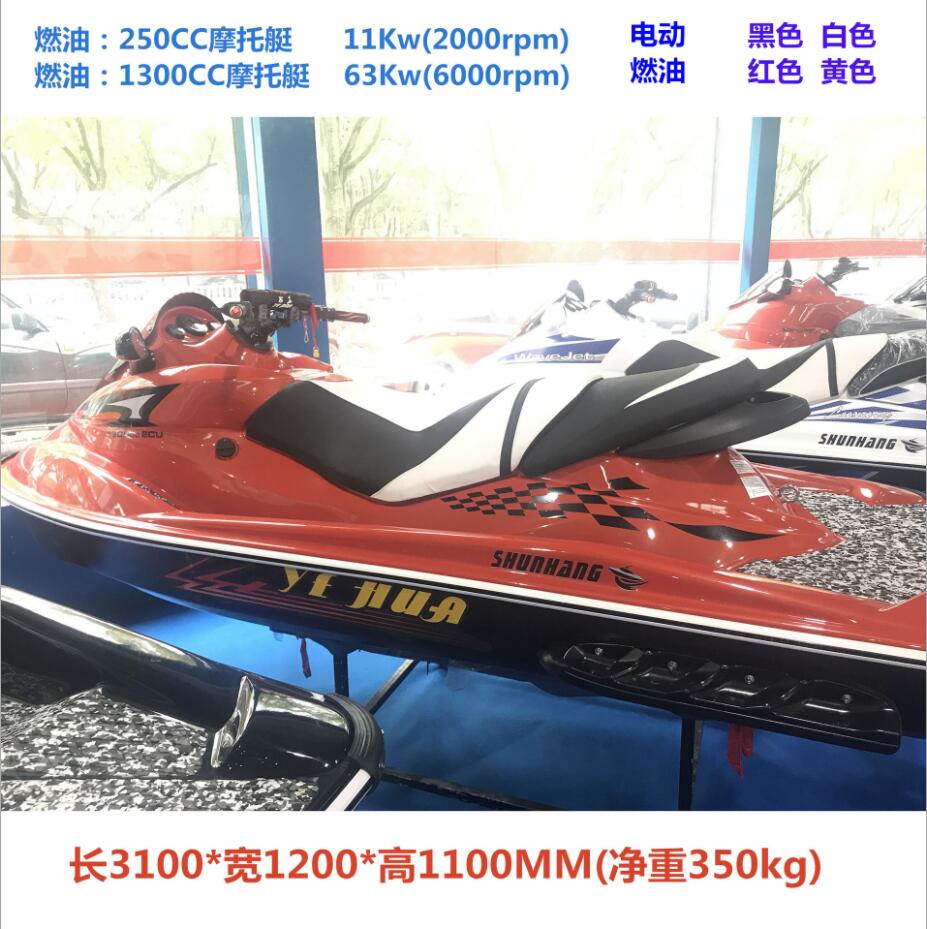

Dimensions

                    3100*1200*1100MM
             Passengers                     3 people
             Max loads                     200kg
             Net.Weight                     300kg
             Engine                     Suzuki four-stroke
             Cylinders                     4
             Emissions                     1300cc
             Max Power                     60Kw
     Compression ratio                     9.5:1
     Lubrication system                 Dry bottom
        Coolant system          Water cooling double cycle
      Starting method               Electric start



Drives System

 Propulsion system

   Jet pump Brake and reverse gear  Intelligent brake reverse gear system
 Jet pump type    Single-stage axial flow pump  impeller  Stainless steel 15.5cm



Fuel and oil/electrical system

 Recommended fuel

 ≥93# Petrol

 Starter motor

 380W

 Fuel tank capacity

 35L

 Battery

 24V,36A

 Engine oil

 3.5L

 Quantity/20GP/40GP

 4 unit/12 unit


Motorboat

MotorboatBrief description of motorboat

undefined

Intelligent brake and reverse gear system (IBR)



The intelligent brake and reverse gear system provide you with the power to stop the boat and unparalleled maneuverability. The operation of using the smart brake and reverse gear system is very simple. The brake switch is located on the left hand handle. If the motorboat is in the forward state, pressing the combination switch button on the left hand handle will cause the ship's speed to decrease, and release the switch button to automatically reset forward. If it is in a stopped state, press and hold the button to go backwards, and the control switch is precisely located at your tip of the food, so you do not need to leave the handle and look away from the water surface, which provides a higher level of safety and intuitiveness Riding. With smart brake and reverse gear system, you have the ability to stop 30 meters earlier than other motor boats.

undefined

Suzuki 1300ccECU engine



The engine uses a four-cylinder, four-stroke Suzuki ECU electronic injection high-speed, high-power gasoline engine. The closed-loop electronically controlled fuel injection system controls the air-fuel ratio and saves energy and fuel. The products have passed the EU CE certification, which fully guarantees safety performance.

undefined
       One-time compression molding bottom hull and hull



Innovative integral molding technology, the upper and lower shells are formed at one time, and are reinforced with special-shaped materials and glass fiber reinforced plastics. It has light weight, corrosion resistance, and strong impact resistance, ensuring the stability and water flow of the hull. The overall line is smooth, stylish, beautiful, and the surface is hard and bright. Compared with the old craft, the hull made of glass fiber reinforced plastic is more tough and safer.

undefined

 Super large flow jet pump propulsion system



The single-stage axial flow pump specially developed by Shunhang has excellent design and large flow rate. It is equipped with an embedded stainless steel impeller with a diameter of 15.5cm, which provides strong water surface adsorption and acceleration performance for motorboats.

undefined

 Sports seats



The seat is designed with an ergonomic concept to provide comfortable support for your extreme driving environment. The color-blocking design shows more personality and fashion

undefined

     Streamlined stabilizer



Increase the sliding surface of the motorboat, increase stability, help reduce the hull roll, and make turning and control more precise when sailing on undulating water.

undefined
Adjustable inclination     direction rod



The steering rod can be adjusted according to personal preference

undefined

      Towing rope hook on both of the boat head and tail



Whether it is dragging in an emergency or dragging a surfboard, it is practical

undefined

   Adjustable rearview mirror with light



Wide-angle adjustable rear-view mirror with turn indicator, allowing you to see the situation behind you clearly

undefined

Waterproof high-performance LCD instrument



The liquid crystal instrument displays the driving speed, fuel quantity and kilometers, and has light signal instructions.
