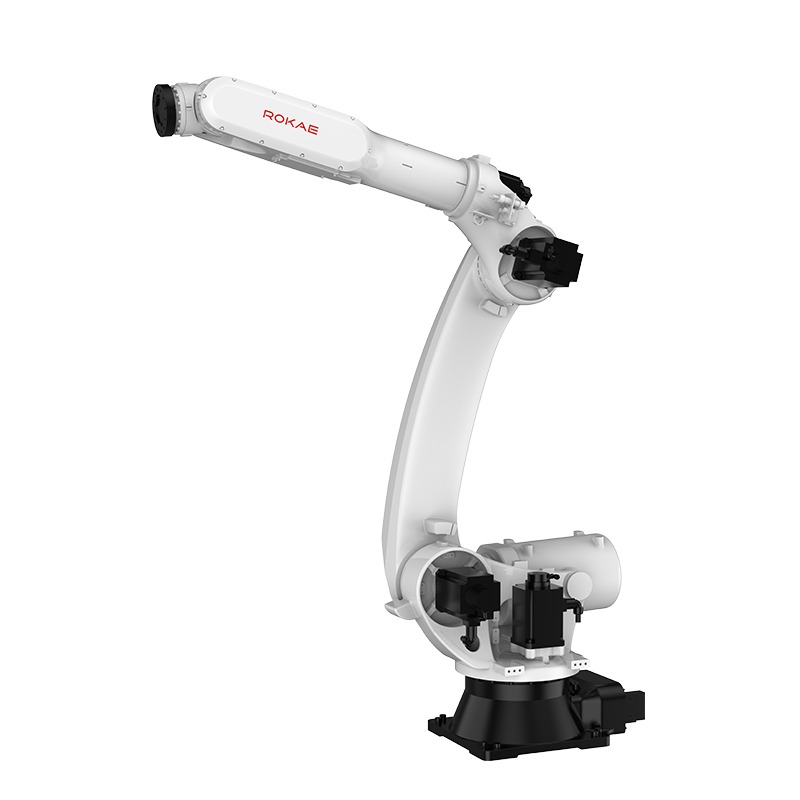

ROKAE NB220 Series 6-axis industrial robot: 150 kg payload, 3201 mm reach, repeatability ±0.08 mm, IP rating IP65(Wrist IP67), AC servo drive, 6 DOF.

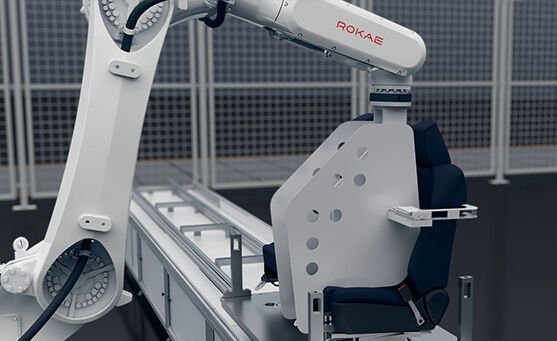

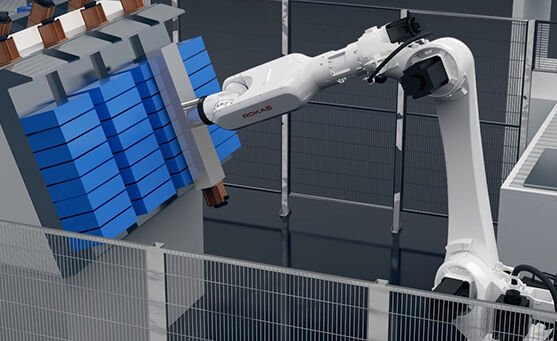

Applications: loading/unloading, deburring, gluing, assembly, inspection, sorting, handling, palletizing.
Brand:
TROYItem No.:
NB220Payment:
T/T, L/CProduct origin:
ChinaColor:
whiteShipping port:
ShenZhenLead Time:
30
TEL: +86-4000988557;
Teams: gfreex@hotmail.com;
WeChat: Troysupply_com;
QQ ID: 8936906.
| Payload | 150 kg |
| Weight | About 1488 kg |
| Reach | 3201 mm |
| DOF | 6 |
| IP Rating | IP65(Wrist IP67) |
| Drive Mode | AC servo |
| Repeatability | ±0.08 mm |
| OperatingTemperature | 0℃ to +45℃ |
| StorageTemperature | -10℃ to +55℃ |
| MountingMethod | Floor |
| AIR | 2-Φ12, 8bar |
| Signal | 24 channels (30V, 0.5A) |
| Axis | Range of Motion | Maximum Speed |
| Axis 1 | -185° to +185° | 130°/s |
| Axis 2 | -65° to +85° | 115°/s |
| Axis 3 | -185° to +80° | 120°/s |
| Axis 4 | -200° to +200° | 180°/s |
| Axis 5 | -130° to +130° | 180°/s |
| Axis 6 | -360° to +360° | 260°/s |
