high performance and low cost of 6 dof robotic arm

Main Products:

Commercial robots, teaching robots (teaching robots for universities, middle schools and elementary schools), collaborative six-axis robots, photography and video robots, beauty and body robots, milk tea robots, auto parts, elevator parts, auto parts inspection tools, precision hardware, medical equipment accessories etc.

  • Item No.:

    TRC650
  • Payment:

    CIF/FOB
  • Product origin:

    China
  • Color:

    White
  • Shipping port:

    ShenZhen
  • Lead Time:

    7
  • Product details

Functions and Features:

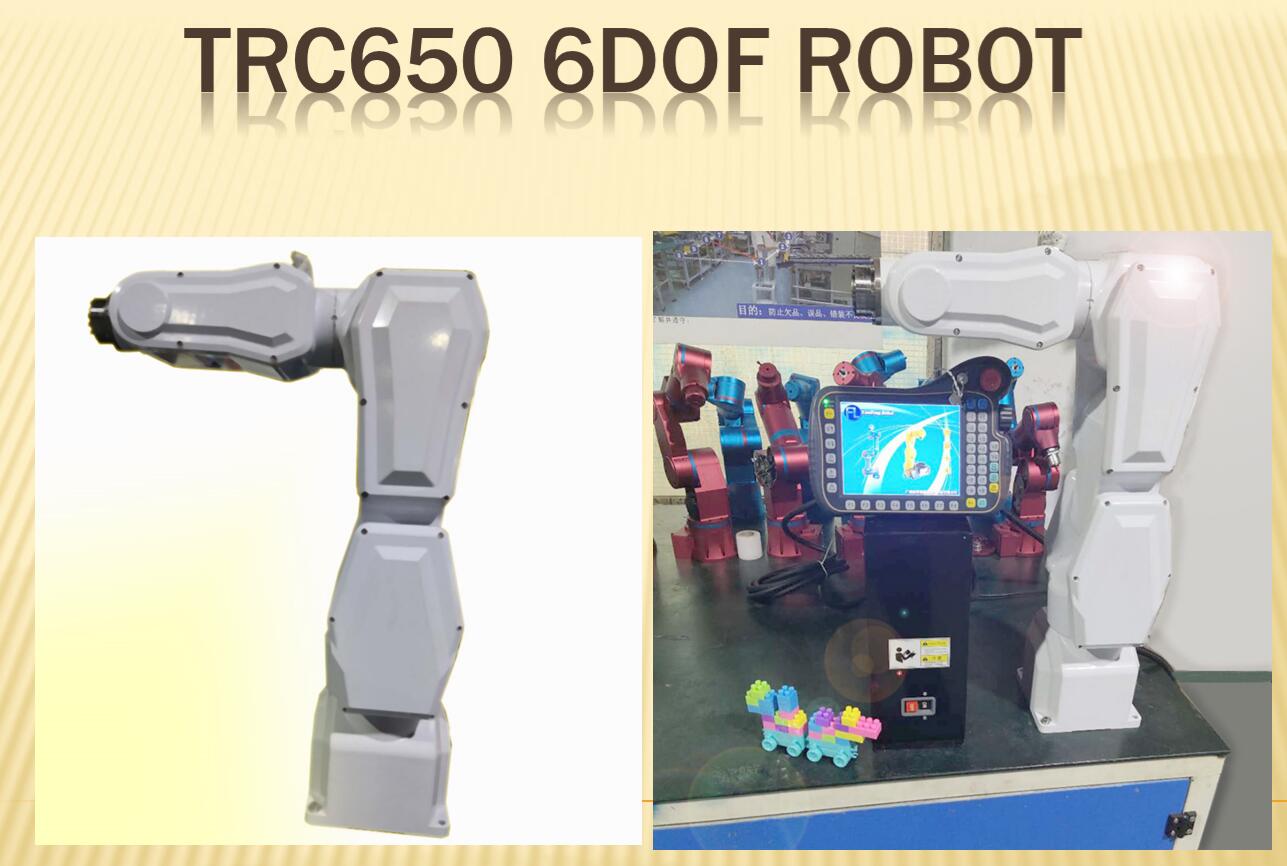

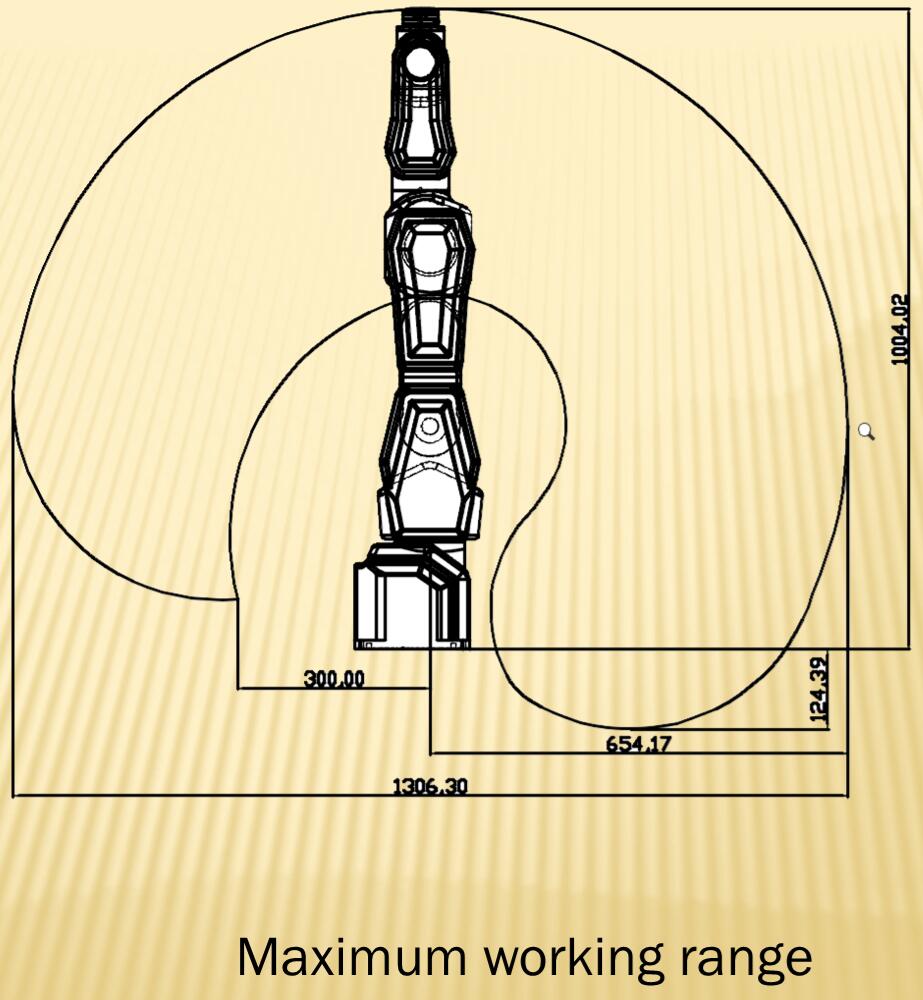

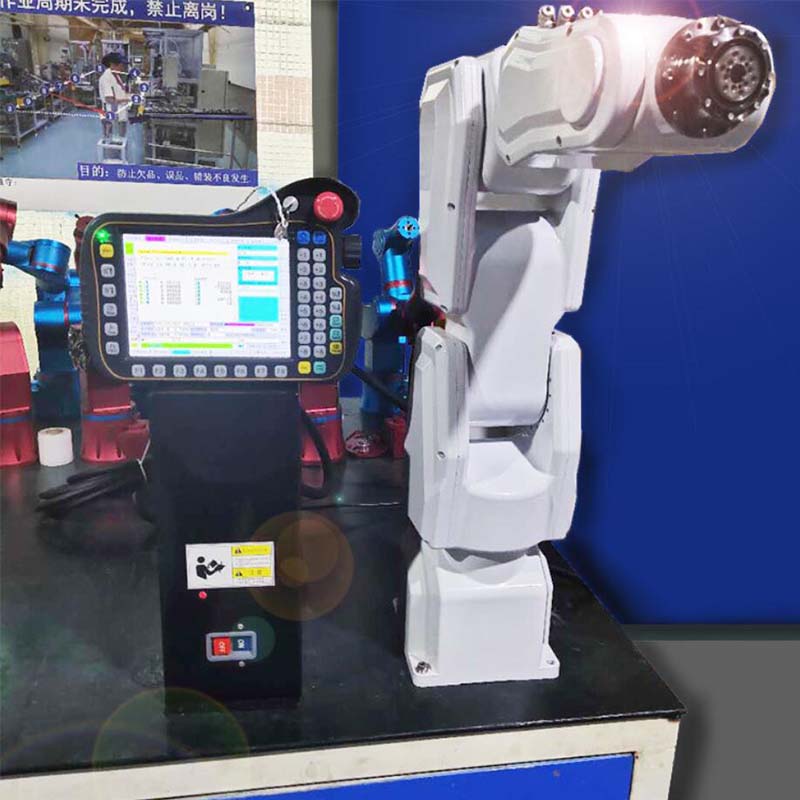

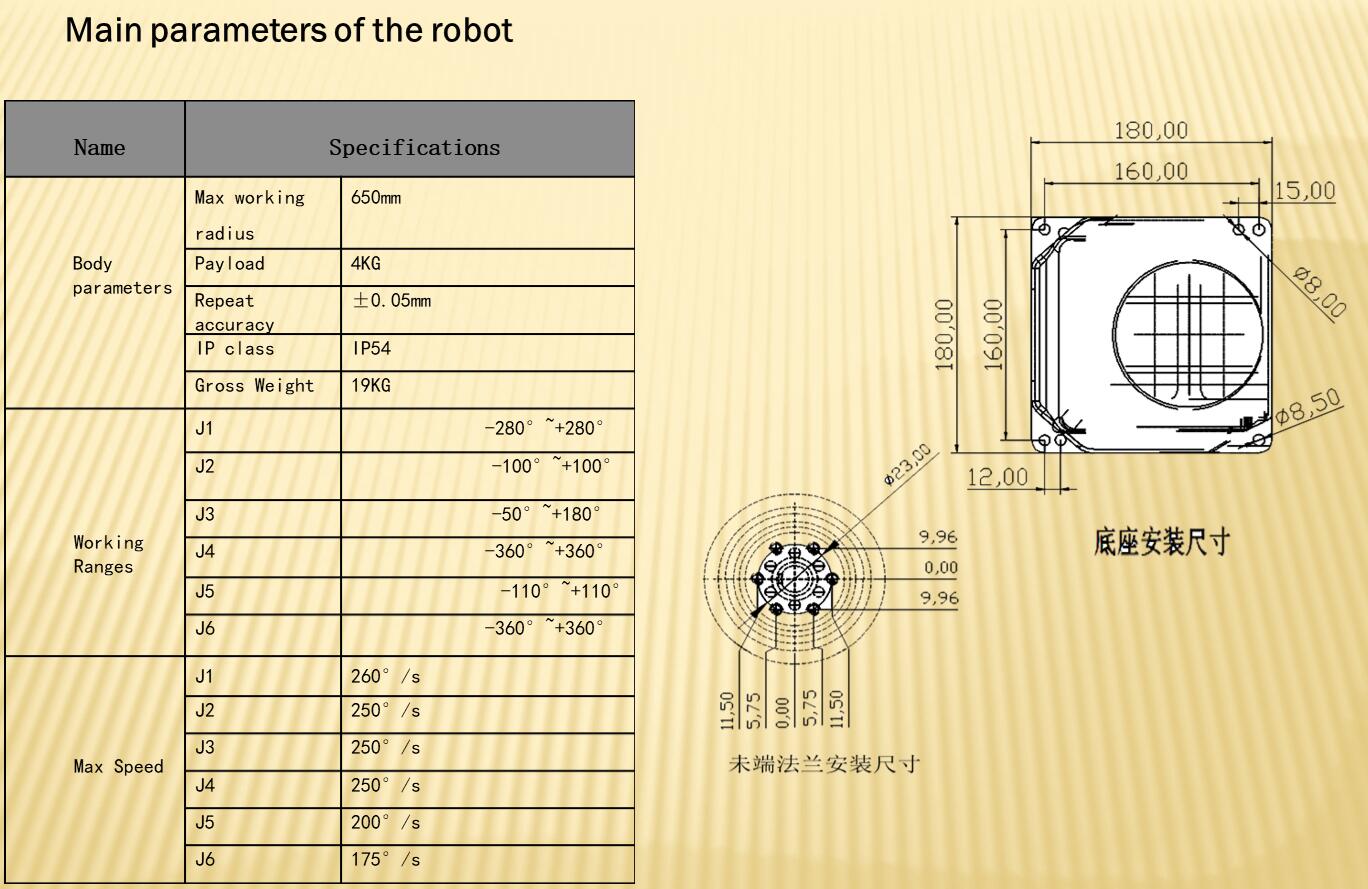

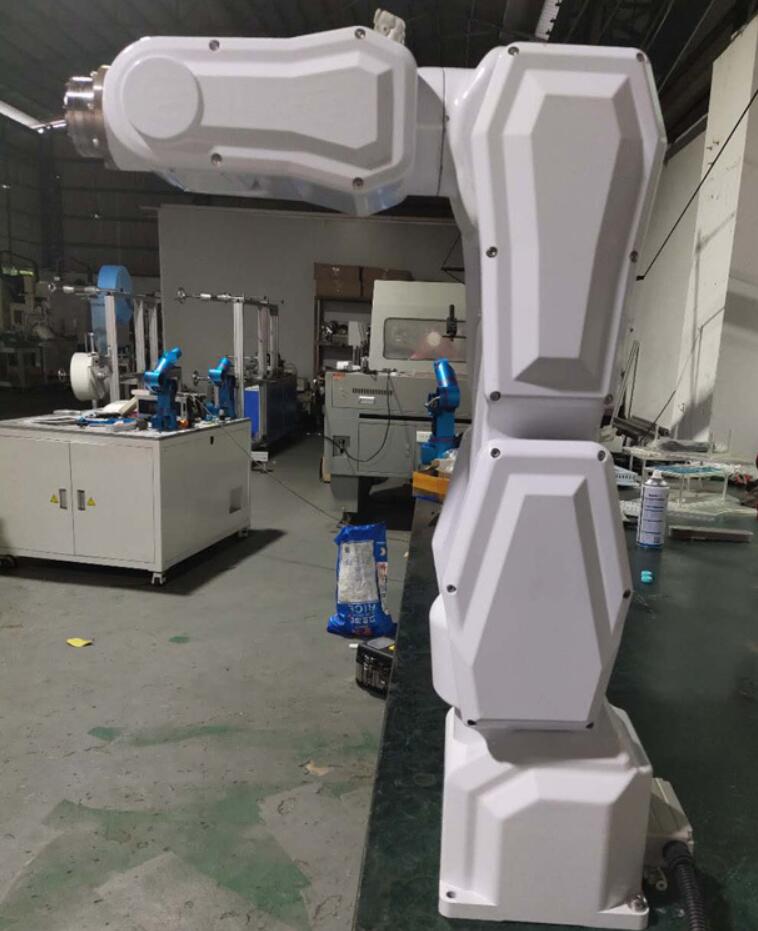

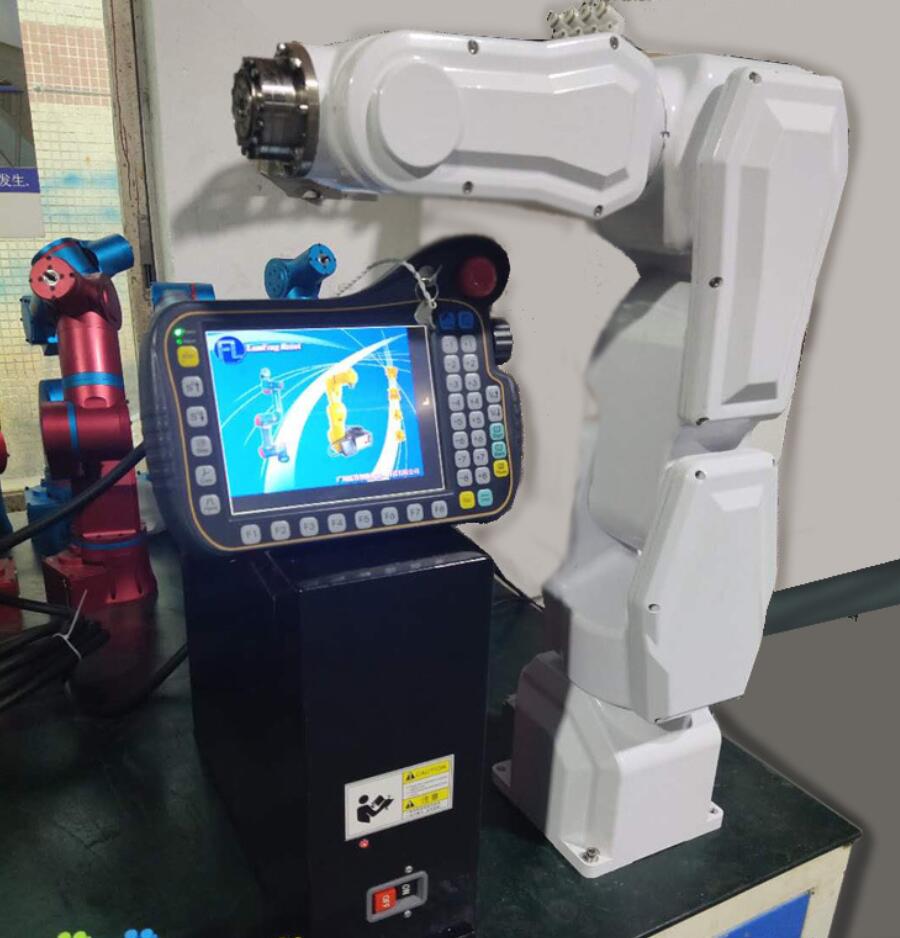

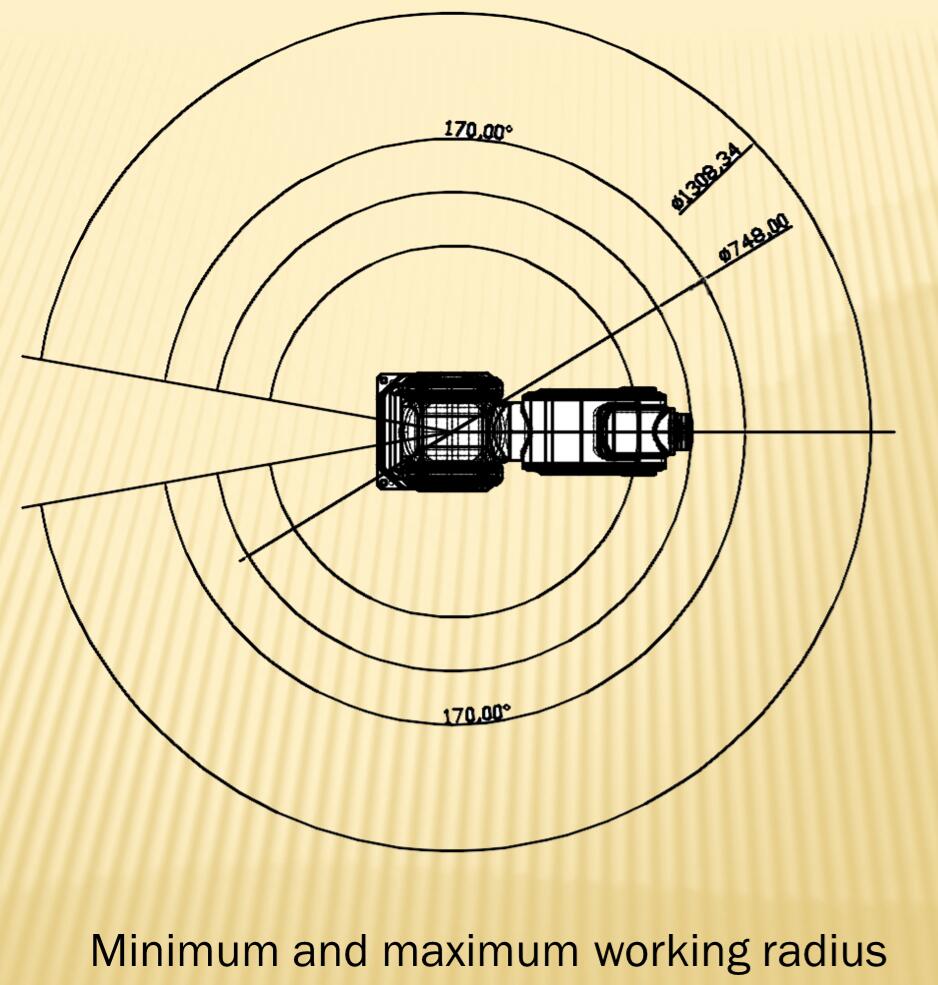

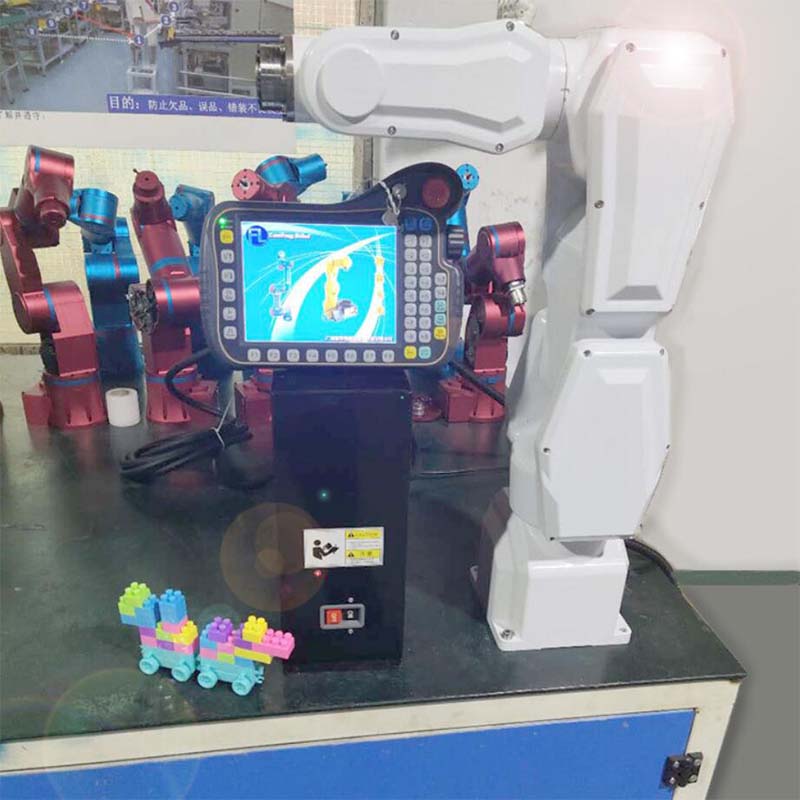

TRC650 is lightweight, miniaturized, and full-featured; it condenses all the functions of industrial robots used in the company's first-line manufacturing workshops. The real robot control system is similar to the programming language rules of ABB/Yaskawa and other brands. Human milk tea machine, unmanned coffee machine, unmanned ice cream machine, unmanned bartender and other new retail equipment). The six-degree-of-freedom robot is a six-axis robot developed for commercial use. The robot has a compact structure, small size, light weight, its maximum load is 4KG, and its arm span is 1004mm. The wrist adopts a hollow structure, which is more convenient for wiring and more flexible. TRC650 uses internal power cord and trachea to make the robot arm safer and more beautiful when working!


Reducers:

The reducer used on the robot is a precision harmonic reducer.

1 axis: HS25-80; 2 axis: HS20-100; 3 axis: HS17-80; 4 axis: HD17-50; 5-axis: HD14-50; 6-axis: HD14-50.

Its main features are:

1. Ultra high precision.

2. Super long life.

3. Efficient transmission.

4. Small size and light weight;

5. High torque capacity and low noise;

6. Few parts and easy installation;
