4-6 Axis Industrial Robot control system-S80 plus 2 additional axis

CRP S80 Robot Controller supports upto 8 axis control (pulse type). It's designed for economic robot cabinet to be build up. CRP is good at welding application, so MIG/TIG welding solution can be provided to our customers.
  • Item No.:

    S80
  • Payment:

    FOB
  • Product origin:

    China
  • Shipping port:

    ShenZhen ports
  • Lead Time:

    7 days
  • Product details

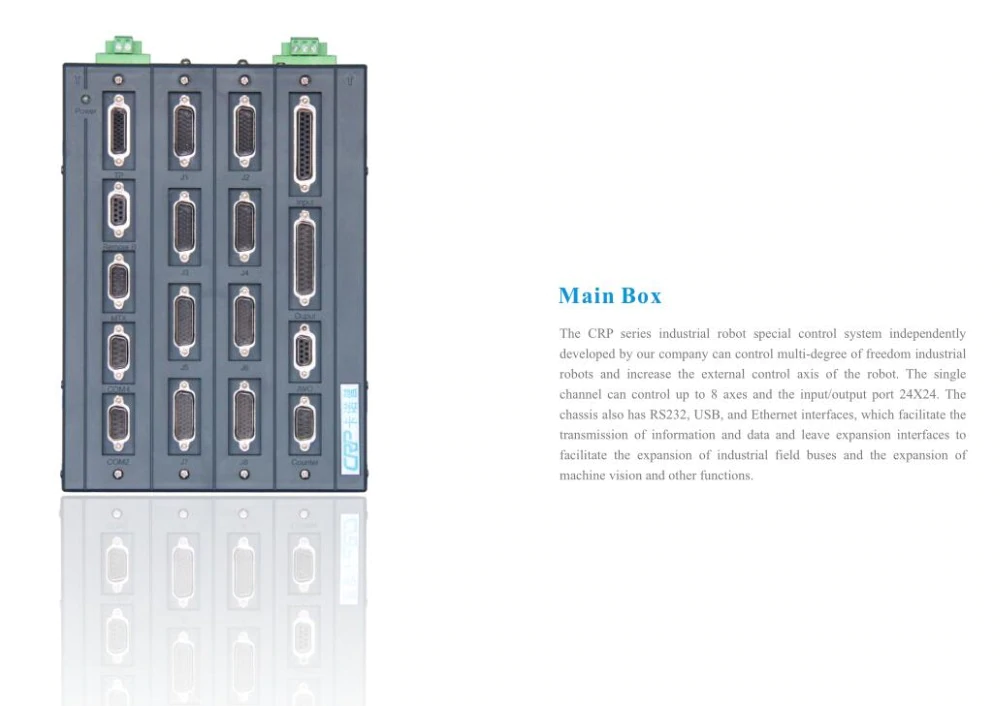

S80 Industrial Robot control system

S80 industrial robot control system adopts the international popular open
hardware and software platform. Equipped with a dedicated multi-axis motion control
card, data acquisition card, and robot-specific terminals and safety interfaces
independently developed; modular software design for different ontology structures,

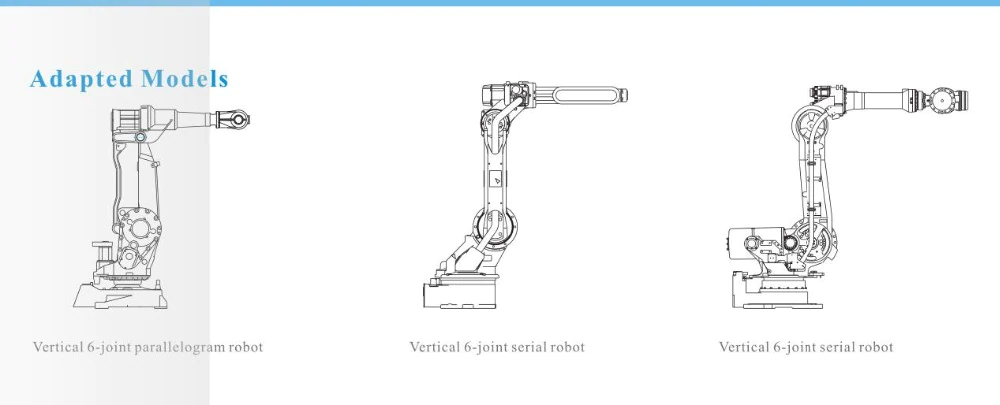

application industries, functions, etc. It can realize the control of multi-joint serial
robots, vertical multi-joint parallelogram robots, vertical multi-joint L-shaped wrist
robots, vertical multi-joint spherical wrist robots, polar robots, multi-axis special-
purpose machines, etc. , spraying, pelletizing, cutting, polishing and other fields. The
standard computer bus can extend bus, machine vision systems etc.
TIM20180605110648

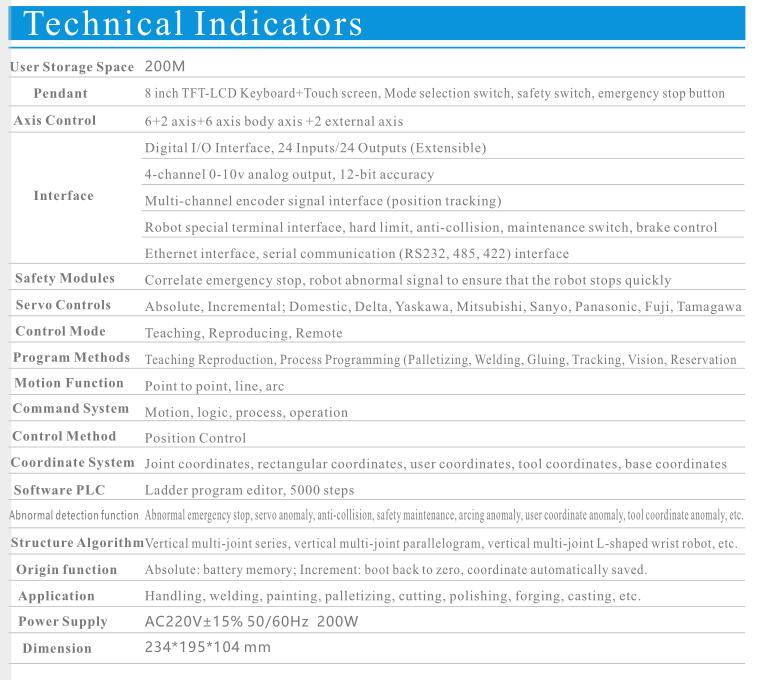

Specifications:

★ Optimization of structural algorithms to adapt to multiple structural forms of ontology control
★Modular function settings, suitable for a variety of application situations
★8 axis control,extenal axis(walking axis、rotator)control
★Adapts to various incremental and absolute servo
★Software PLC, Convenient logic control
★Process function, simple programming and easy operation
★Improved computer bus connection to ensure reliability and practicality
★Safety module to ensure safe robot production
★Open structure, synchronized international level, convenient function expansion


TIM20180605110955

TIM20180605113018

TIM20180605110900

TIM20180605111104
