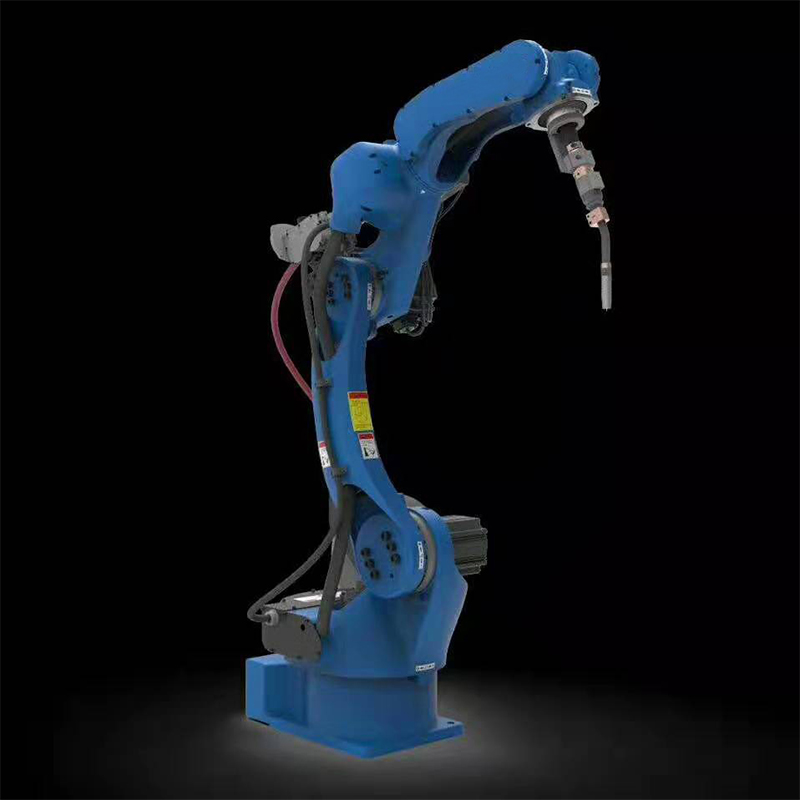

China Best TIG Welding Robot with Water coolant welder EtherCat bus(10kg 1400mm) CRP control system

TIG welding robot is designed for thin metal sheet such as alumium or thin steel.
  • Item No.:

    TR1010A-14T
  • Payment:

    FOB
  • Market price:

    $13500
  • Price:

    $9998
  • Price range:

    10 - 20/$0
  • Product origin:

    China
  • Color:

    Blue
  • Shipping port:

    ShenZhen ports
  • Lead Time:

    20 days
  • Product details

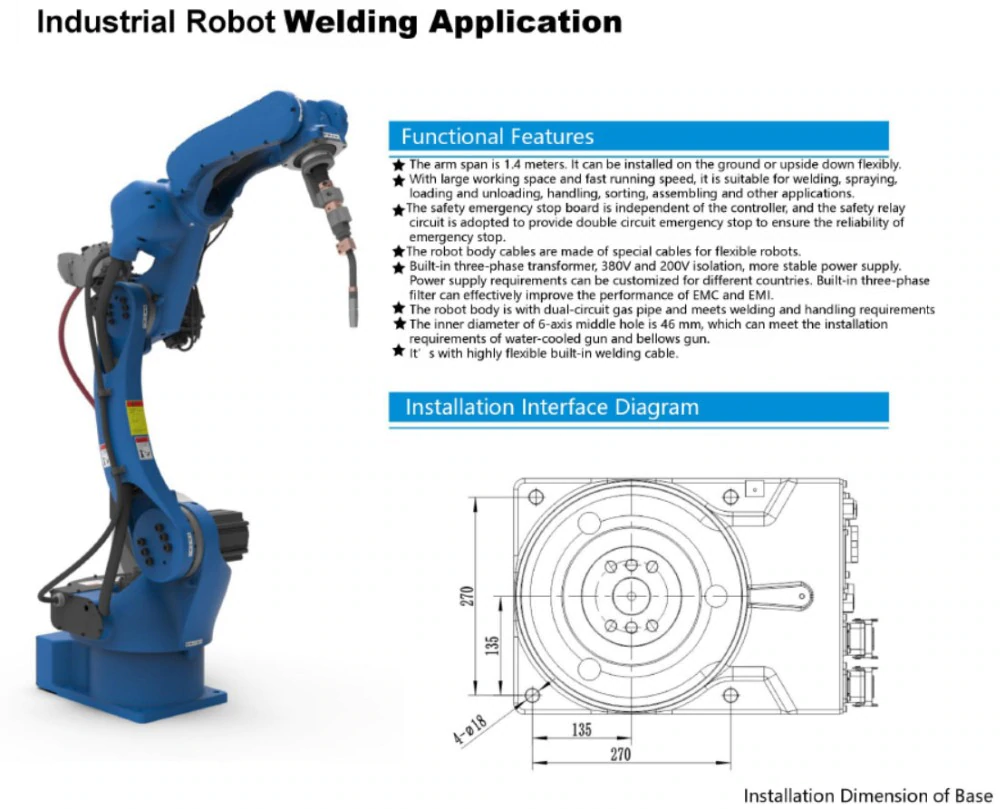

Features:

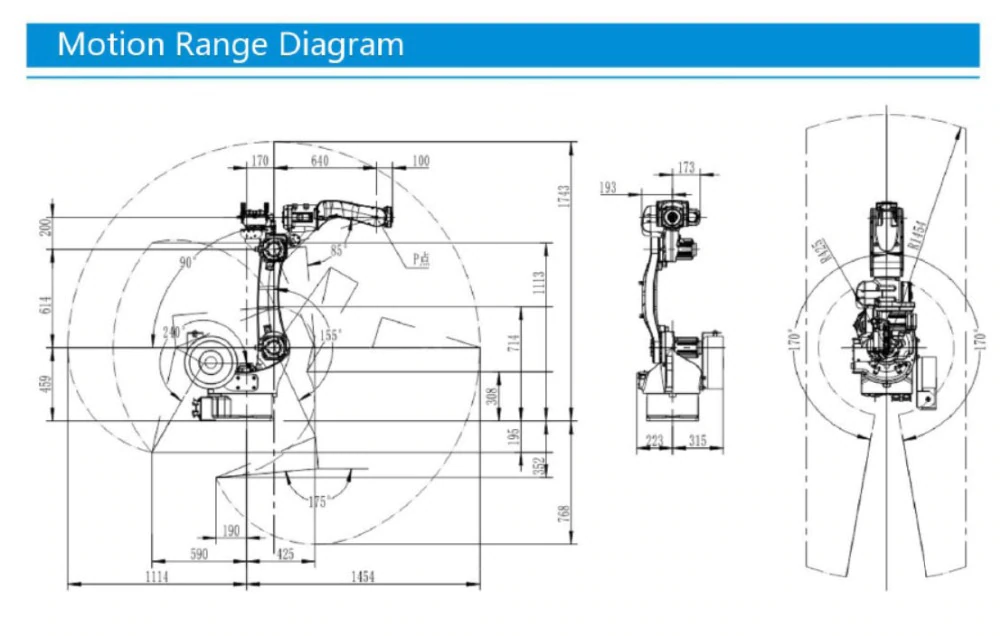

· With a wingspan of nearly 1.4 meters. The design is highly compact and offers the flexibility to choose between floor-mounted or inverted installation.
· Large working space, fast running speed, high repeat positioning accuracy, suitable for welding, spraying, loading and unloading, handling, sorting, assembly and other applications.
· Equipped with a safety emergency stop board independent of the control system, it adopts a safety relay circuit and provides a dual-circuit emergency stop to ensure the reliability of the emergency stop.
· The main cable is a special cable for a flexible robot.
· Built-in three-phase transformer, 380V and 200V are isolated for more stable power supply. Built-in three-phase filter, effectively improve EMC and EMI performance.
· The body provides dual-circuit air pipes to meet the needs of welding and handling.

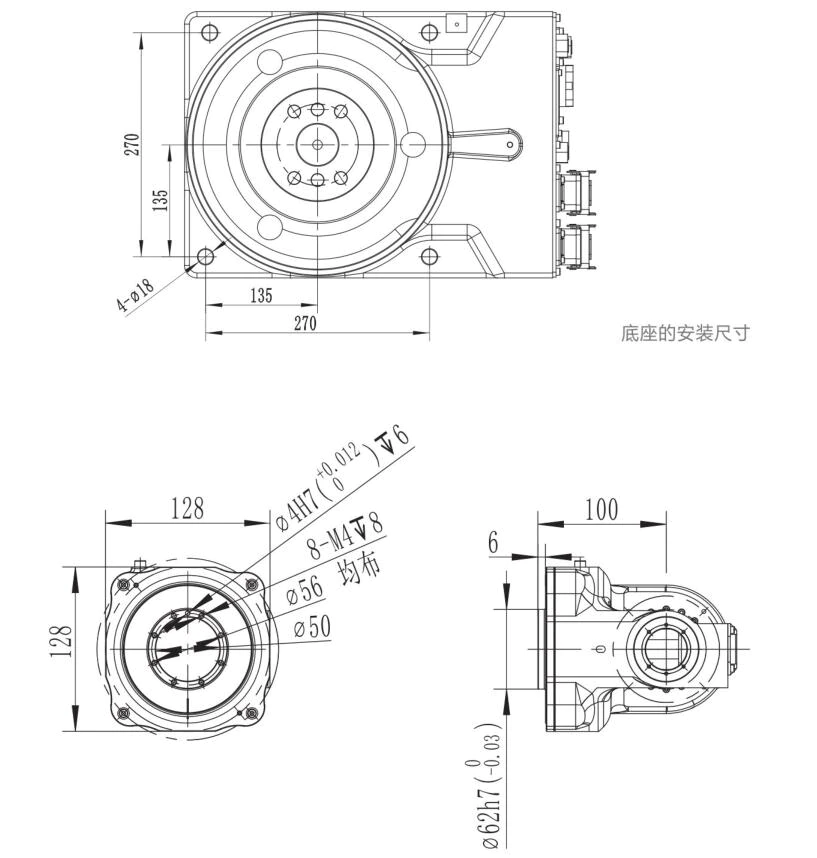

· The inner diameter of the 6-axis center hole is 46mm, which can meet the installation requirements of water-cooled guns and bellows guns.
· Built-in high-flex welding cable.

The advantage of this TIG Welding Robots: Reduce fabrication cost, Fully Mounted,Small Footprint, Ready to Weld Model, Easy to Use.



industrial welding robots

32


TIM20190226172908

456

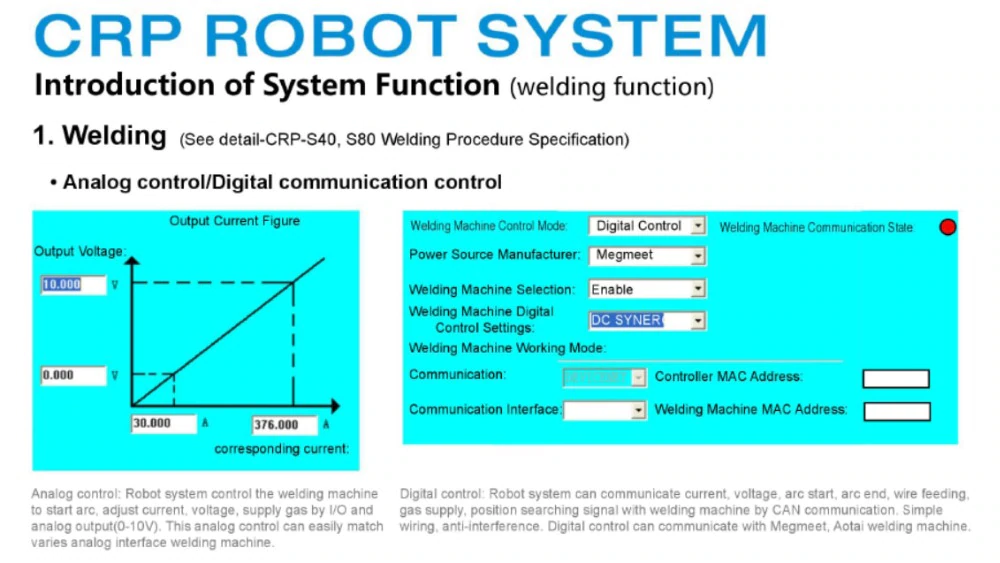

CRP welding 3

_20190226185308

_20190226185315
