/LBBBD Industrial 4 axis SCARA robot 4kg payload 800mm working radius

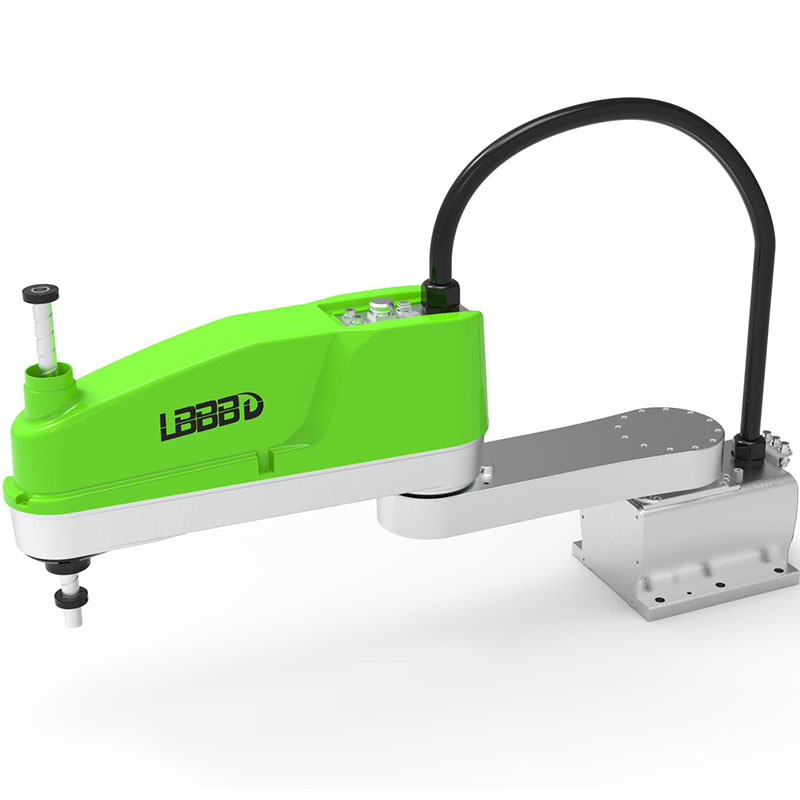

LBBBD Industrial 4 axis SCARA robot 4kg payload 800mm working radius

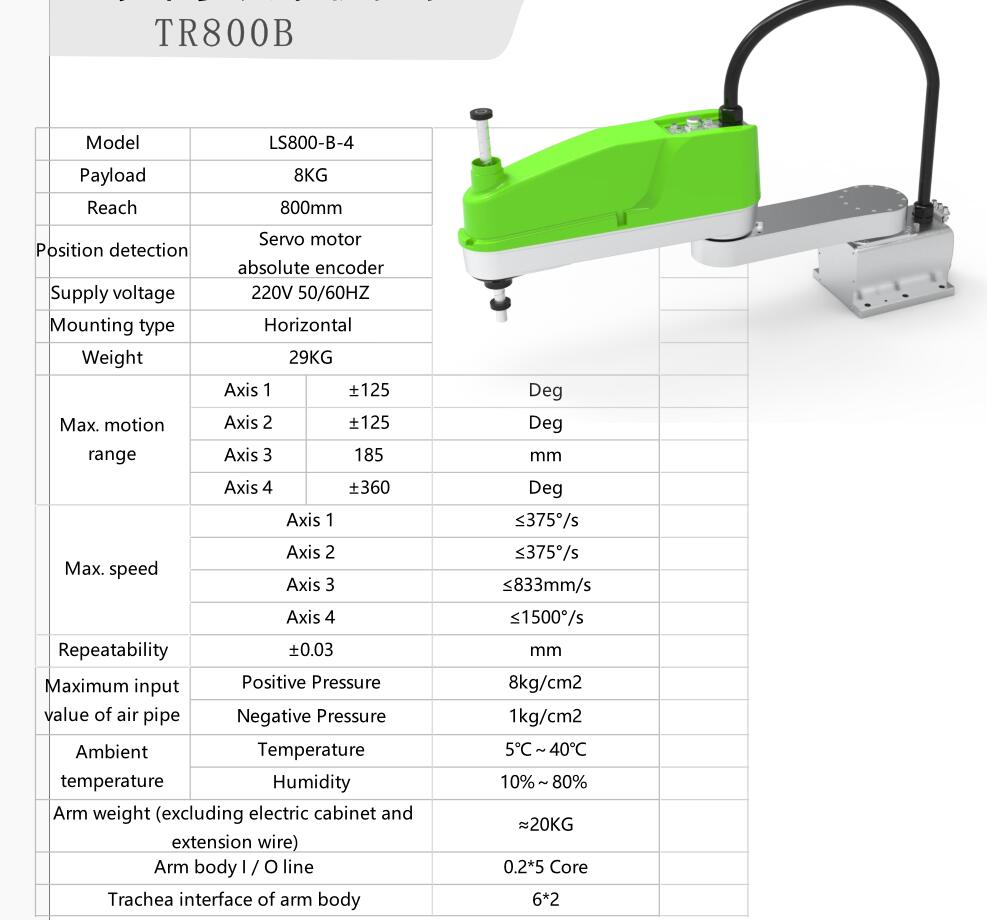

TR800B four axis SCARA industrial Robot:
The robot is a multi-joint four-axis robot with complete independent property rights of LBD. It uses a high-performance controller to control the robot to achieve high-speed point motion, spatial linear interpolation motion, spatial arc interpolation and other functions. It is suitable for handling, loading and unloading. , Spot welding, gluing and other industrial occasions.
  • Item No.:

    TR800B
  • Payment:

    FOB
  • Product origin:

    China
  • Color:

    Green Orange and White.
  • Shipping port:

    Shen Zhen
  • Lead Time:

    15
  • Min order:

    10
  • Product details

4-Axis Scara Robot

Adapt to industrial occasions, capable of stable and long-term trouble-free operation;
Capable of mass production;
The price adapts to my country's national conditions and meets the cost accounting needs of enterprises;
This industrial 4 axis robot is suitable for simple and repeated small load handling stations in enterprises, with high efficiency and cost savings;
Adopt high-performance controllers, which can control the robot to realize high-speed point motion, space linear interpolation motion, space arc interpolation and other functions;
Strong system expansibility, simple parameter configuration and easy maintenance;
Robot functional components based on high-performance processing chips ensure real-time control and scheduling of the system, and realize linkage and interpolation of multiple servo functional components;
The system interface is simple and generous, providing rich display and monitoring information;
The robot language command system is simple and easy to learn, and can meet most industrial needs.


Metal processing industry: blanking on punching machines, CNC loading and unloading, workpiece grinding, deburring;
Electronic products industry: assembly, IC chip testing and handling, spot welding, PCBA soldering, glue application, screwing, plug-in, workpiece polishing;
Automobile and motorcycle parts industry: handling, gluing, spot welding;
LCD/LED and glass industry: handling of glass plates, assembly of LCM modules, handling of silicon wafers and display screens;
Laser industry: spot welding, cutting;
Home appliance industry: assembly, handling and screwing of home appliance products;
Research areas: student teaching, school research and development.
