China top of smart painting robot working station

Smart Painting Robot description:

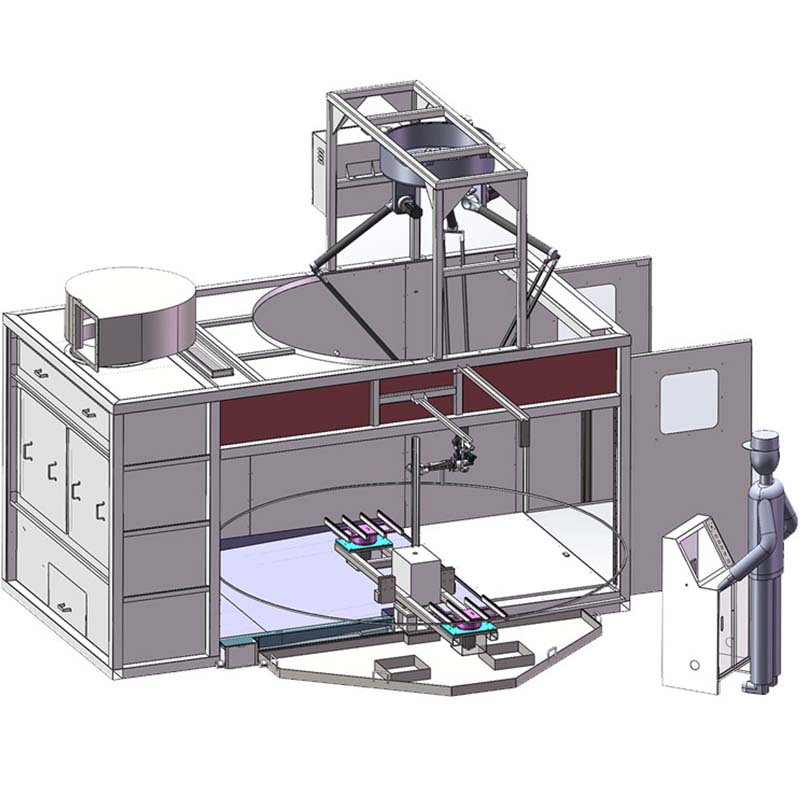

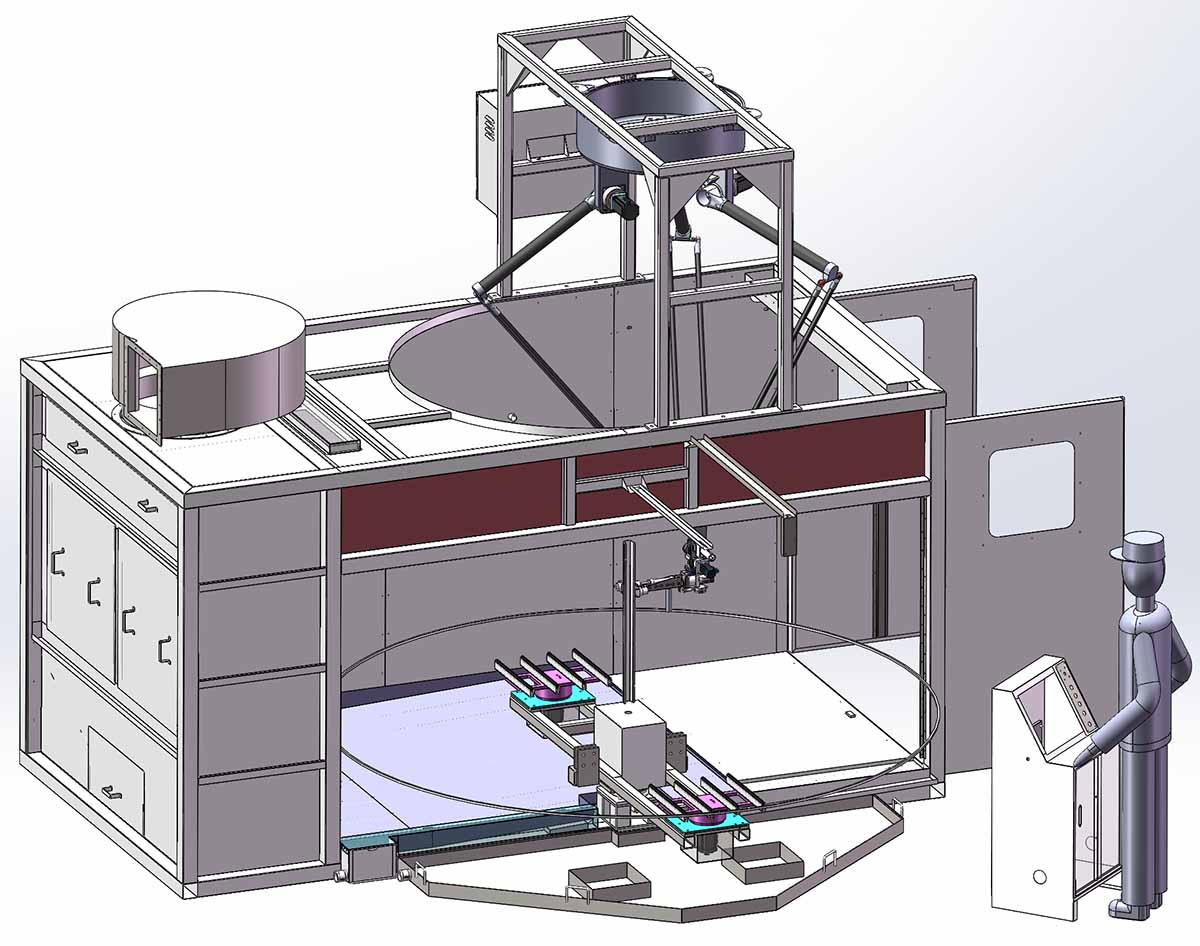

TR-2000T spraying workstation is a workstation independently developed by Xinke Intelligent from structure to controller and software algorithm. It is widely used in bathtub glass fiber reinforced plastic spraying and ceramic glazing spraying. This product is the largest parallel-series hybrid robot in China, and it is also the first in China. The system is based on a real-time linux system, and the communication uses the ethercat industrial bus. Through the self-developed high-performance motion control algorithm and dynamics and bus-based torque control, the suspension and drag teaching are realized. Due to the particularity of the structure, it is also the softest in China. drag the teaching robot. The drag-and-drop teaching is realized through ultra-light suspension control, and then reproduced through motion control. The entire structure and system are completely independent innovation and development.

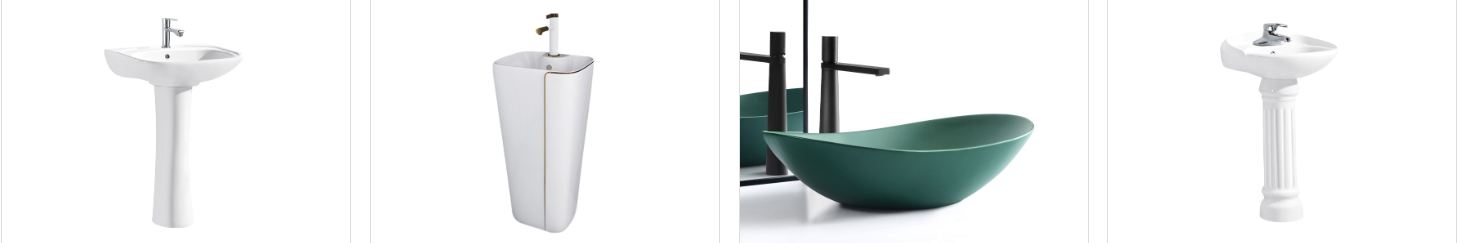

Through 3 years of training, the product has occupied more than 70% market share in the ceramic sanitary ware industry, and has won wide acclaim in the market.

*Spray more comprehensively
The spraying area can reach 99.99%, 360 degrees without dead angle spraying

*Good film performance
Ensure film performance and uniformity through coordinated control

*High spraying efficiency
24 hours of uninterrupted work, high spraying efficiency

*Machine durable
Imported materials are used for key components, with a service life of more than 5-6 years

*Easy to use
No need for professional engineers to operate, learn 5 minutes to get started by "drag to teach" feature!

*Cost-effective
The fastest 1 year recovery of equipment costs

Product configuration:

Parallel robot Xinke self-made, carbon fiber rod servo motor combination
Positioner Xinke self-made, RV reducer, self-made stainless steel frame combination
Airbrush Iwata (tentative)
Servo motor Inovance
Robot reducer 1/2/3 axis with Titanium Komag reducer, 4/5/6 axis with Hamernaco
AirTAC pneumatic components (including cylinders and related joints used)
Other electrical components Delixi, Izumi
The main body of the cabinet is self-made by Xinke, and the whole sus304 is welded.
