Hot Sale 4-Axis Scara Robot to replace EPSON scara robot

OEM Scara Robots are designed for the factory with electric components assembling such as Samsung, Foxconn, LG and Canon etc.
  • Item No.:

    TR600B
  • Payment:

    FOB
  • Product origin:

    China
  • Shipping port:

    ShenZhen ports
  • Lead Time:

    15 days
  • Product details

Scara Robot Features:

Adapted to industrial occasions, capable of stable long-term trouble-free operation;
Capable of mass production;
The price is adapted to China's national conditions and meets the needs of corporate cost accounting;
It is suitable for simple and repeated small load handling stations in enterprises, with high efficiency and cost savings;
Adopt LBD high-performance controller, which can control the robot to realize high-speed point movement, space linear interpolation movement, space circular interpolation and other functions;
The system has strong scalability, simple parameter configuration and easy maintenance;
Robot functional components based on high-performance processing chips ensure real-time control and scheduling of the system, and realize the linkage and interpolation of multiple servo functional components;
The system interface is simple and generous, providing rich display and monitoring information;
The robot language instruction system is easy to learn and can meet most industrial needs.
Scara Robots Applications:

Metal processing industry: blanking on punch, CNC loading and unloading, workpiece grinding, deburring;
Electronic product industry: assembly, testing and handling of IC chips, spot welding, PCBA soldering, gluing, screwing, plug-in, workpiece grinding;
Automobile and motorcycle parts industry: handling, coating, spot welding;
LCD / LED and glass industry: handling of glass plates, assembly of LCM modules, handling of silicon wafers and displays;
Laser industry: spot welding, cutting;
Home appliance industry: assembly, handling and screwing of home appliances;
Research areas: student teaching, school scientific research and development.

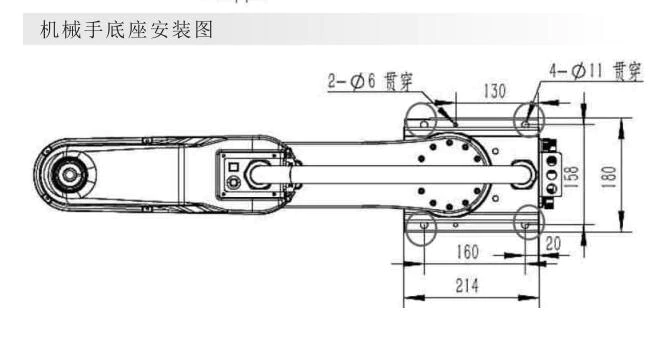

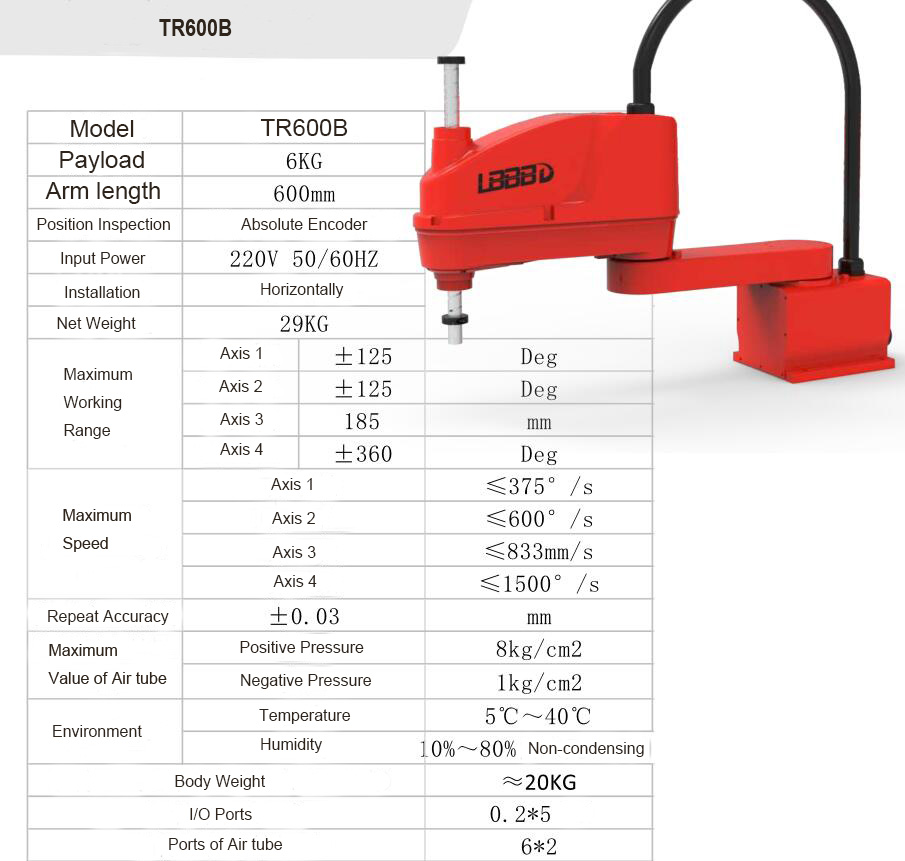

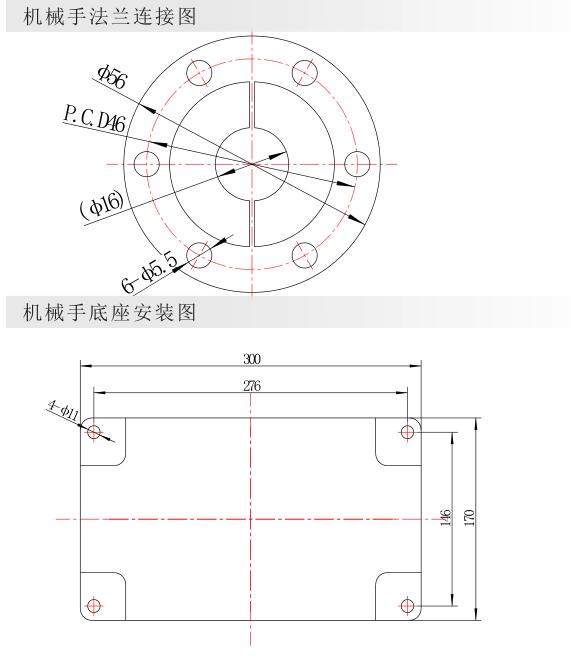

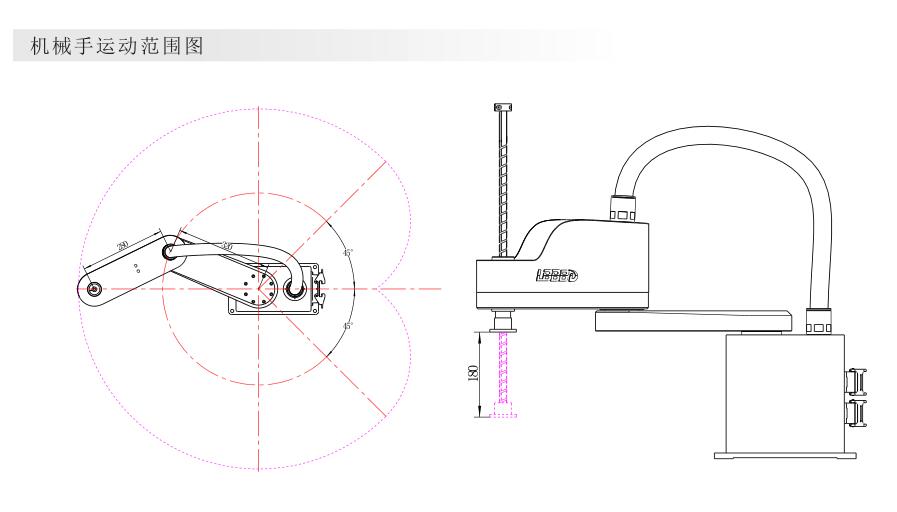

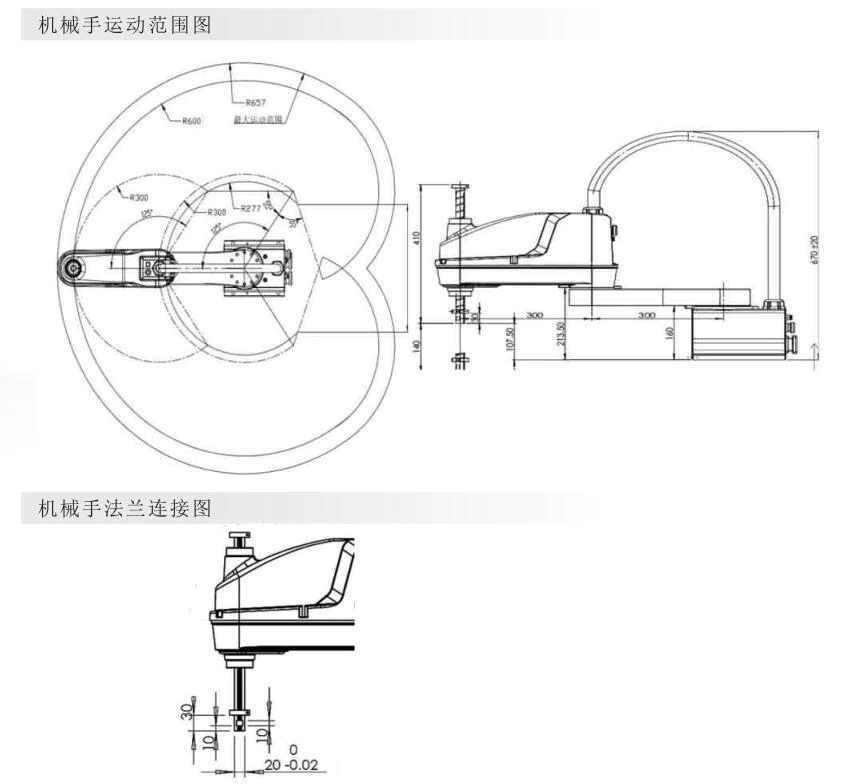

TR600B

QQ截图20191227224115

QQ截图20191227224226

Scara1
