High performance Delta 3D printer by aluminium frame

Delta 3D printers are designed for PE/PVC material parts printing, suitable for toy factory makers
  • Item No.:

    TRAN3DP
  • Payment:

    FOB
  • Product origin:

    China
  • Color:

    Silver
  • Shipping port:

    ShenZhen ports
  • Lead Time:

    7-14
  • Min order:

    5
  • Product details

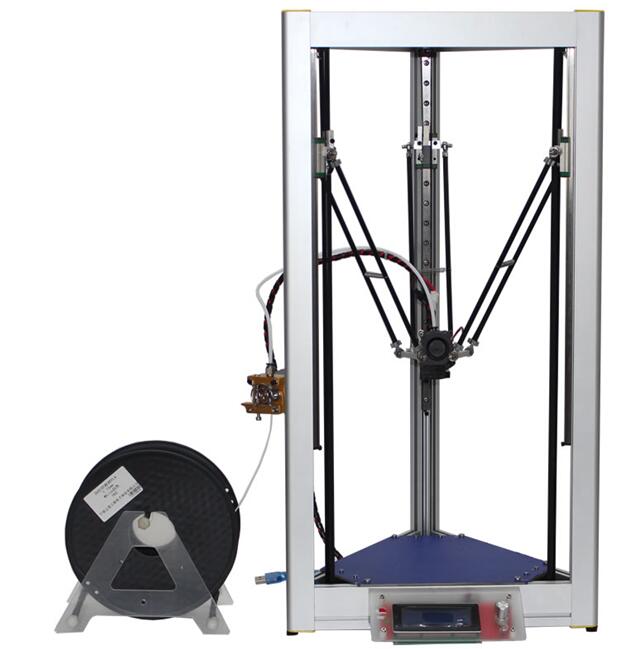

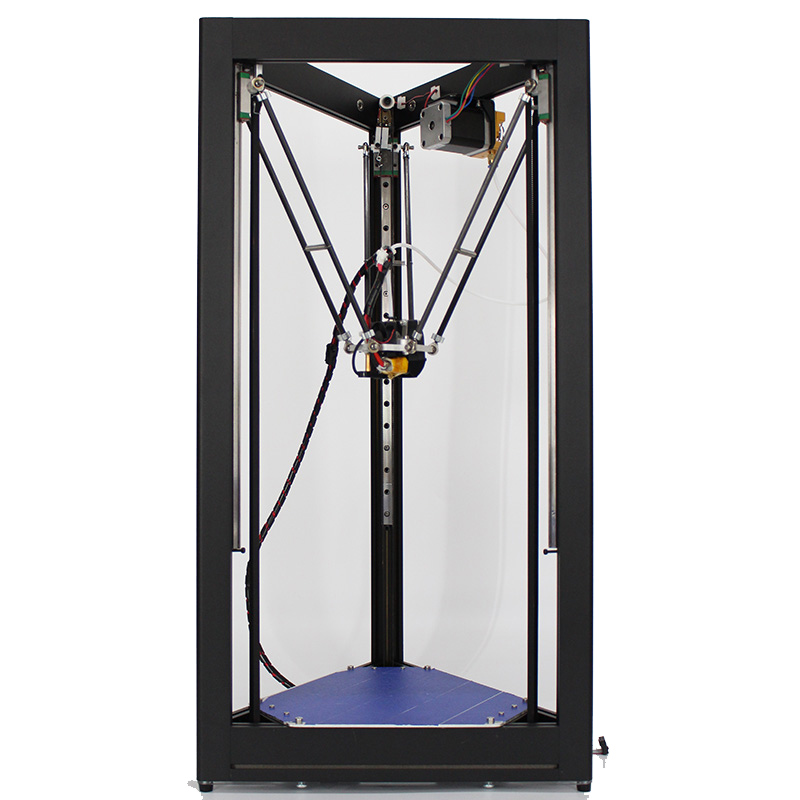

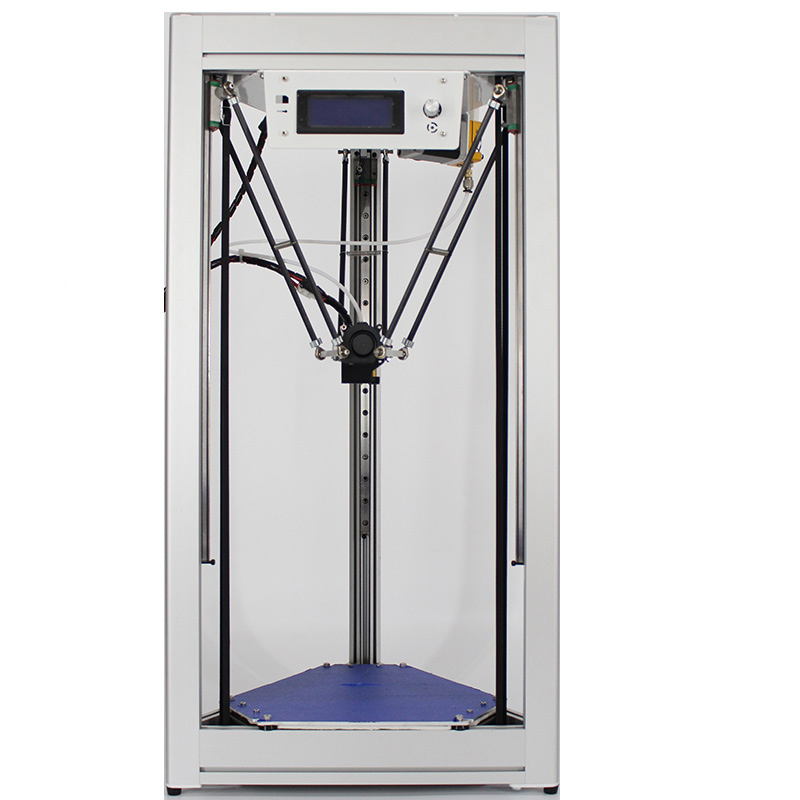

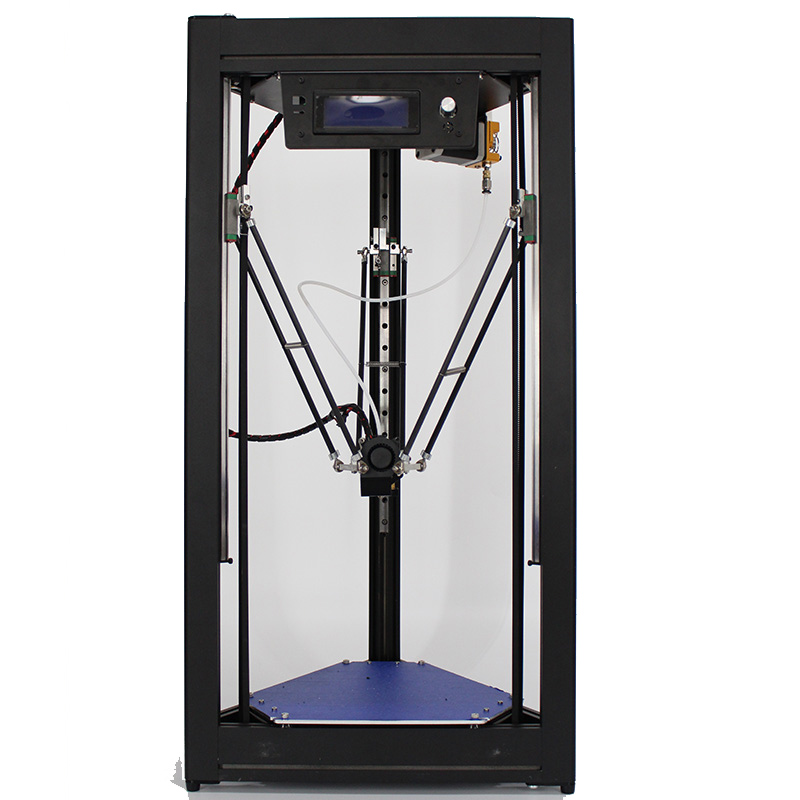

Delta3D Printer

QQ20180824185615


It is made of stainless steel plate body, which is more stable and reliable. The print size is large, up to a diameter of 200 and a height of 300 mm. The model is equipped with an automatic leveling sensor, and the leveling is very simple. Print faster, saving you valuable time.

All the parts of the machine are made of high-quality components to ensure the reliability and stability of the equipment for a long time. It is your best choice.

Print specifications Physical specifications

Molding Technology: Fused Deposition (FFF) Outer Packing: 40*40*75CM

Molding volume: bottom diameter 200MM height 300MM Product size: 35*35*70 M

Printing accuracy: 0.05-0.4MM Product Net weight: 10KG

Positioning accuracy: X, Y, Z 0.05MM Gross weight: 12KG

Consumable specifications: 1.75MM PLA Temperature

Nozzle diameter: 0.4MM Operating temperature: 15°C-35°C

Production Size: 200mm(diameter)X300mm(height) Storage temperature: 0°C-35°C

Software package

Control software: CURA 14.12 Voltage: AC100-240V 50-60HZ

File format: STL, AMF, OBJ Current: DC24V 5A

Operating system: WINDOWS 7 MAC OSX

Printing speed:

When printing: 20-250MM/s

When moving: 300MM/S

Mechanical structure:

Structure: aluminum alloy parts

Housing: Acrylic sheet

Hot bed: 3MM 6 series aluminum alloy hot bed

Stepper motor: 1.8 degree step angle 1/16 subdivision

Guide rail: industrial grade linear guide

_20190227110537

_20190227105716

_20190227110543
